Gigabyte Intel H510M S2 LGA1200 mATX Motherboard

In stock
Motherboard
Gigabyte
RM369.00 RM349.00
-5%
RM349.00
customers are viewing this product

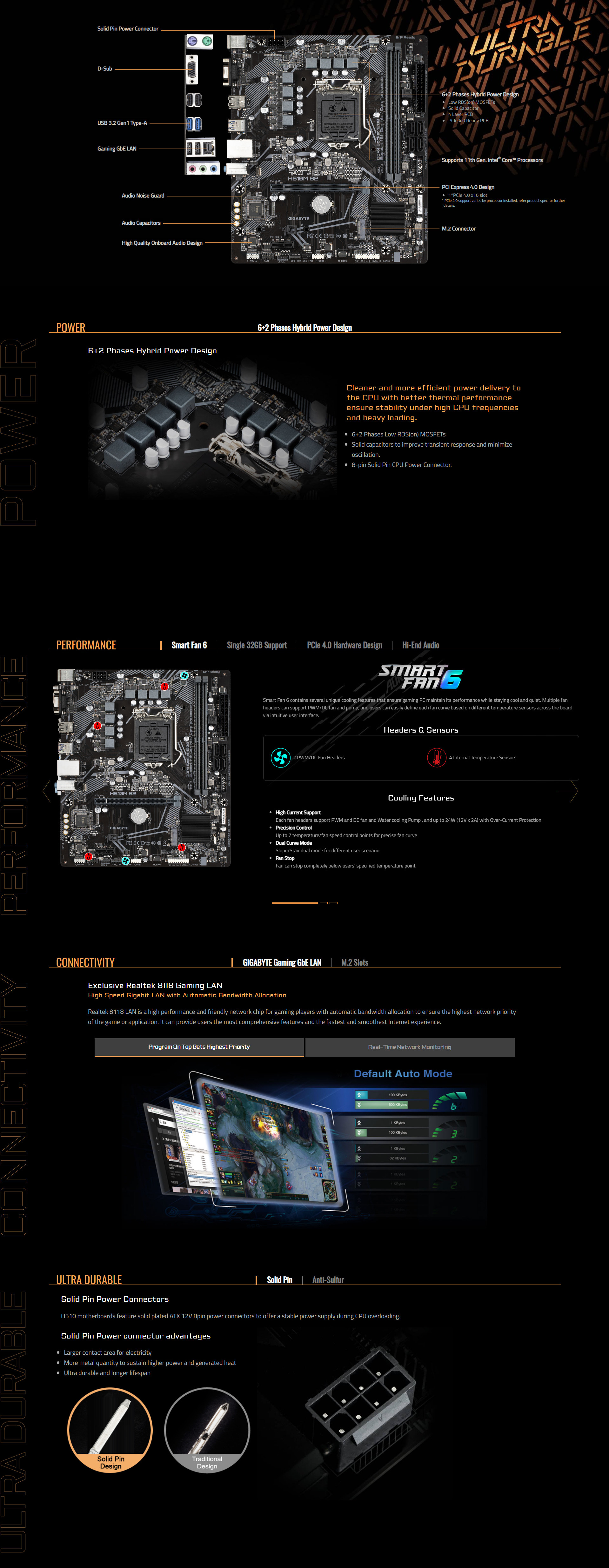

Overview:



Supports 11th and 10th Gen Intel® Core™ Series Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

High Quality Audio Capacitors and Audio Noise

Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

GIGABYTE APP Center, Simple and Easy Use

Anti-Sulfur Resistors Design





Specification:



CPU

LGA1200 package:

11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors

10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors

L3 cache varies with CPU



Chipset

Intel® H510 Express Chipset



Memory

1th Generation Intel® Core™ i9/i7/i5 processors:

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:

Support for DDR4 2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules



Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz



Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel



LAN

Realtek® GbE LAN chip(1000/100 Mbit)



Expansion Slots

1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*

* Supported by 11th Generation processors only.

1 x PCI Express x1 slot

(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)



Storage Interface

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.



USB

Chipset:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)



Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper



Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks



I/O Controller

iTE® I/O Controller Chip



H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control





BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0





Unique Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

Ambient LED

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

Smart Backup

System Information Viewer

Support for Q-Flash

Support for Xpress Install





Bundled Software

Norton® Internet Security (OEM version)

Realtek® 8118 Gaming LAN Bandwidth Control Utility





Operating System

Support for Windows 10 64-bit





Form Factor

Micro ATX Form Factor; 24.4cm x 21.0cm
