Product Highlights
• Supports compatible 14th, 13th and 12th Gen Intel Core processors
• Two DDR4 DIMM slots support up to 64GB of memory
• PCIe 4.0 x16 slot supports modern graphics cards

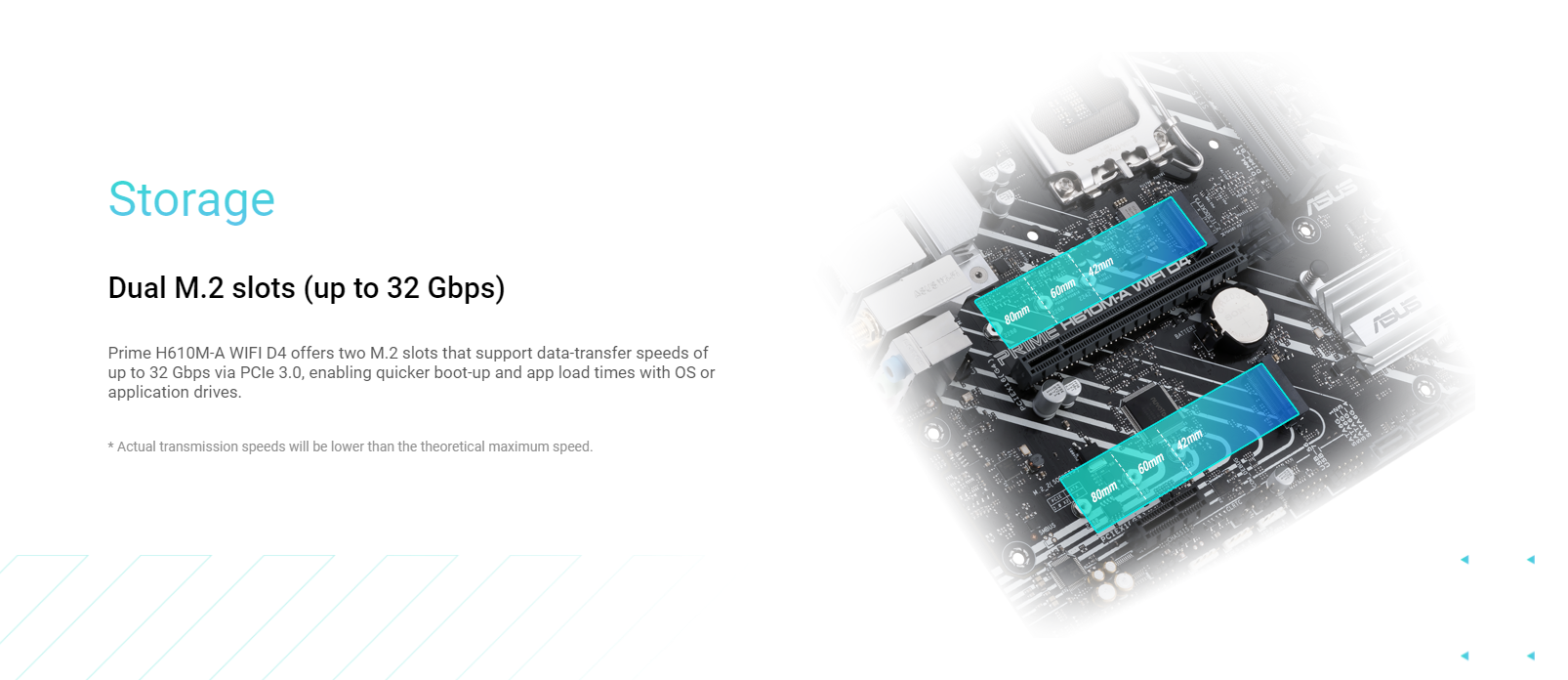

• Dual M.2 slots and four SATA ports provide flexible storage expansion
• Built-in dual-band WiFi 5 and Bluetooth 5.0 connectivity
• Intel Gigabit Ethernet provides stable wired network performance
• DisplayPort and HDMI outputs support resolutions up to 4K at 60Hz
• ASUS 5X Protection III provides enhanced component protection
• Aura Sync headers support customizable RGB lighting

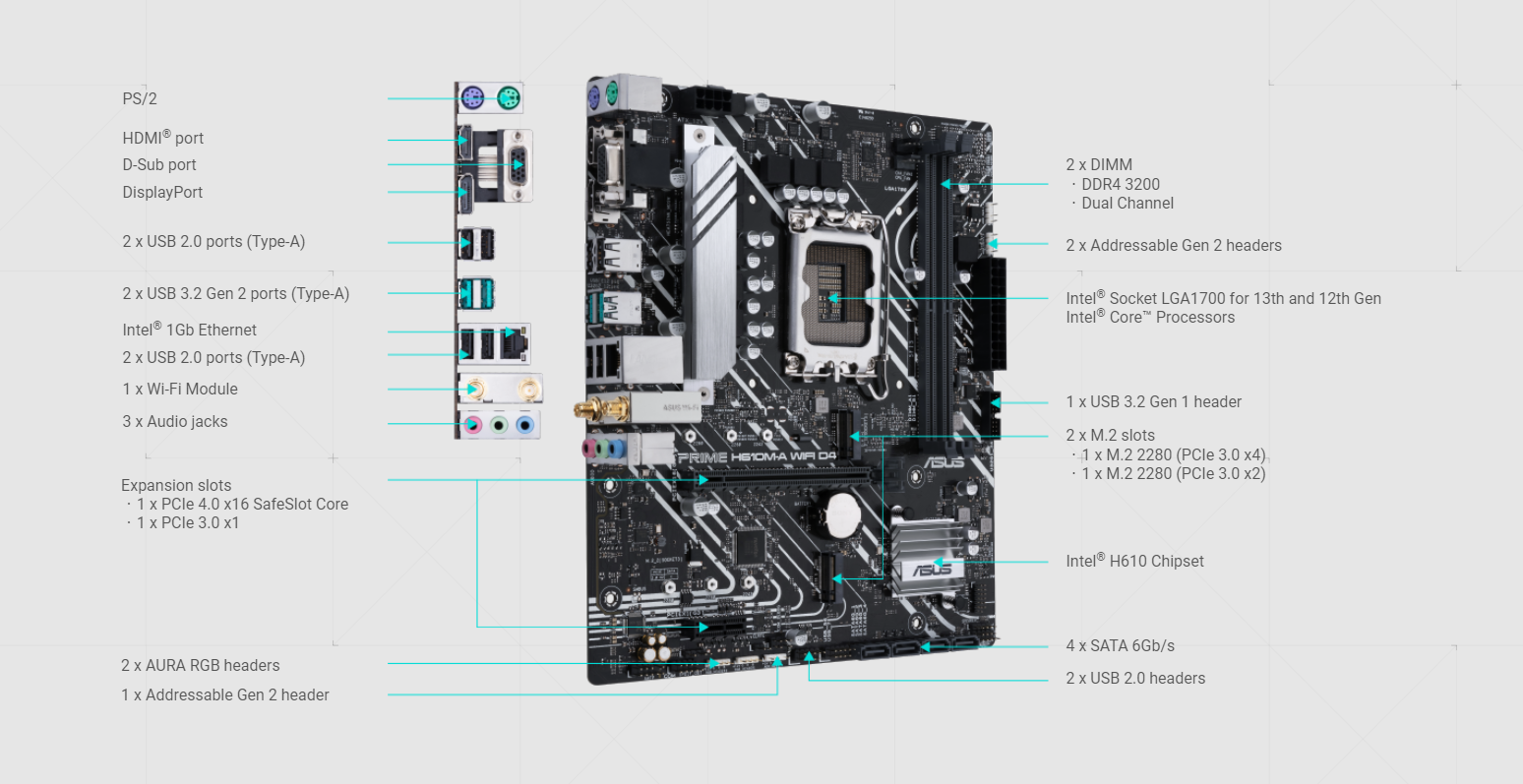

Key Specifications

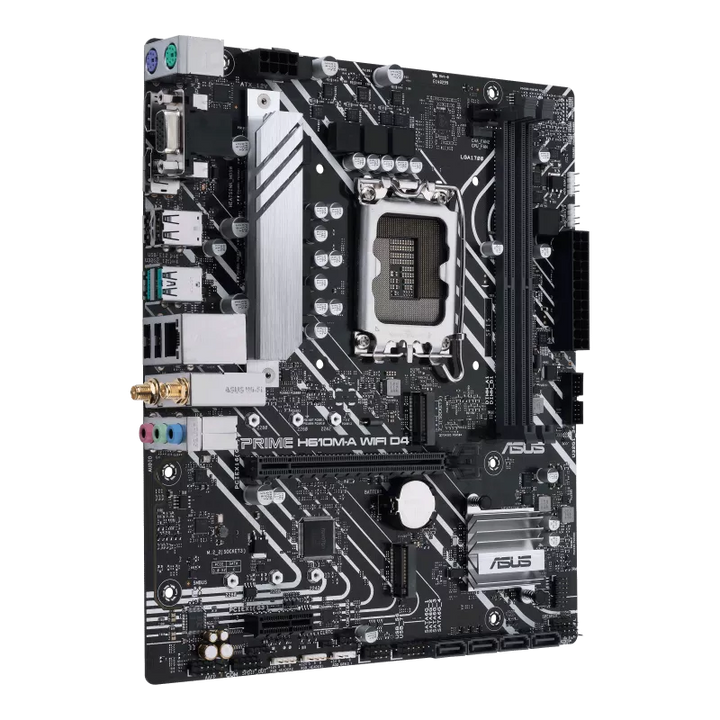

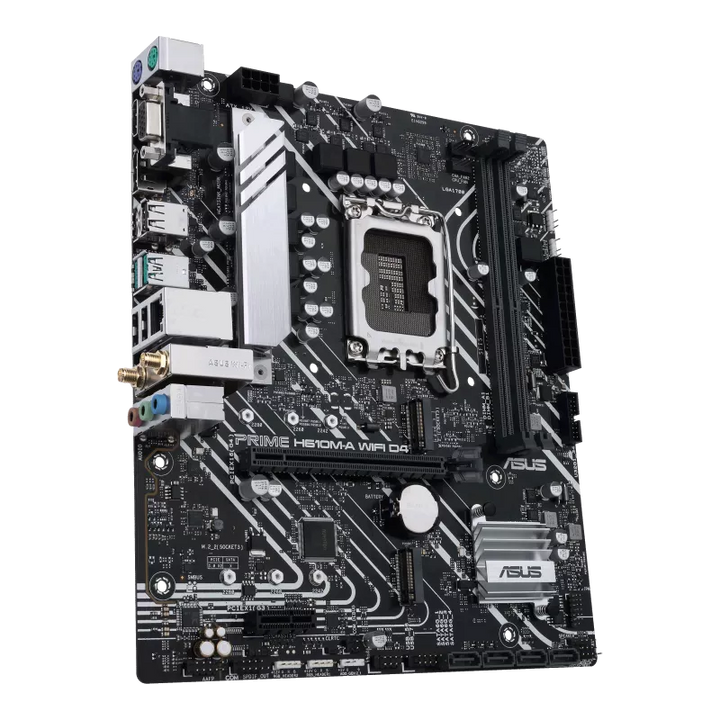

Product Type: Micro-ATX Motherboard

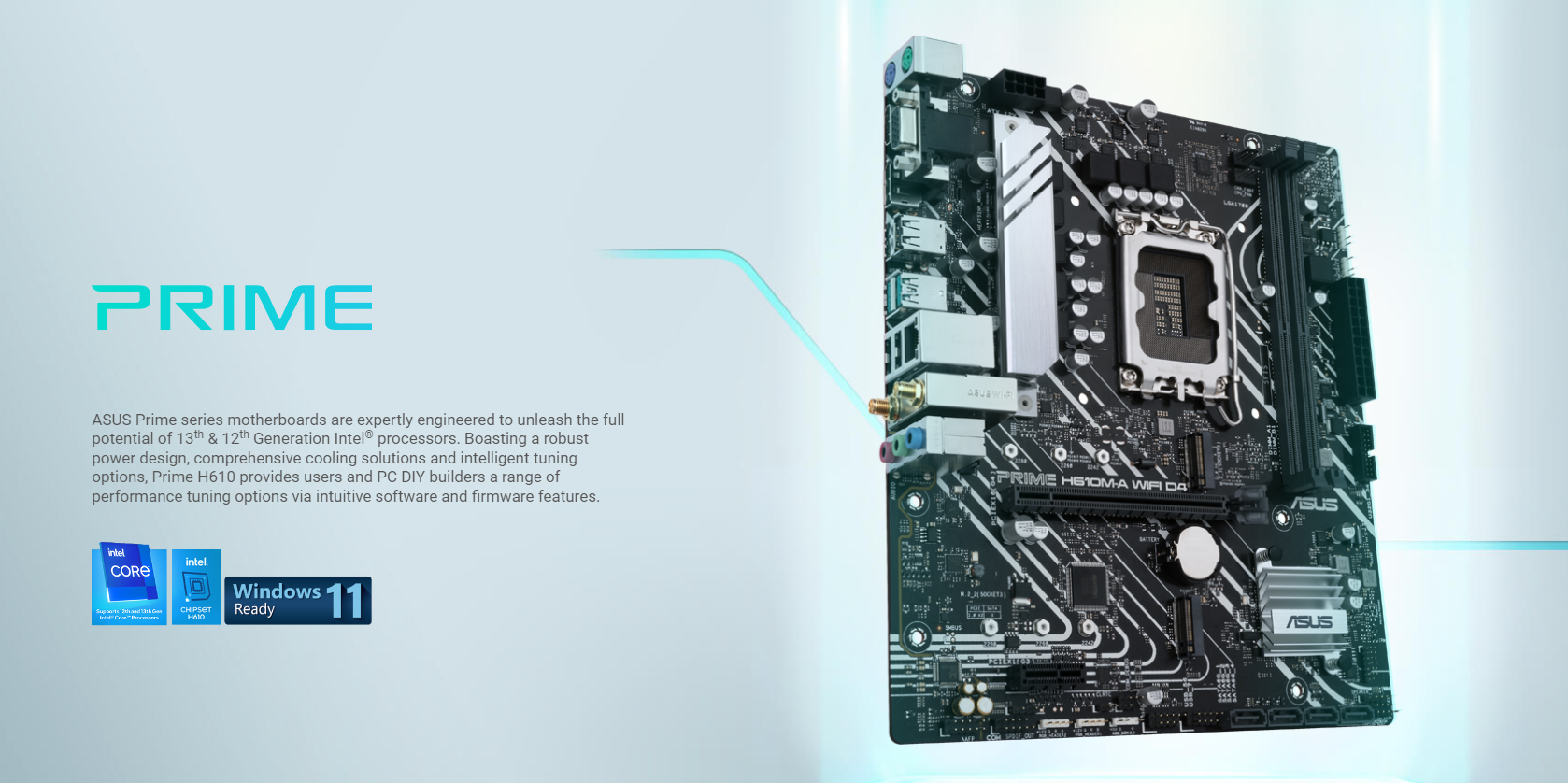

Model: PRIME H610M-A WIFI D4
CPU Socket: Intel LGA1700
Supported Processors: Intel Core 14th, 13th and 12th Gen, Pentium Gold and Celeron Processors
Chipset: Intel H610
Memory Slots: 2 x DDR4 DIMM
Maximum Memory: 64GB
Memory Speed: Up to DDR4 3200MHz
Memory Architecture: Dual-Channel
Intel XMP Support: Yes

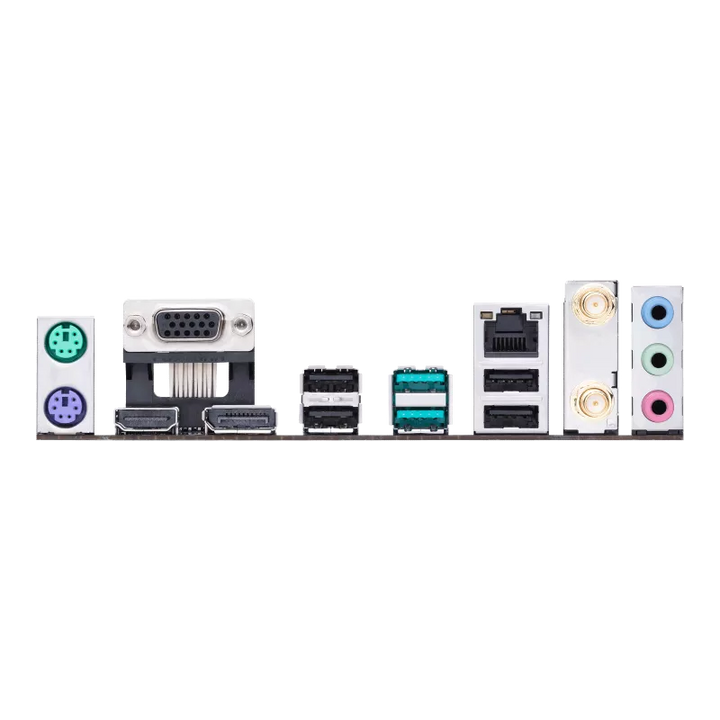

Graphics Outputs: 1 x DisplayPort 1.4, 1 x HDMI 2.1 and 1 x D-Sub
Maximum Display Resolution: Up to 4K at 60Hz via DisplayPort or HDMI
Expansion Slots: 1 x PCIe 4.0 x16 and 1 x PCIe 3.0 x1
M.2 Slots: 2
M.2_1 Support: PCIe 3.0 x4, Type 2242 / 2260 / 2280
M.2_2 Support: PCIe 3.0 x2, Type 2242 / 2260 / 2280
SATA Ports: 4 x SATA 6Gbps
Ethernet: Intel 1Gb Ethernet
Wireless Connectivity: Dual-Band WiFi 5
Bluetooth: Bluetooth 5.0
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Rear USB Ports: 2 x USB 3.2 Gen 2 Type-A and 4 x USB 2.0 Type-A
Front USB Support: 2 x USB 3.2 Gen 1 and 3 x USB 2.0
RGB Headers: 2 x Aura RGB Headers
Addressable Headers: 3 x Addressable Gen 2 Headers
BIOS: 128Mb Flash ROM, UEFI AMI BIOS
Supported Operating Systems: Windows 10 64-Bit and Windows 11 64-Bit
Form Factor: Micro-ATX
Size & Weight
Dimensions: 244 x 211 mm
Weight: 815 g

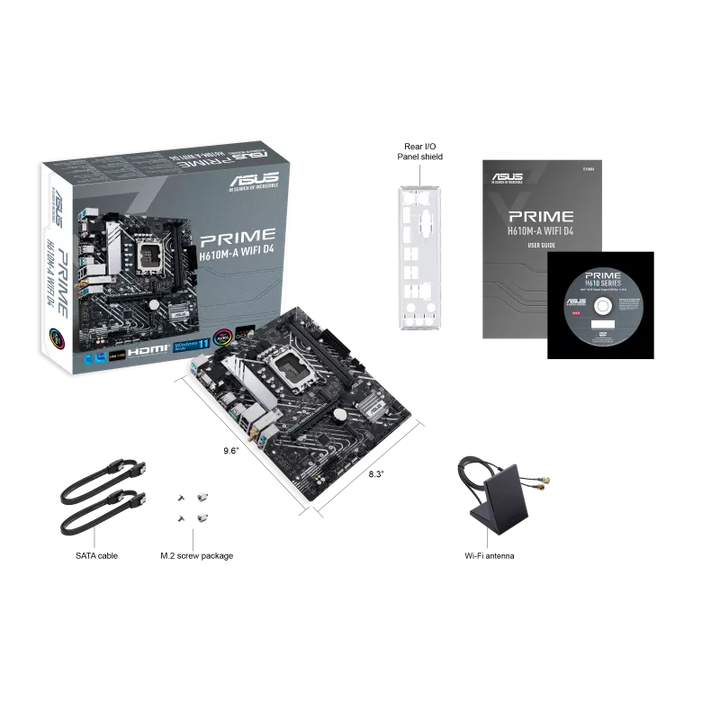

What’s in the Box
• ASUS PRIME H610M-A WIFI D4 Motherboard
• ASUS WiFi Moving Antenna
• 2 x SATA 6Gbps Cables
• I/O Shield
• M.2 SSD Screw Package
• Support DVD
• User Guide
Warranty: 3 Year Warranty
