- The 144Hz refresh rate provides an instant, tangible improvement in image smoothness
- The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles
- Wide color gamut, 85% NTSC, It meets the designer's demand of image texture
- 1ms fast response time with no image blurring or ghosting
- Low blue light technology can support a comfortable viewing experience.

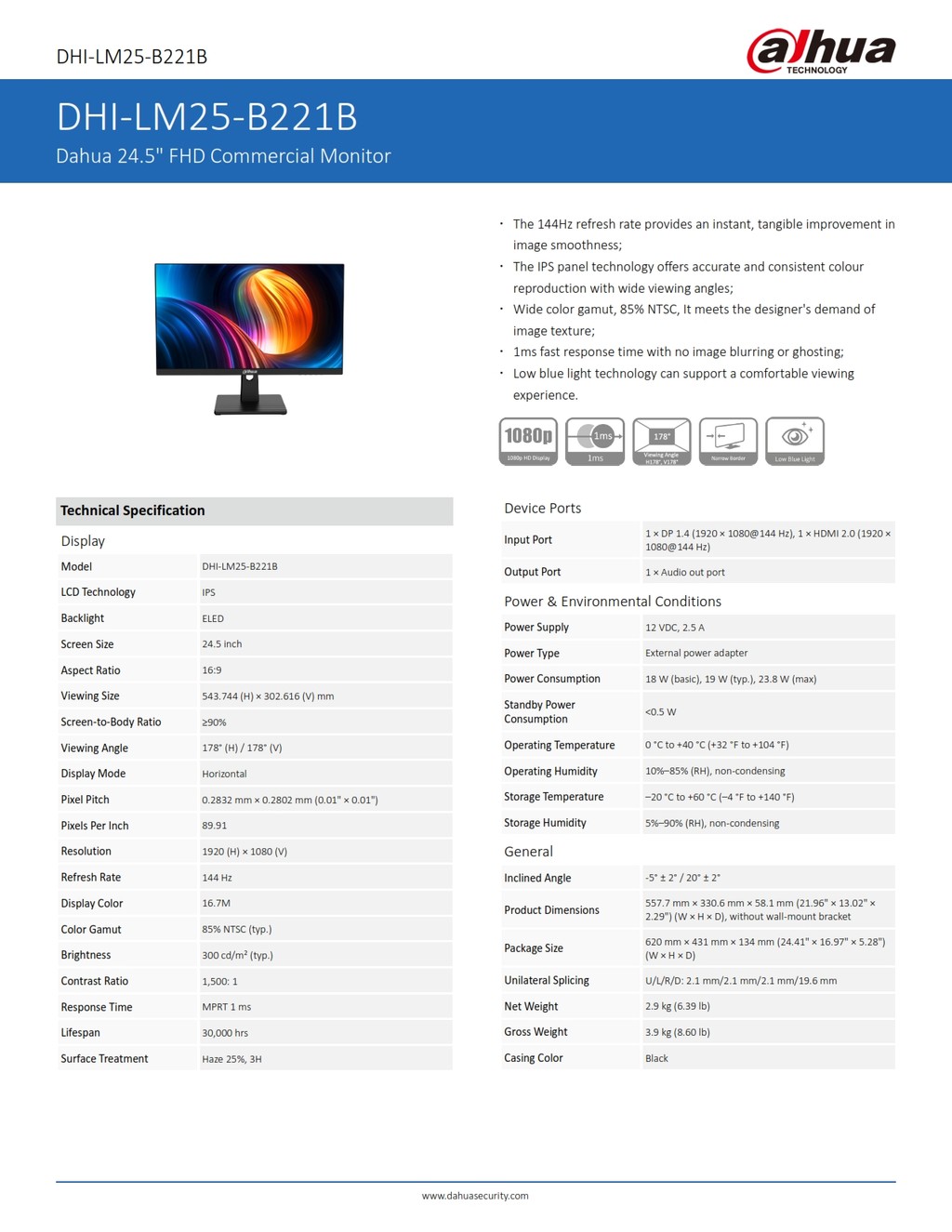

Display
Model: DHI-LM25-B221B
LCD Technology: IPS
Backlight: ELED
Screen Size: 24.5 inch
Aspect Ratio: 16:9
Viewing Size: 543.744 (H) × 302.616 (V) mm
Screen-to-Body Ratio: ≥90%
Viewing Angle: 178° (H) / 178° (V)
Display Mode: Horizontal
Pixel Pitch: 0.2832 mm × 0.2802 mm (0.01" × 0.01")
Pixels Per Inch: 89.91
Resolution: 1920 (H) × 1080 (V)
Refresh Rate: 144 Hz
Display Color: 16.7M
Color Gamut: 85% NTSC (typ.)
Brightness: 300 cd/m² (typ.)
Contrast Ratio: 1,500: 1
Response Time: MPRT 1 ms
Lifespan: 30,000 hrs
Surface Treatment: Haze 25%, 3H
Device Ports
Input Port: 1 × DP 1.4 (1920 × 1080@144 Hz), 1 × HDMI 2.0 (1920 × 1080@144 Hz)
Output Port: 1 × Audio out port
Power & Environmental Conditions
Power Supply: 12 VDC, 2.5 A
Power Type: External power adapter
Power Consumption: 18 W (basic), 19 W (typ.), 23.8 W (max)
Standby Power Consumption: <0.5 W
Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity: 10%–85% (RH), non-condensing
Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Storage Humidity: 5%–90% (RH), non-condensing

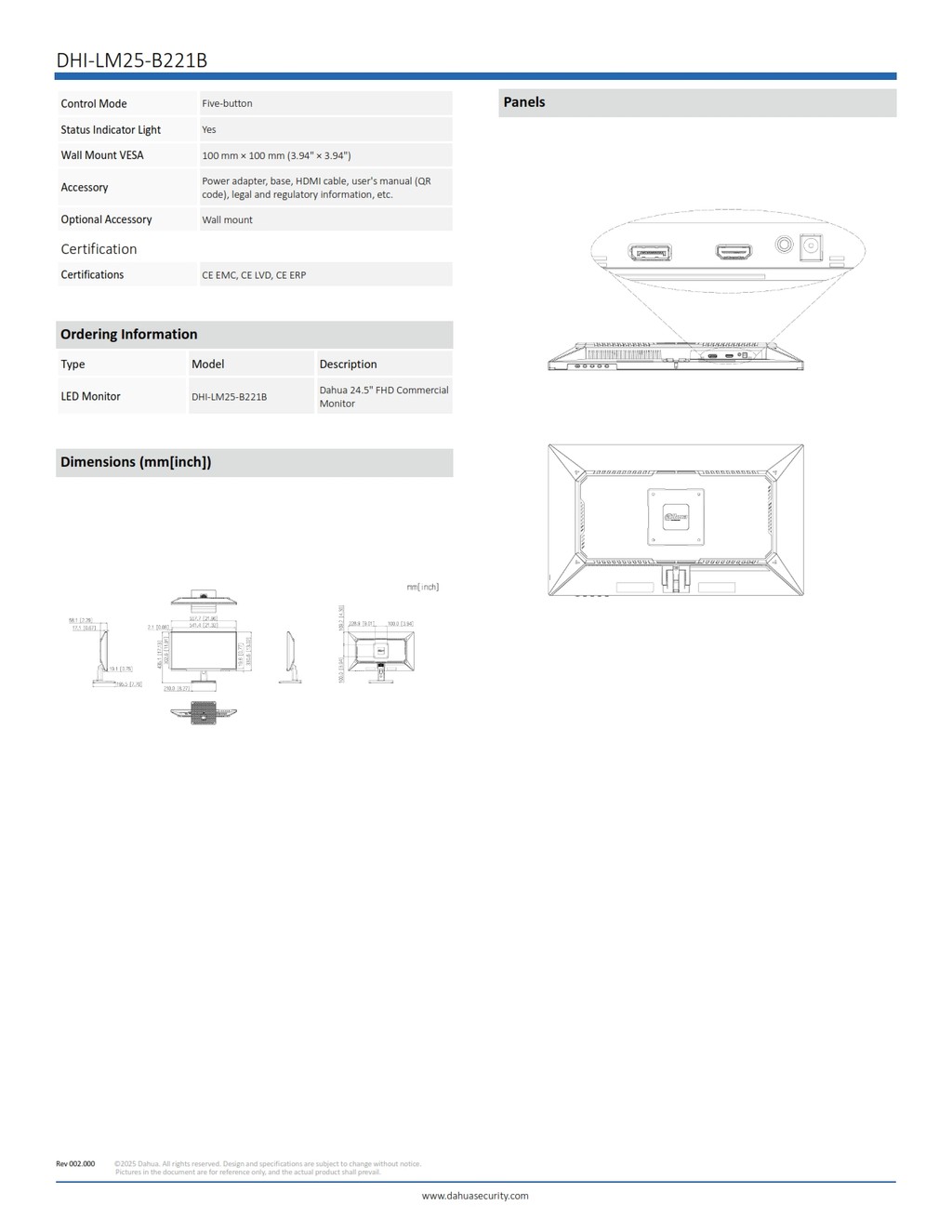

General
Inclined Angle: -5° ± 2° / 20° ± 2°
Product Dimensions: 557.7 mm × 330.6 mm × 58.1 mm (21.96" × 13.02" × 2.29") (W × H × D), without wall-mount bracket
Package Size: 620 mm × 431 mm × 134 mm (24.41" × 16.97" × 5.28") (W × H × D)
Unilateral Splicing: U/L/R/D: 2.1 mm/2.1 mm/2.1 mm/19.6 mm
Net Weight: 2.9 kg (6.39 lb)
Gross Weight: 3.9 kg (8.60 lb)
Casing Color: Black
Control Mode: Five-button
Status Indicator Light: Yes
Wall Mount VESA: 100 mm × 100 mm (3.94" × 3.94")
Accessory: Power adapter, base, HDMI cable, user's manual (QR code), legal and regulatory information, etc.
Optional Accessory: Wall mount

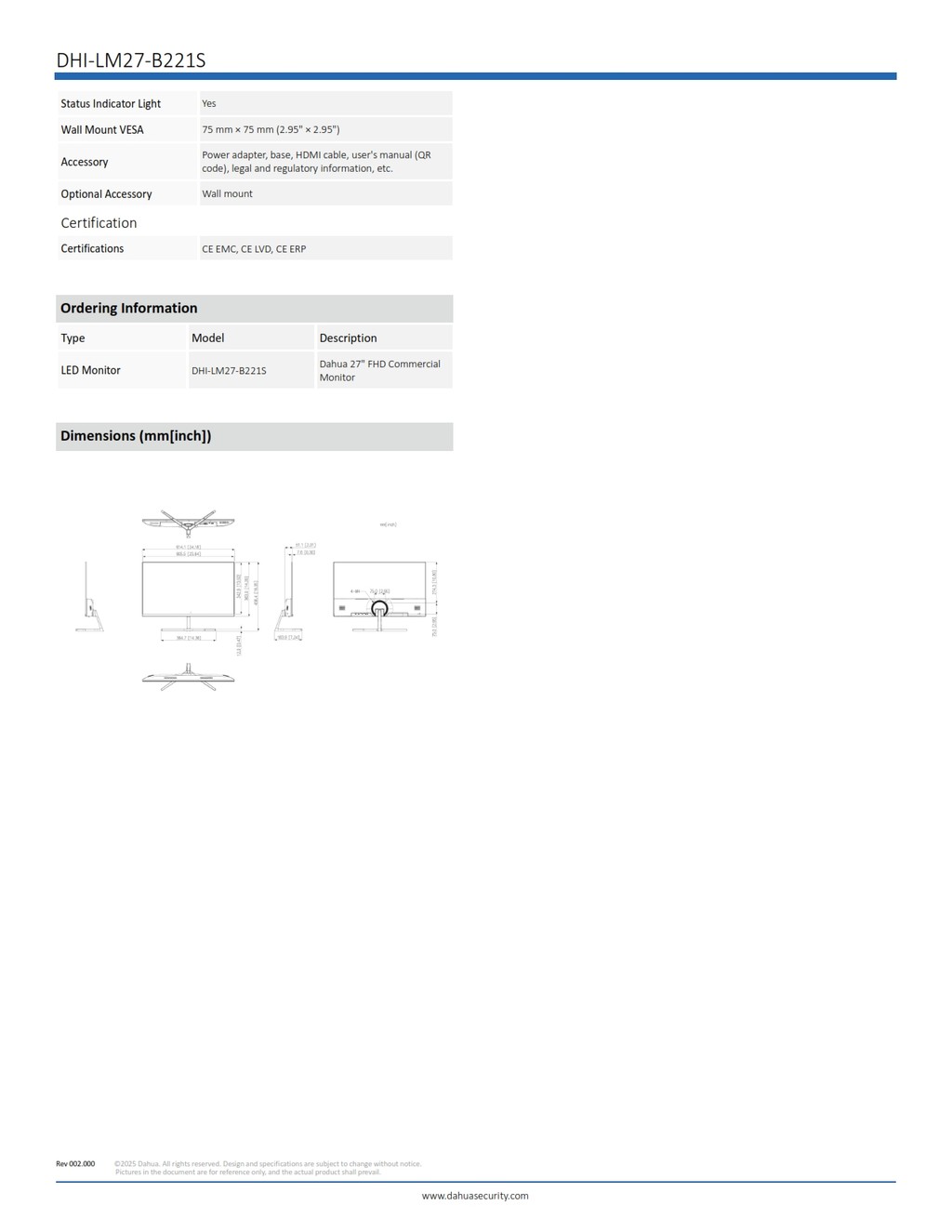

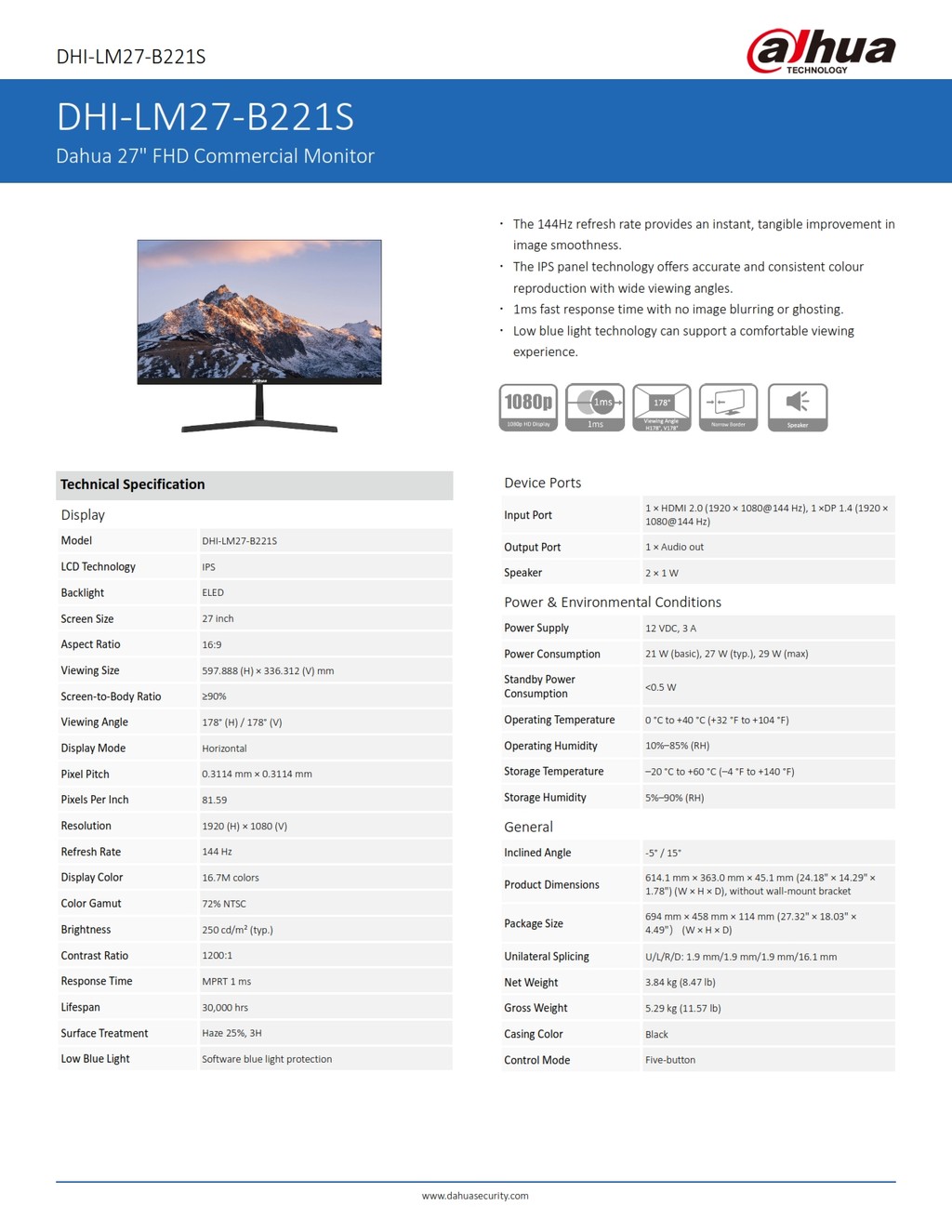

Display
Model: DHI-LM27-B221S
LCD Technology: IPS
Backlight: ELED
Screen Size: 27 inch
Aspect Ratio: 16:9
Viewing Size: 597.888 (H) × 336.312 (V) mm
Screen-to-Body Ratio: ≥90%
Viewing Angle: 178° (H) / 178° (V)
Display Mode: Horizontal
Pixel Pitch: 0.3114 mm × 0.3114 mm
Pixels Per Inch: 81.59
Resolution: 1920 (H) × 1080 (V)
Refresh Rate: 144 Hz
Display Color: 16.7M
Color Gamut: 72% NTSC
Brightness: 250 cd/m² (typ.)
Contrast Ratio: 1,200: 1
Response Time: MPRT 1 ms
Lifespan: 30,000 hrs
Surface Treatment: Haze 25%, 3H
Device Ports
Input Port: 1 × HDMI 2.0 (1920 × 1080@144 Hz), 1 ×DP 1.4 (1920 × 1080@144 Hz)
Output Port: 1 × Audio out port
Power & Environmental Conditions
Power Supply: 12 VDC, 3 A
Power Type: External power adapter
Power Consumption: 21 W (basic), 27 W (typ.), 29 W (max)
Standby Power Consumption: <0.5 W
Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity: 10%–85% (RH), non-condensing
Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Storage Humidity: 5%–90% (RH), non-condensing
General
Inclined Angle: -5° ± 2° / 20° ± 2°
Product Dimensions: 614.1 mm × 363.0 mm × 45.1 mm (24.18" × 14.29" × 1.78") (W × H × D), without wall-mount bracket
Package Size: 694 mm × 458 mm × 114 mm (27.32" × 18.03" × 4.49"） (W × H × D)
Unilateral Splicing: U/L/R/D: 1.9 mm/1.9 mm/1.9 mm/16.1 mm
Net Weight: 3.84 kg (8.47 lb)
Gross Weight: 5.29 kg (11.57 lb)
Casing Color: Black
Control Mode: Five-button
Status Indicator Light: Yes
Wall Mount VESA: 75 mm × 75 mm (2.95" × 2.95")
Accessory: Power adapter, base, HDMI cable, user's manual (QR code), legal and regulatory information, etc.
Optional Accessory: Wall mount
