Technical Specs :-
๐๐๐ :
Support Socket LGA1700 for Intelยฎ Coreโข 14th/ 13th/ 12th Gen Processors, Intelยฎ Pentiumยฎ Gold and Celeronยฎ Processors
ย
๐๐๐๐๐๐๐ :
INTEL B760
ย
๐๐๐๐๐๐ :
2x DDR5, Maximum Memory Capacity 96GB
Memory Support 8000(OC)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
ย
๐๐๐๐๐ ๐๐๐๐๐๐ :
1 x DisplayPort
1 x HDMI port
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***ย Supports 4K@60Hz as specified in HDMI 2.1.
ย
๐๐๐๐๐๐๐๐๐ ๐๐๐๐ :
Intelยฎ CoreTM Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot
Intelยฎ B760 Chipset: 1 x PCIe 4.0 x1 slot
ย
๐๐๐๐๐ :
Realtek 7.1 Surround Sound
ย
๐๐๐ :
1 x Realtek 2.5Gb Ethernet
ย
Wireless & Bluetooth
Wi-Fi 6 (802.11 a/b/g/n/ac/ax), supports 2.4/5GHz frequency band
Bluetoothยฎ v5.3*
ย
๐๐๐๐๐๐๐ :
Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
Intelยฎ Coreโข Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2280ย (supports PCIe 4.0 x4 mode)
Intelยฎ B760 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
* Intelยฎ Rapid Storage Technology supports SATA RAID 0/1.
ย

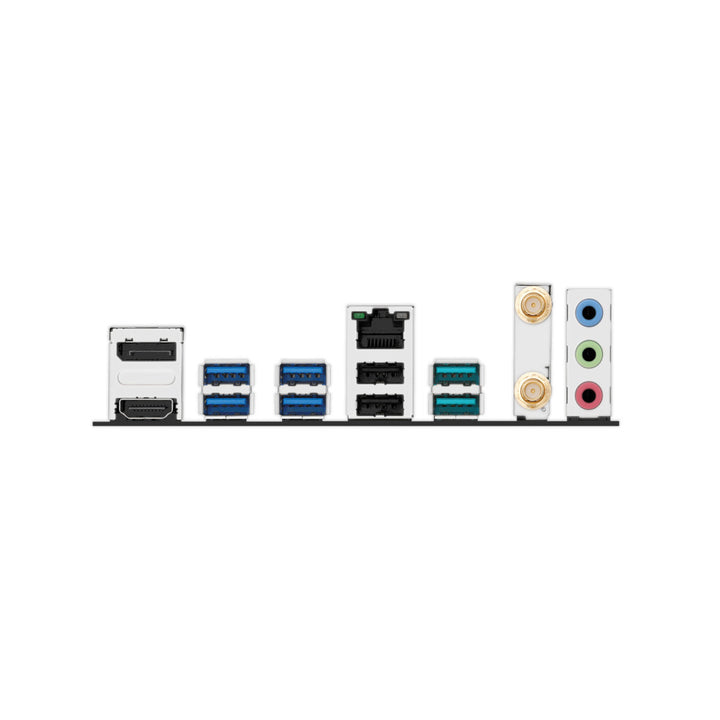

Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMIโข port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
ย
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-Cยฎ )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x Speaker header
1 x 10-1 pin Front System Panel header
ย
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Addressable Gen 2 headers
ย
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ย
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
ย
Manageability
WOL by PME, PXE
ย

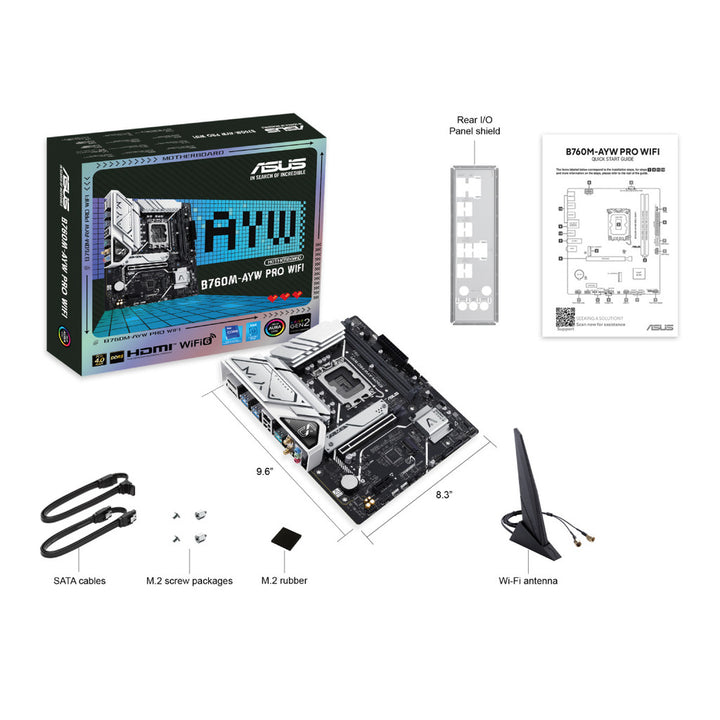

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O shield
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
ย
Operating System
Windowsยฎ 11, Windowsยฎ 10 64-bit
ย
Form Factor
micro-ATX Form Factor
9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
