Product Highlights
• Intel B760 Chipset with LGA 1700 Socket support Intel Core 12th-14th Gen Processors
• Advanced AI PC Ready Design for demanding AI applications and everyday productivity
• DDR4 Dual-Channel Memory Support for reliable system performance
• PCIe 5.0 x16 Slot for high-performance graphics cards
• Dual PCIe 4.0 M.2 Slots for fast NVMe SSD storage
• Realtek 2.5Gb Ethernet for high-speed and stable wired networking
• WiFi 6 Connectivity for fast and reliable wireless performance
• HDMI Output for convenient display connectivity
• ASUS Fan Xpert 2+ with Extreme Quiet Mode for intelligent cooling control
• Micro ATX Form Factor for compact and versatile PC builds
Key Specification:

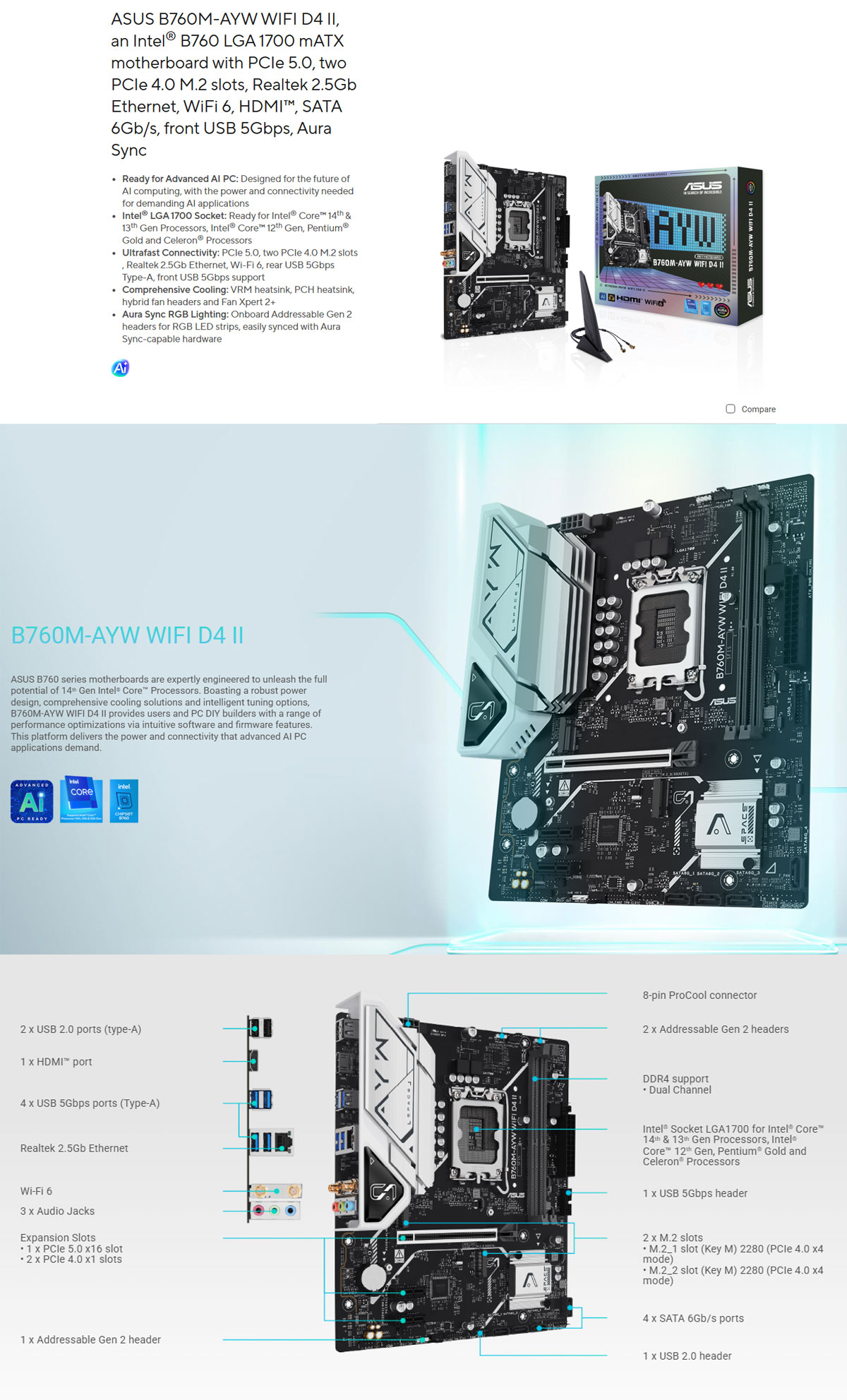

Model: ASUS B760M-AYW WIFI D4 II
CPU Socket: Intel LGA 1700
CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold and Celeron Processors
CPU Technology: Intel Turbo Boost Technology 2.0 / Turbo Boost Max Technology 3.0 (CPU Dependent)
Chipset: Intel B760
Memory Type: DDR4
Memory Slots: 2 x DIMM
Maximum Memory Capacity: 64GB
Memory Speed: Up to 5333 MT/s (OC)
Memory Architecture: Dual Channel
Memory Support: Non-ECC Unbuffered DIMM
Memory Overclocking: Intel Extreme Memory Profile (XMP)
Graphics Output: 1 x HDMI 2.1 (Up to 4K @ 60Hz, CPU Dependent)
Expansion Slots:
• 1 x PCIe 5.0 x16 (Intel Core 14th / 13th / 12th Gen Processors)
• 2 x PCIe 4.0 x1 (Intel B760 Chipset)
Storage Interface:
• 1 x M.2_1 (Type 2280, PCIe 4.0 x4, CPU)
• 1 x M.2_2 (Type 2280, PCIe 4.0 x4, Chipset)
• 4 x SATA 6Gb/s Ports
RAID Support: Intel Rapid Storage Technology, SATA RAID 0 / 1 / 5 / 10
LAN: Realtek 2.5Gb Ethernet
LAN Protection: ASUS LANGuard
Wireless LAN: WiFi 6 (802.11ax)
WiFi Frequency: 2.4GHz / 5GHz
Bluetooth: 5.3 (Module Dependent)
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Playback: Up to 24-bit / 192kHz
Audio Features: Jack Detection / Multi-Streaming / Front Panel Jack Retasking / Audio Shielding / Premium Audio Capacitors / Dedicated Audio PCB Layers
Rear USB Ports:
• 4 x USB 5Gbps Type-A
• 2 x USB 2.0 Type-A
Front USB Support:
• 1 x USB 5Gbps Header (Supports 2 Ports)
• 1 x USB 2.0 Header (Supports 2 Ports)
Back Panel I/O:
• 1 x HDMI
• 4 x USB 5Gbps Type-A
• 2 x USB 2.0 Type-A
• 1 x WiFi Module
• 1 x RJ-45 2.5Gb Ethernet Port
• 3 x Audio Jacks
Internal I/O Connectors:
• 1 x 24-Pin Main Power Connector
• 1 x 8-Pin +12V CPU Power Connector
• 1 x 4-Pin CPU Fan Header
• 2 x 4-Pin Chassis Fan Headers
• 2 x M.2 Slots (Key M)
• 4 x SATA 6Gb/s Ports
• 1 x USB 5Gbps Header
• 1 x USB 2.0 Header
• 3 x Addressable RGB Gen 2 Headers
• 1 x Clear CMOS Header
• 1 x COM Port Header
• 1 x Front Panel Audio Header
• 1 x S/PDIF Out Header
• 1 x Speaker Header
• 1 x SPI TPM Header (14-1 Pin)
• 1 x System Panel Header (10-1 Pin)
ASUS Protection: 5X Protection III (DIGI+ VRM / LANGuard / Overvoltage Protection / SafeSlot / Stainless-Steel Back I/O)
ASUS Q-Design: Q-DIMM / Q-LED Core / Q-Slot
ASUS EZ DIY: ProCool Power Connector

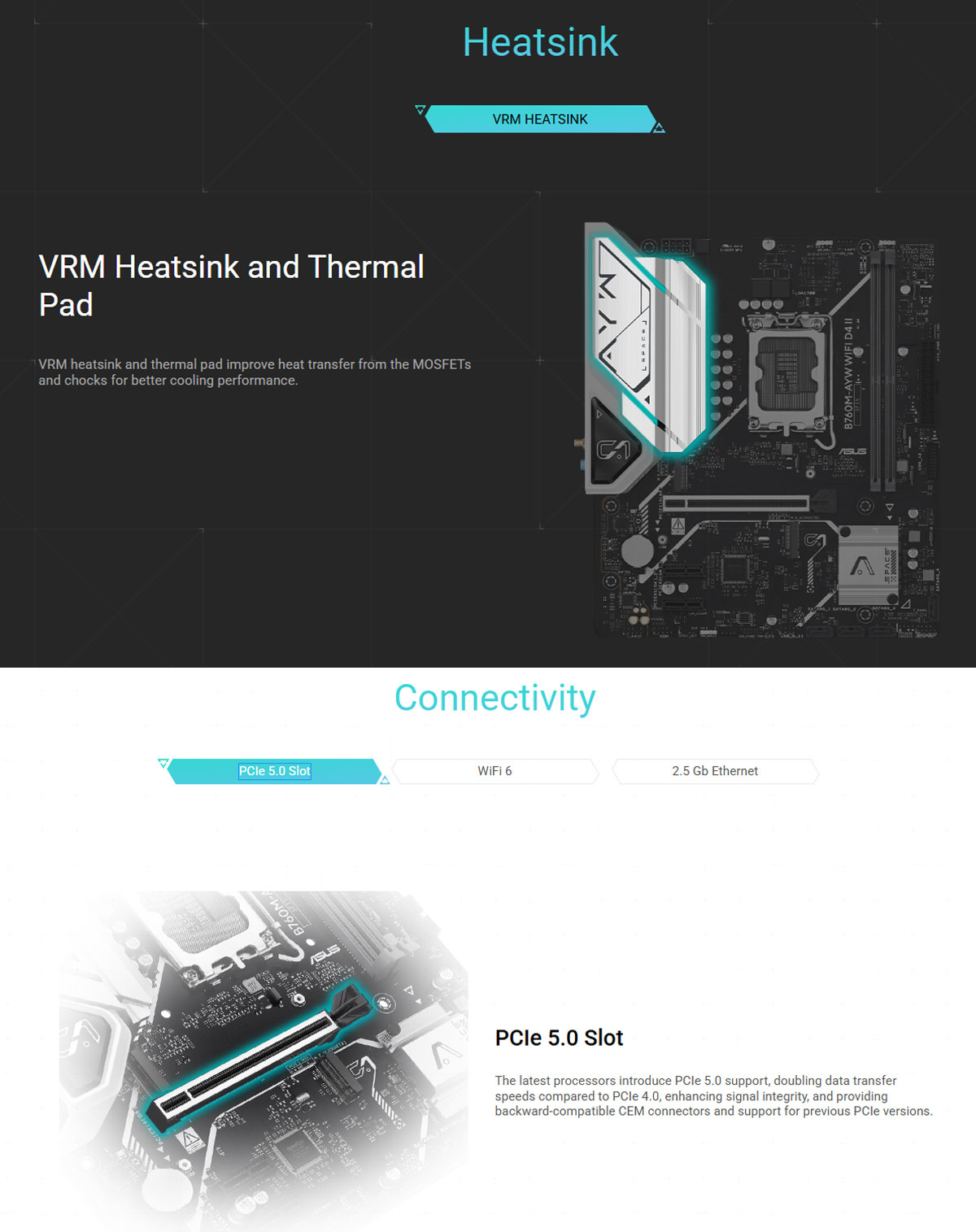

Cooling Features: VRM Heatsink / Fan Xpert 2+
RGB Lighting: ASUS Aura Sync / Addressable RGB Gen 2
Software Support: Armoury Crate / Aura Sync / Fan Xpert 2+ / Two-Way AI Noise Cancellation / ASUS DriverHub / ASUS CPU-Z / AI Suite 3 / DIGI+ VRM / PC Cleaner
Bundled Software: Norton 360 Deluxe (60-Day Trial) / WinRAR (40-Day Trial)
BIOS: 128Mb Flash ROM, UEFI AMI BIOS
BIOS Features: ASUS CrashFree BIOS 3 / ASUS EZ Flash 3 / ASUS UEFI BIOS EZ Mode
Manageability: WOL by PME / PXE
Operating System: Windows 11 / Windows 10 64-bit
Form Factor: Micro ATX (mATX)
Dimensions: 24.4 x 21.1 cm
Warranty: 3 Years Warranty
