Product Highlights

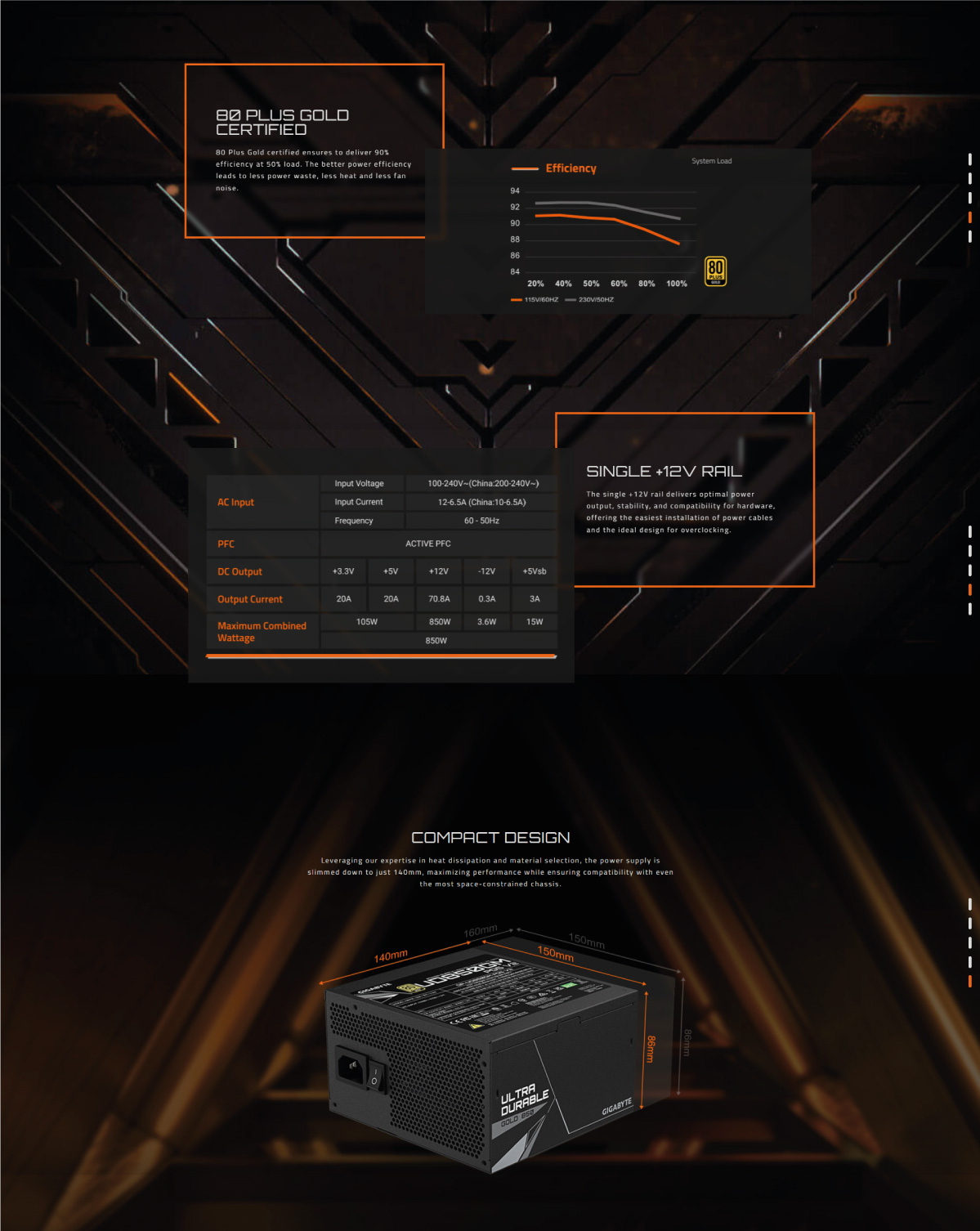

• 80 PLUS Gold certified power supply with ≥90% efficiency under typical load
• Available in 750W, 850W and 1000W options for different PC build requirements
• Intel ATX 12V v3.1 ready for modern gaming PC and workstation builds
• PCIe 12+4 pin connector supports latest high-performance graphics cards

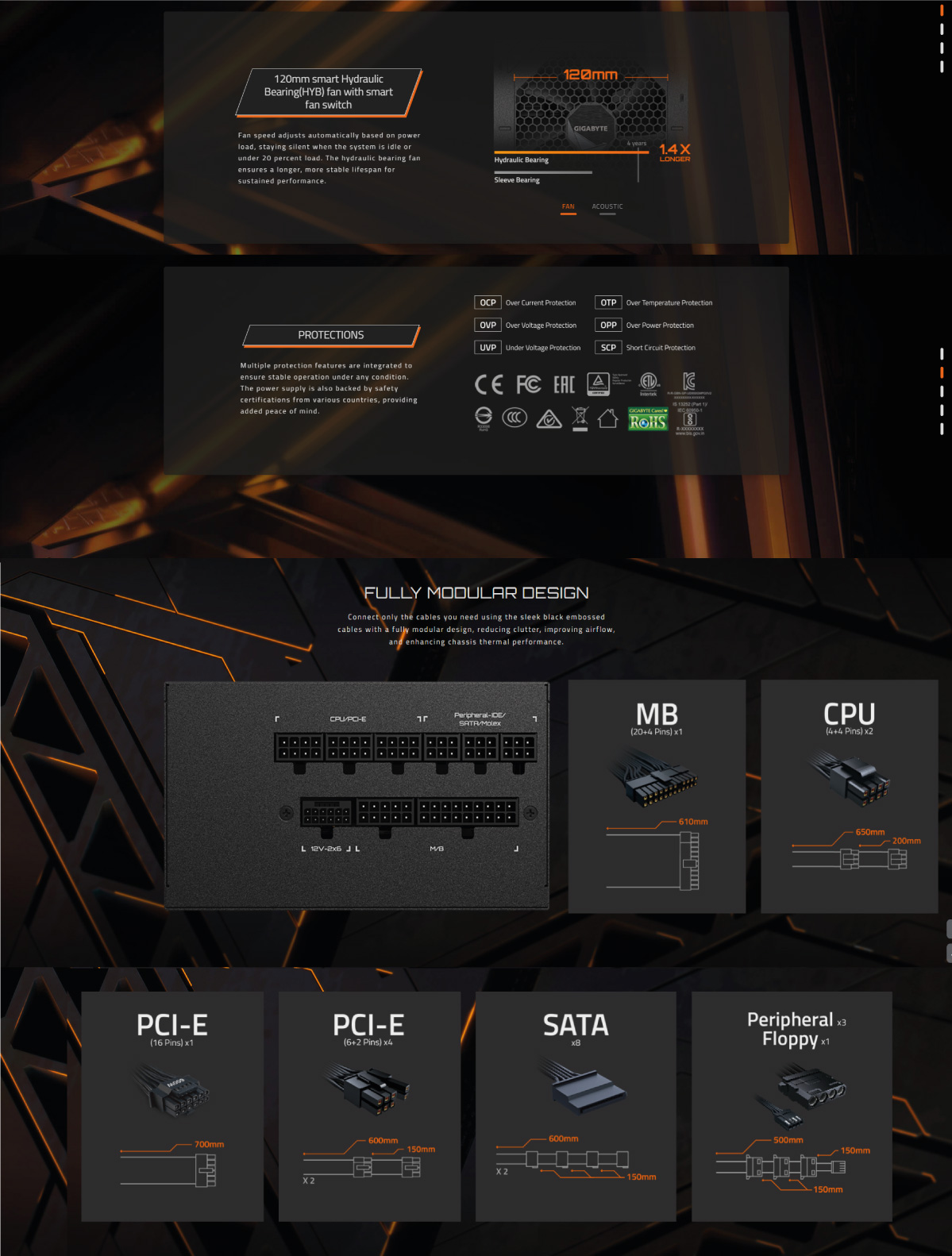

• Full modular cable design helps reduce cable clutter and improve airflow
• 120mm Hydraulic Bearing fan provides quiet and reliable cooling performance
• Active PFC design helps deliver stable and efficient power output
• MTBF over 100,000 hours for long-term reliability
• Built-in protection with OVP, OPP, SCP, UVP, OCP and OTP
• Available in standard black and ICE white edition options
Key Specifications
Model: GP-UD750GM PG5 / GP-UD750GM PG5 ICE / GP-UD850GM PG5 / GP-UD850GM PG5 ICE / GP-UD1000GM PG5 / GP-UD1000GM PG5 ICE
Product Type: ATX Power Supply Unit
Power Wattage: 750W / 850W / 1000W
Type: Intel Form Factor ATX 12V v3.1
Certification: 80 PLUS Gold
Efficiency: ≥90% Under Typical Load, 50% Loading
Modular Design: Full Modular
Fan Size: 120mm
Fan Bearing: Hydraulic Bearing Fan
PFC Type: Active PFC, >0.9 Typical
MTBF: >100,000 Hours
Protection: OVP / OPP / SCP / UVP / OCP / OTP
ATX / MB 20+4 Pin Connector: 1
CPU / EPS 4+4 Pin Connector: 2
PCIe 6+2 Pin Connector: 4
PCIe 12+4 Pin Connector: 1
SATA Connector: 8
4 Pin Peripheral Connector: 3
4 Pin Floppy Connector: 1
ATX / MB Cable Length: 610mm
CPU / EPS Cable Length: 650mm + 200mm
PCIe 6+2 Pin Cable Length: 600mm + 150mm
PCIe 12+4 Pin Cable Length: 700mm
SATA Cable Length: 600mm + 150mm + 150mm + 150mm
Peripheral / Floppy Cable Length: 500mm + 150mm + 150mm + 150mm
Dimensions & Weight
Product Dimensions: 150 x 140 x 86 mm
Product Weight: Not Specified
What’s Inside the Box
• GIGABYTE UD750GM / UD850GM / UD1000GM PG5 Power Supply Unit
• ATX / MB 20+4 Pin Cable
• CPU / EPS 4+4 Pin Cable
• PCIe 6+2 Pin Cable
• PCIe 12+4 Pin Cable
• SATA Cable
• Peripheral / Floppy Cable
• AC Power Cord
• User Guide
Warranty: 5 Years Warranty
