Product Highlights
• 10-core hybrid architecture with 6 Performance-cores and 4 Efficient-cores
• Maximum turbo frequency of up to 4.90GHz
• Integrated Intel AI Boost NPU accelerates supported AI workloads
• Supports up to 256GB of high-speed DDR5-6400 memory
• PCIe 5.0 and PCIe 4.0 support provides high-speed expansion connectivity
• 65W processor base power with up to 121W maximum turbo power
• Core Ultra 5 225 includes integrated Intel Graphics
• Core Ultra 5 225F requires a dedicated graphics card
• Boxed 225 and 225F processors include an Intel Laminar RM2 cooler
Key Specifications
Product Type: Desktop Processor

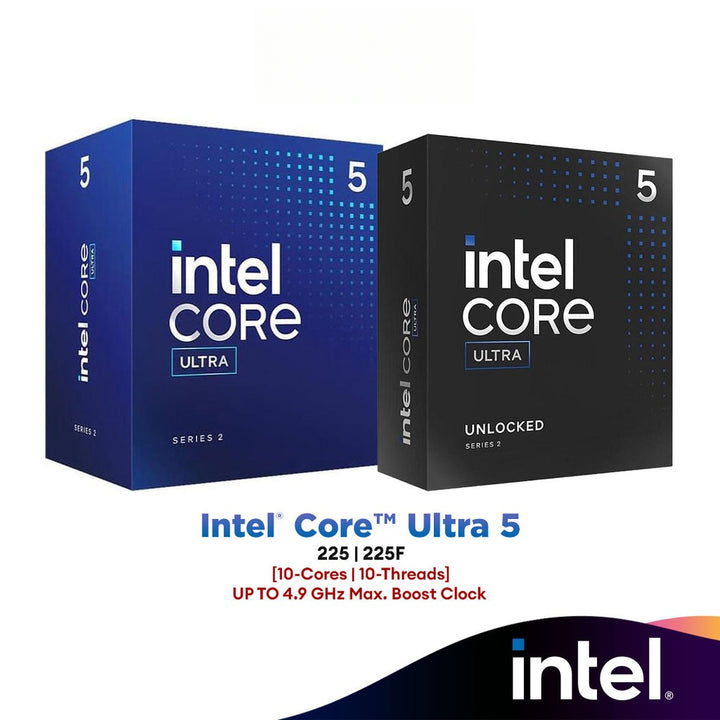

Available Models: Intel Core Ultra 5 225 and Intel Core Ultra 5 225F
Product Series: Intel Core Ultra Processors Series 2
Code Name: Arrow Lake
CPU Socket: LGA1851
Total Cores: 10
Performance-Cores: 6
Efficient-Cores: 4
Total Threads: 10
Maximum Turbo Frequency: 4.90GHz
Performance-Core Maximum Turbo Frequency: 4.90GHz
Efficient-Core Maximum Turbo Frequency: 4.40GHz
Performance-Core Base Frequency: 3.30GHz
Efficient-Core Base Frequency: 2.70GHz
Intel Smart Cache: 20MB
Total L2 Cache: 22MB
Processor Base Power: 65W
Maximum Turbo Power: 121W
CPU Lithography: TSMC N3B
Maximum Operating Temperature: 105°C
Memory Type: DDR5
Maximum Memory Speed: DDR5-6400MT/s
Maximum Memory Capacity: 256GB
Memory Channels: 2
PCI Express Version: PCIe 5.0 and PCIe 4.0
Maximum PCI Express Lanes: 24
Integrated NPU: Intel AI Boost
NPU Performance: Up to 13 TOPS
Cooler: Intel Laminar RM2

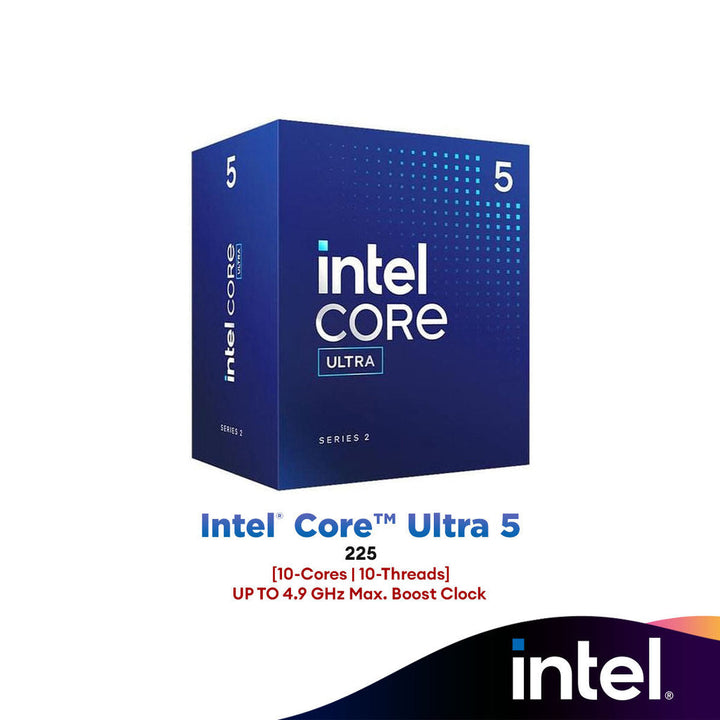

Core Ultra 5 225:
Model Code: BX80768225
Integrated Graphics: Intel Graphics
Graphics Cores: 2 Xe-Cores
Maximum Graphics Frequency: 1.80GHz
Overall AI Performance: Up to 23 TOPS

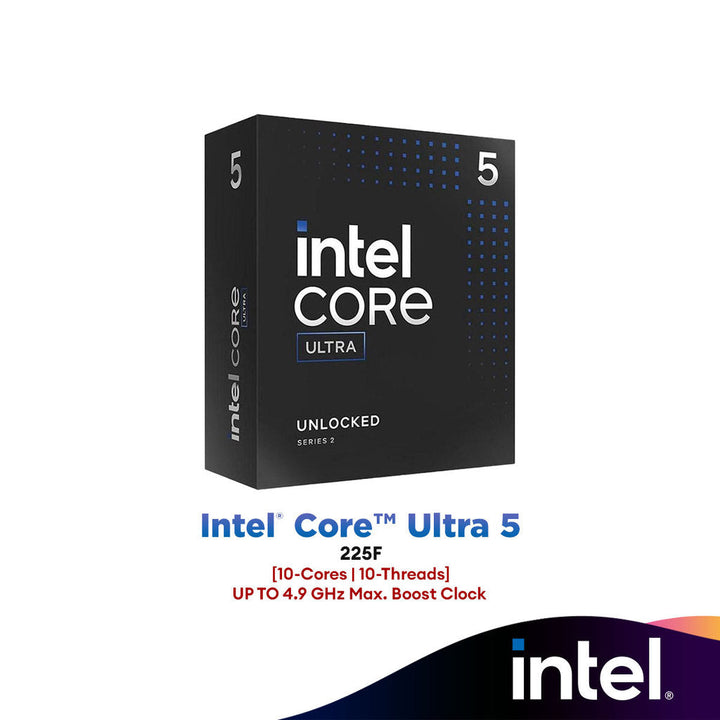

Core Ultra 5 225F:
Model Code: BX80768225F
Integrated Graphics: No
Dedicated Graphics Requirement: Yes
Overall AI Performance: Up to 19 TOPS
Size & Weight
Dimensions: 45 x 37.5 mm
Weight: 30 g
What’s in the Box
• Intel Core Ultra 5 225 or 225F Processor
• Intel Laminar RM2 Cooler
• Installation Documentation
Warranty: 3 Year Warranty
