Product Highlights
• Available with 16 or 24 Gigabit Ethernet ports for high-speed wired network expansion
• Plug-and-play installation requires no software or configuration
• Non-blocking switching architecture delivers full wire-speed data transfer
• Supports IEEE 802.1p and DSCP Quality of Service for traffic prioritisation
• 10KB Jumbo Frames improve large-file transfer performance
• TP-Link Green Ethernet technology reduces unnecessary power consumption
• Durable steel enclosure supports desktop and rackmount installation
• Fanless design provides silent operation
Key Specifications

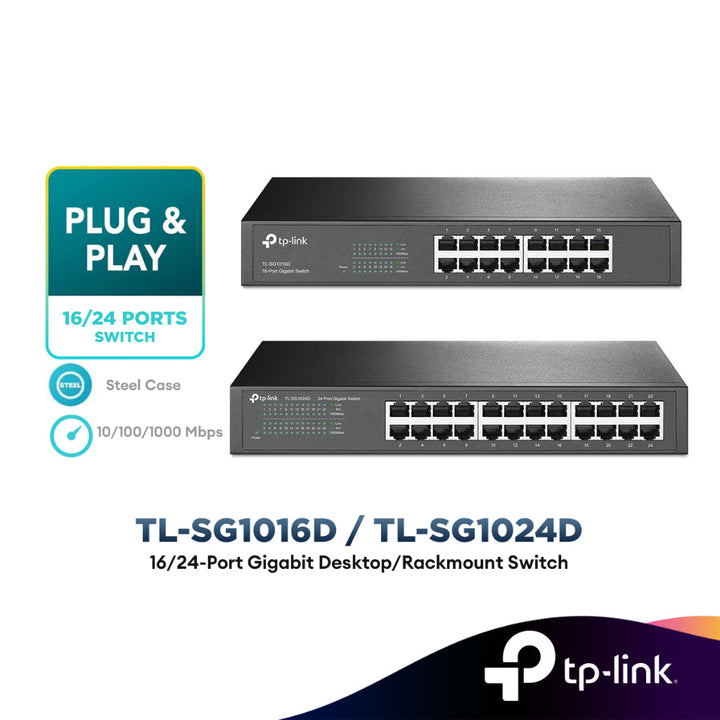

Model: TL-SG1016D / TL-SG1024D
Product Type: Unmanaged Gigabit Desktop Rackmount Network Switch

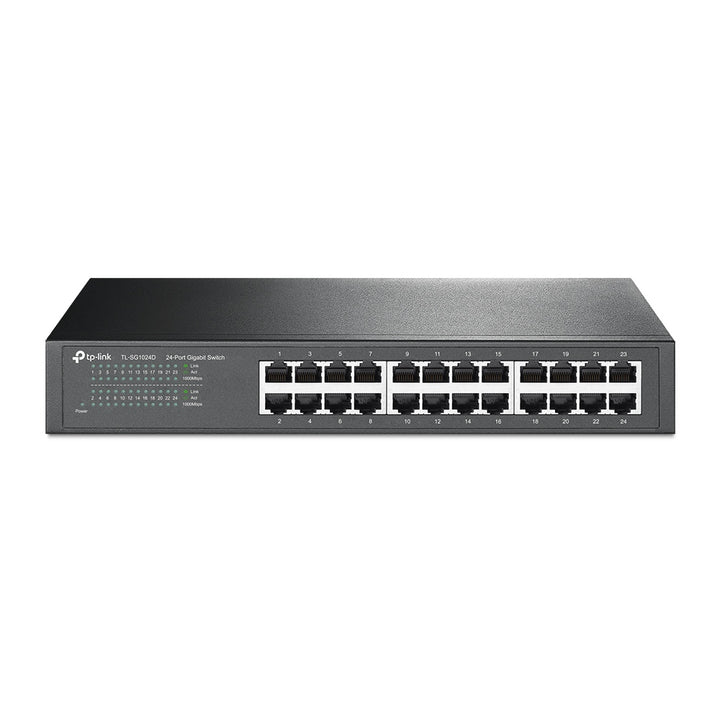

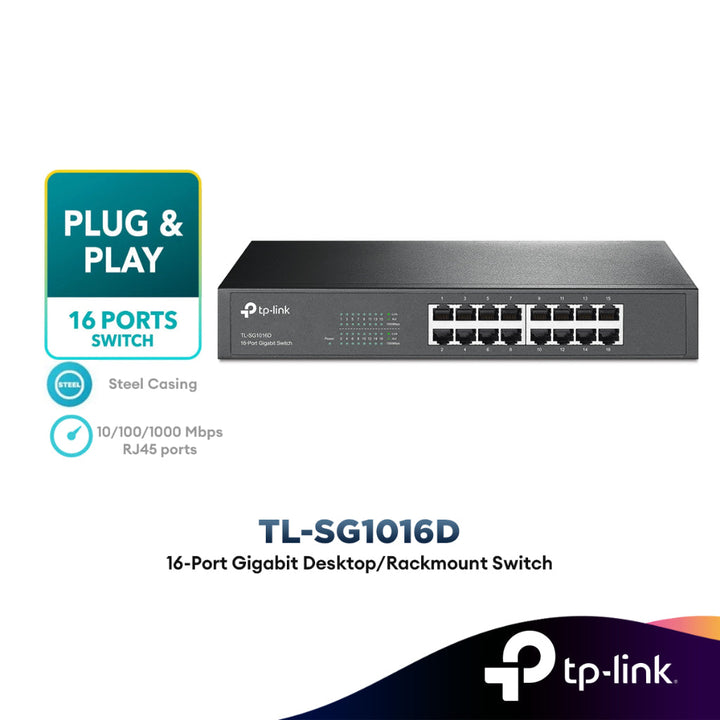

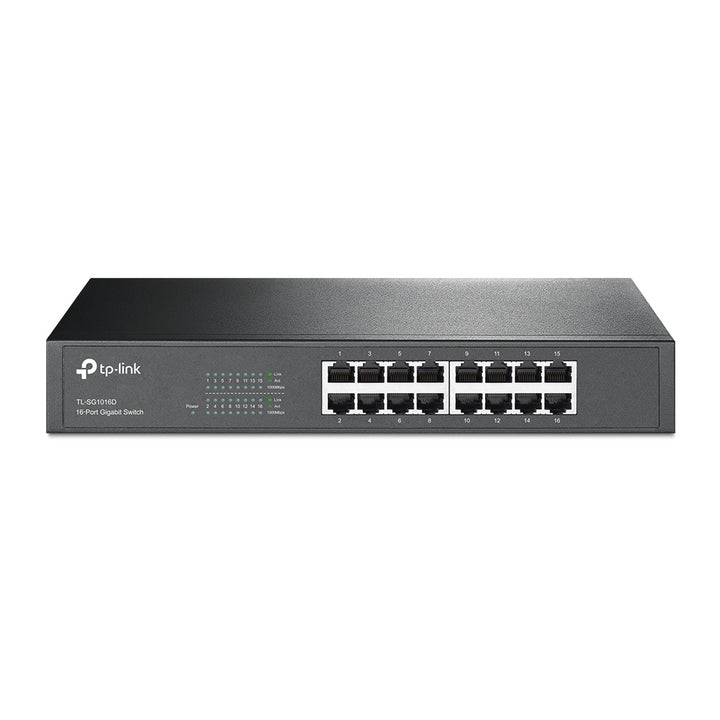

Network Ports: TL-SG1016D: 16 × Gigabit RJ45 / TL-SG1024D: 24 × Gigabit RJ45
Port Speed: 10/100/1000Mbps
Switching Capacity: TL-SG1016D: 32Gbps / TL-SG1024D: 48Gbps
Packet Forwarding Rate: TL-SG1016D: 23.8Mpps / TL-SG1024D: 35.7Mpps
MAC Address Table: 8,000 Entries
Jumbo Frame Support: Up to 10KB
Quality of Service: IEEE 802.1p / DSCP QoS
Network Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
Flow Control: IEEE 802.3x Flow Control and Back Pressure
Transmission Method: Store-and-Forward
Port Features: Auto-Negotiation and Auto MDI/MDIX
Power Supply: Internal 100–240V AC, 50/60Hz
Maximum Power Consumption: TL-SG1016D: 9.95W / TL-SG1024D: 13.62W
LED Indicators: Power, 1000Mbps and Link/Activity
Housing Material: Steel
Mounting Options: Desktop / Rackmount
Cooling System: Fanless
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 90% Non-Condensing
Storage Humidity: 5% to 90% Non-Condensing
Size & Weight
Dimensions:
TL-SG1016D: 294 × 180 × 44mm
TL-SG1024D: 294 × 180 × 44mm
Weight:
TL-SG1016D: 0.6kg
TL-SG1024D: 0.75kg
What’s in the Box
• 1 × TL-SG1016D 16-Port Switch or TL-SG1024D 24-Port Switch
• 1 × Power Cord
• 1 × Rackmount Kit
• Rubber Feet
• 1 × Installation Guide
Warranty: 3 Year Warranty
