Product Highlights
• AMD B850 Chipset with AM5 Socket for Ryzen processors

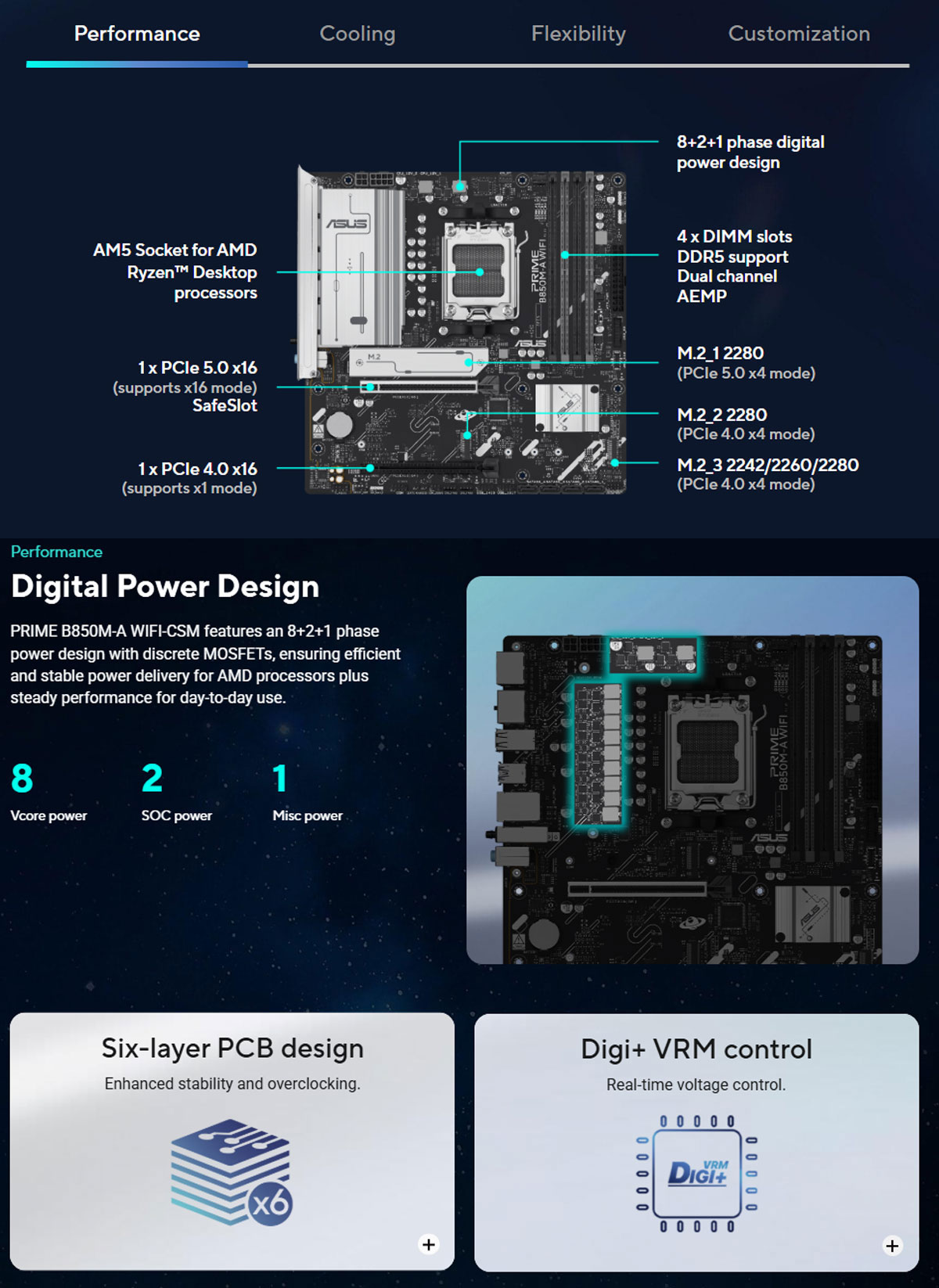

• 8+2+1 Phase Digital Power Design for stable power delivery
• DDR5 Memory Support with ASUS Enhanced Memory Profile (AEMP)
• AMD EXPO™ Support for enhanced DDR5 memory overclocking
• PCIe 5.0 Support for high-performance graphics cards and storage

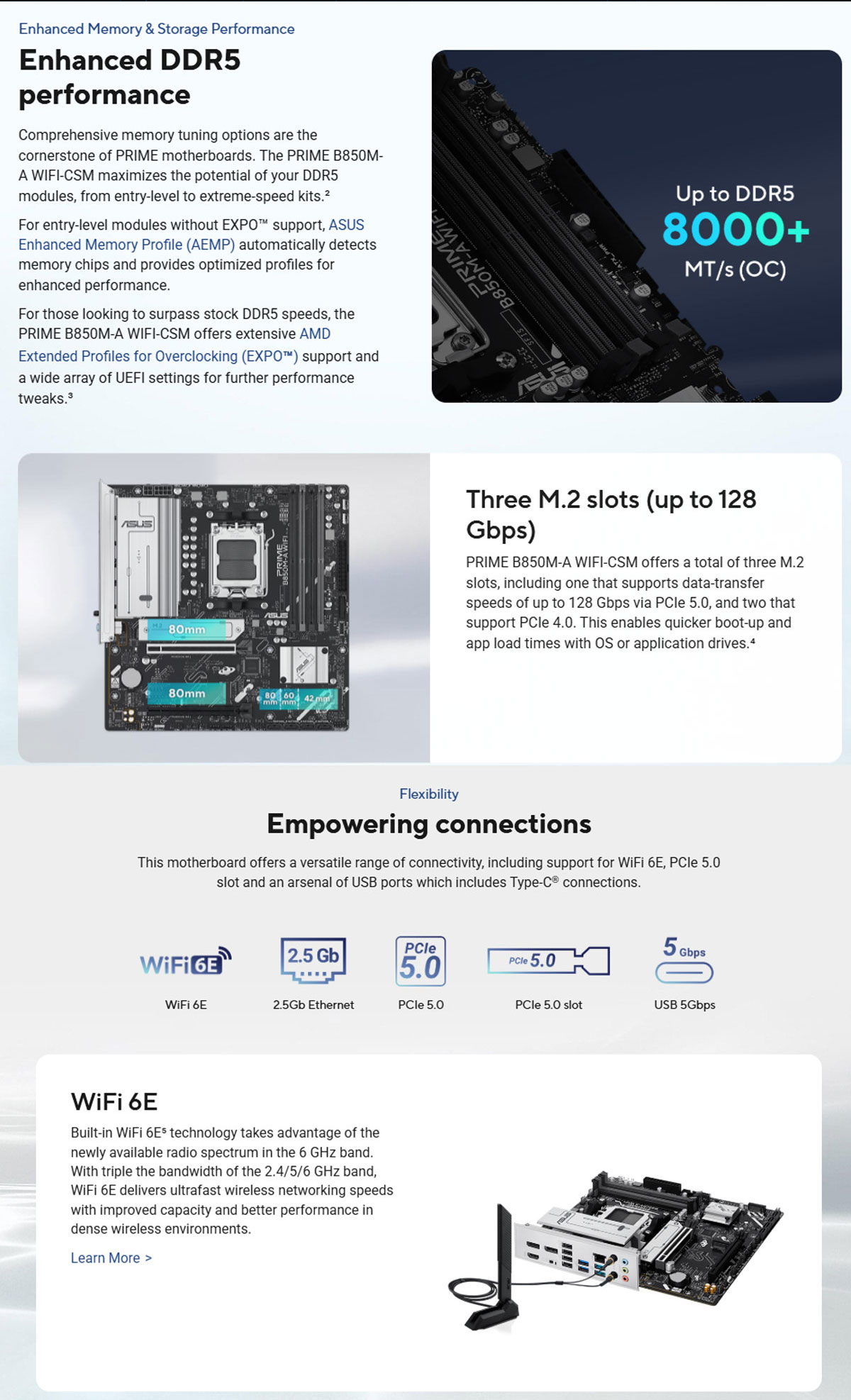

• Triple M.2 Slots with PCIe 5.0 x4 Support for speeds up to 128Gbps
• WiFi 6E Connectivity for fast, stable wireless networking and lower latency

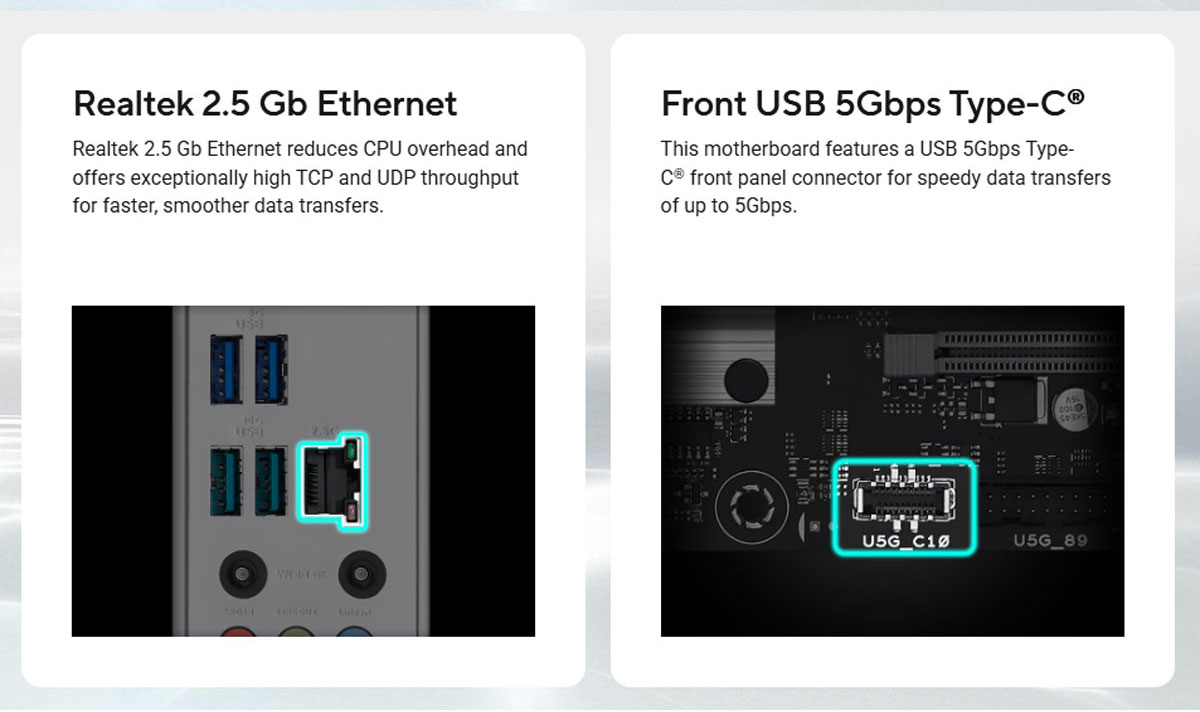

• Realtek 2.5Gb Ethernet for faster and smoother wired connections
• Front USB 5Gbps Type-C® Connector for convenient high-speed data transfers
• Pre-Mounted I/O Shield for easier installation and enhanced durability
• ASUS EZ PC DIY Features for simplified PC building and customization
• ASUS Aura Sync for customizable RGB lighting effects
Key Specification:

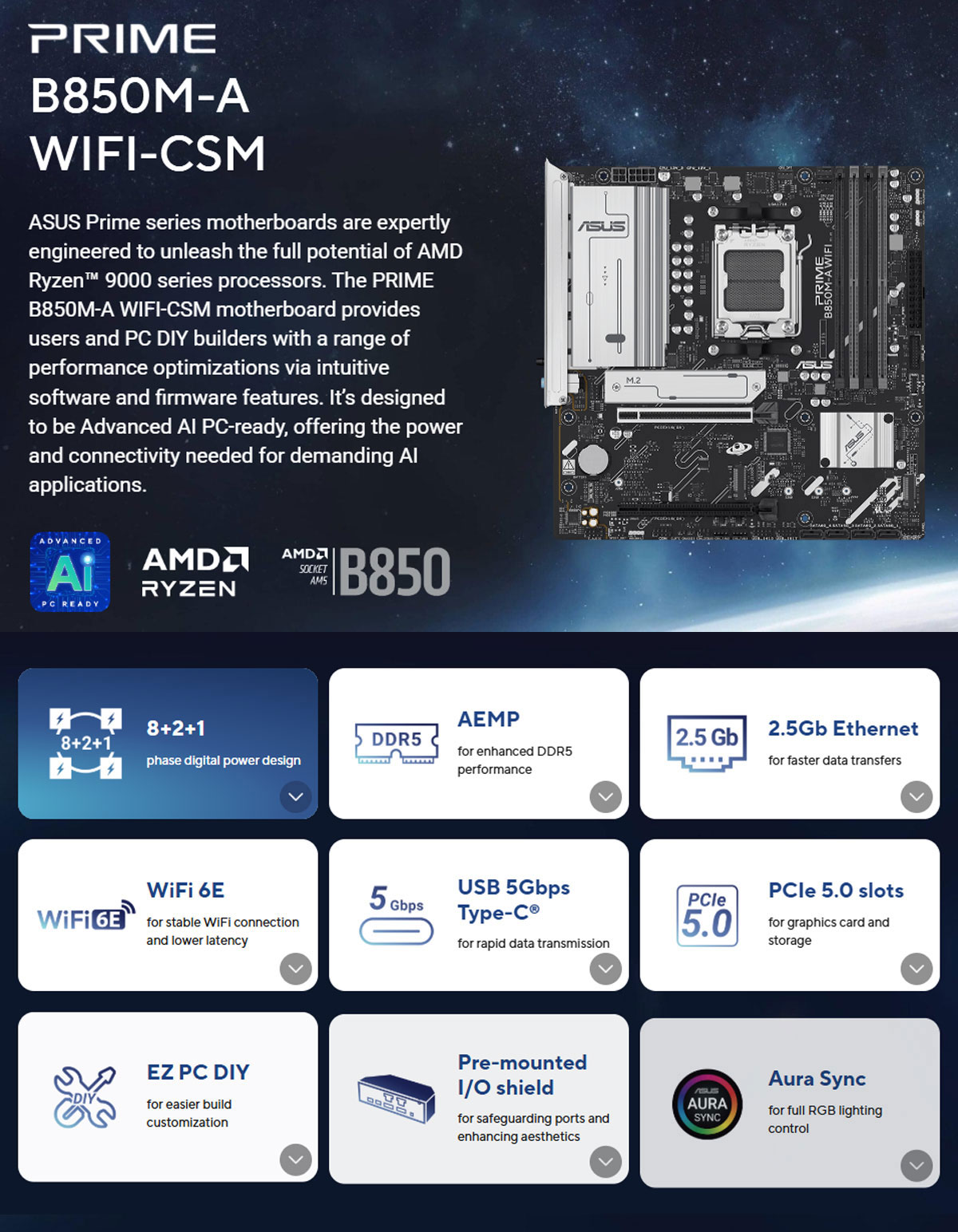

Model: ASUS PRIME B850M-A WIFI-CSM
CPU Socket: AMD AM5
CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Maximum CPU Power: 170W
Chipset: AMD B850
Memory Type: DDR5
Memory Slots: 4 x DIMM
Maximum Memory Capacity: 256GB
Memory Speed: Up to 8000+ MT/s (OC)
Memory Architecture: Dual Channel
Memory Support: ECC / Non-ECC Unbuffered DIMM
Memory Overclocking: AMD EXPO™ / ASUS AEMP
Graphics Outputs:
• 2 x DisplayPort 1.4 (Up to 8K @ 30Hz)
• 1 x HDMI 2.1 (Up to 4K @ 60Hz)
Expansion Slots:
• 1 x PCIe 5.0 x16 (Ryzen 9000 / 7000 Series, x16 Mode)
• 1 x PCIe 4.0 x16 (Ryzen 8000 Series, x8/x4 Mode)
• 1 x PCIe 4.0 x16 (Chipset, x1 Mode)
Storage Interface:
• 1 x M.2_1 (Type 2280, PCIe 5.0 x4 with Ryzen 9000 / 7000, PCIe 4.0 x4 with Ryzen 8000)
• 1 x M.2_2 (Type 2280, PCIe 4.0 x4 with Ryzen 9000 / 7000, PCIe 4.0 x4/x2 with Ryzen 8000)
• 1 x M.2_3 (Type 2242 / 2260 / 2280, PCIe 4.0 x4)
• 4 x SATA 6Gb/s
RAID Support: RAID 0 / 1 / 5 / 10 (Ryzen 9000), RAID 0 / 1 (Ryzen 8000), RAID 0 / 1 / 10 (Ryzen 7000)
LAN: Realtek 2.5Gb Ethernet
LAN Protection: ASUS LANGuard
Wireless LAN: WiFi 6E (802.11ax, 2x2)
WiFi Frequency: 2.4GHz / 5GHz / 6GHz
Bluetooth: 5.3
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Playback: Up to 24-bit / 192kHz
Audio Features: Jack Detection / Multi-Streaming / Front Panel Jack Retasking / Audio Shielding / Premium Audio Capacitors / Dedicated Audio PCB Layers
Rear USB Ports:
• 2 x USB 10Gbps Type-A
• 2 x USB 5Gbps Type-A
• 4 x USB 2.0 Type-A
Front USB Support:
• 1 x USB 5Gbps Type-C Connector (Up to 5V/3A)
• 1 x USB 5Gbps Header (Supports 2 Ports)
• 2 x USB 2.0 Headers (Supports 4 Ports)
Back Panel I/O:
• 2 x DisplayPort
• 1 x HDMI
• 2 x USB 10Gbps Type-A
• 2 x USB 5Gbps Type-A
• 4 x USB 2.0 Type-A
• 1 x WiFi Module
• 1 x RJ-45 2.5Gb Ethernet Port
• 3 x Audio Jacks
• 1 x BIOS FlashBack™ Button
Internal I/O Connectors:
• 1 x 24-Pin Main Power Connector
• 1 x 8-Pin +12V CPU Power Connector
• 1 x 4-Pin +12V CPU Power Connector
• 1 x 4-Pin CPU Fan Header
• 1 x 4-Pin CPU OPT Fan Header
• 1 x 4-Pin AIO Pump Header
• 3 x 4-Pin Chassis Fan Headers
• 3 x M.2 Slots (Key M)
• 4 x SATA 6Gb/s Ports
• 1 x USB 5Gbps Type-C Connector
• 1 x USB 5Gbps Header
• 2 x USB 2.0 Headers
• 3 x Addressable RGB Gen 2 Headers
• 1 x Clear CMOS Header
• 1 x Chassis Intrusion Header
• 1 x COM Port Header
• 1 x Front Panel Audio Header
• 1 x S/PDIF Out Header
• 1 x SPI TPM Header (14-1 Pin)
• 1 x System Panel Header (10-1 Pin)
Power Design: 8+2+1 Phase Digital Power Design
ASUS Protection: 5X Protection III (DIGI+ VRM / LANGuard / Overvoltage Protection / SafeSlot / Stainless-Steel Back I/O)
ASUS Q-Design: Q-Antenna / Q-Dashboard / Q-DIMM / Q-LED Core / Q-Slot
Cooling Features: M.2 Heatsink / VRM Heatsink
ASUS EZ DIY: BIOS FlashBack™ / BIOS FlashBack™ LED / Pre-Mounted I/O Shield / SafeSlot
RGB Lighting: ASUS Aura Sync / Addressable RGB Gen 2
Software Support: Armoury Crate / Aura Creator / Aura Sync / Fan Xpert 2+ / ASUS AI Advisor / ASUS Driver Hub / ASUS GlideX / TurboV Core / ASUS CPU-Z
Bundled Software: Norton 360 Deluxe (60-Day Trial) / WinRAR (40-Day Trial)
BIOS: 256Mb Flash ROM, UEFI AMI BIOS
BIOS Features: ASUS CrashFree BIOS 3 / ASUS EZ Flash 3 / ASUS UEFI BIOS EZ Mode / ASUS MyHotkey
Manageability: WOL by PME / PXE
Operating System: Windows 11 / Windows 10 64-bit
Form Factor: Micro ATX (mATX)
Dimensions: 24.4 x 24.4 cm
Warranty: 3 Years Warranty
