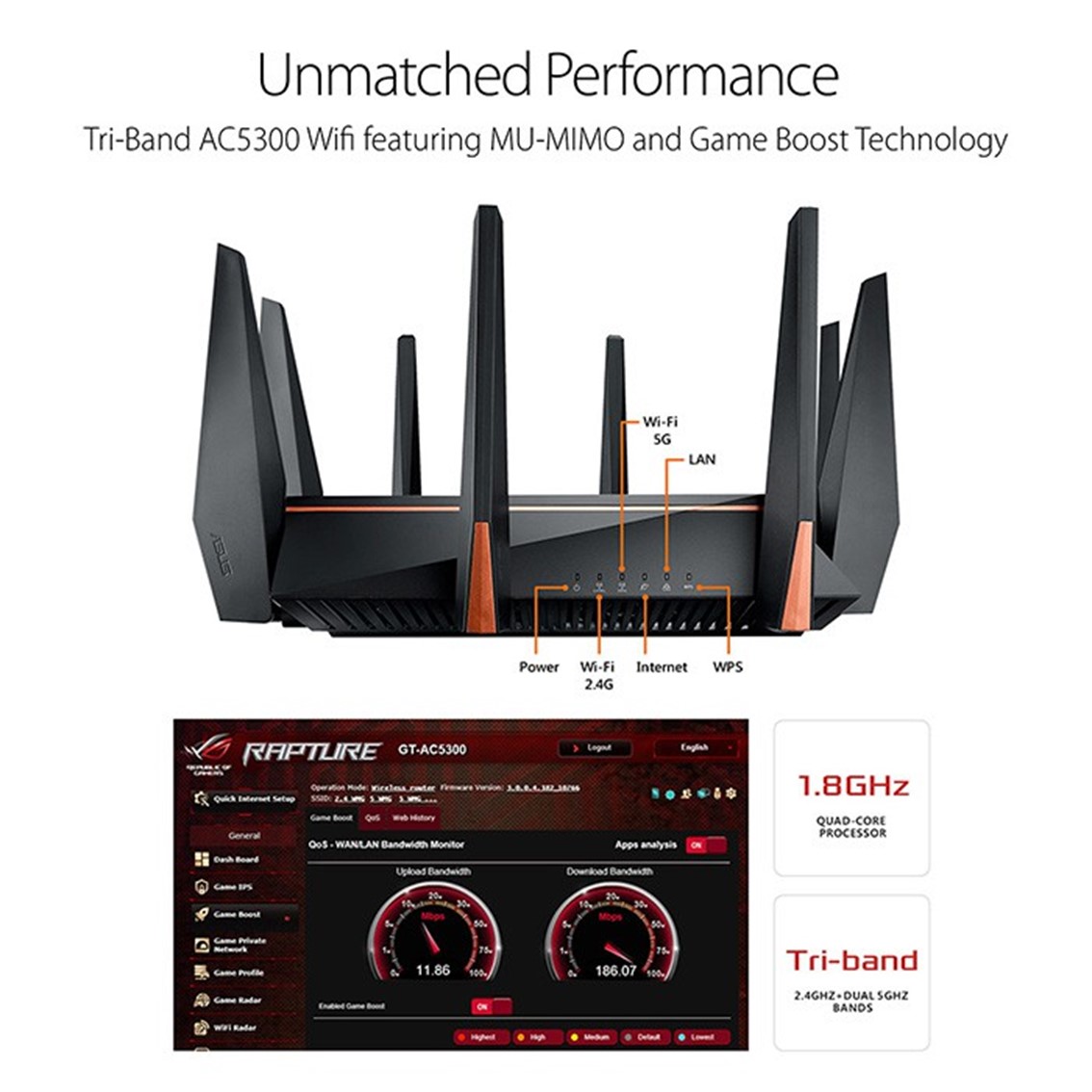

Asus ROG Rapture GT-AC5300 AiMesh WiFi MU-MIMO AC5300 Router

In stock
Router
Asus
RM1,859.00 RM599.00
-68%
RM599.00
customers are viewing this product







Model Name

GT-AC5300

Network Standard

802.11ac
Backwards compatible with 802.11a/b/g/n Wi-Fi

Product Segment

AC5300 ultimate AC performance:1000+2167+2167 Mbps

AX technology

No

Data Rate

2.4GHz N: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1000Mbps
5G-1Hz AC: 4x4 (Tx/Rx) 1024 QAM 20/40/80MHz, up to 2167Mbps
5G-2Hz AC: 4x4 (Tx/Rx) 1024 QAM 20/40/80MHz, up to 2167Mbps

Antenna

External antenna x 8

Transmit/Receive

MIMO technology
2.4 GHz 4 x 4
5 GHz-1 4 x 4
5 GHz-2 4 x 4

Processor

1.8GHz quad-core processor

Memory

256MB NAND flash and 1GB DDR3 SDRAM

Boosts speed

"Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth"

Operating Frequency

Tri-band Wi-Fi

Ports

RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 8 USB 3.0 x 2

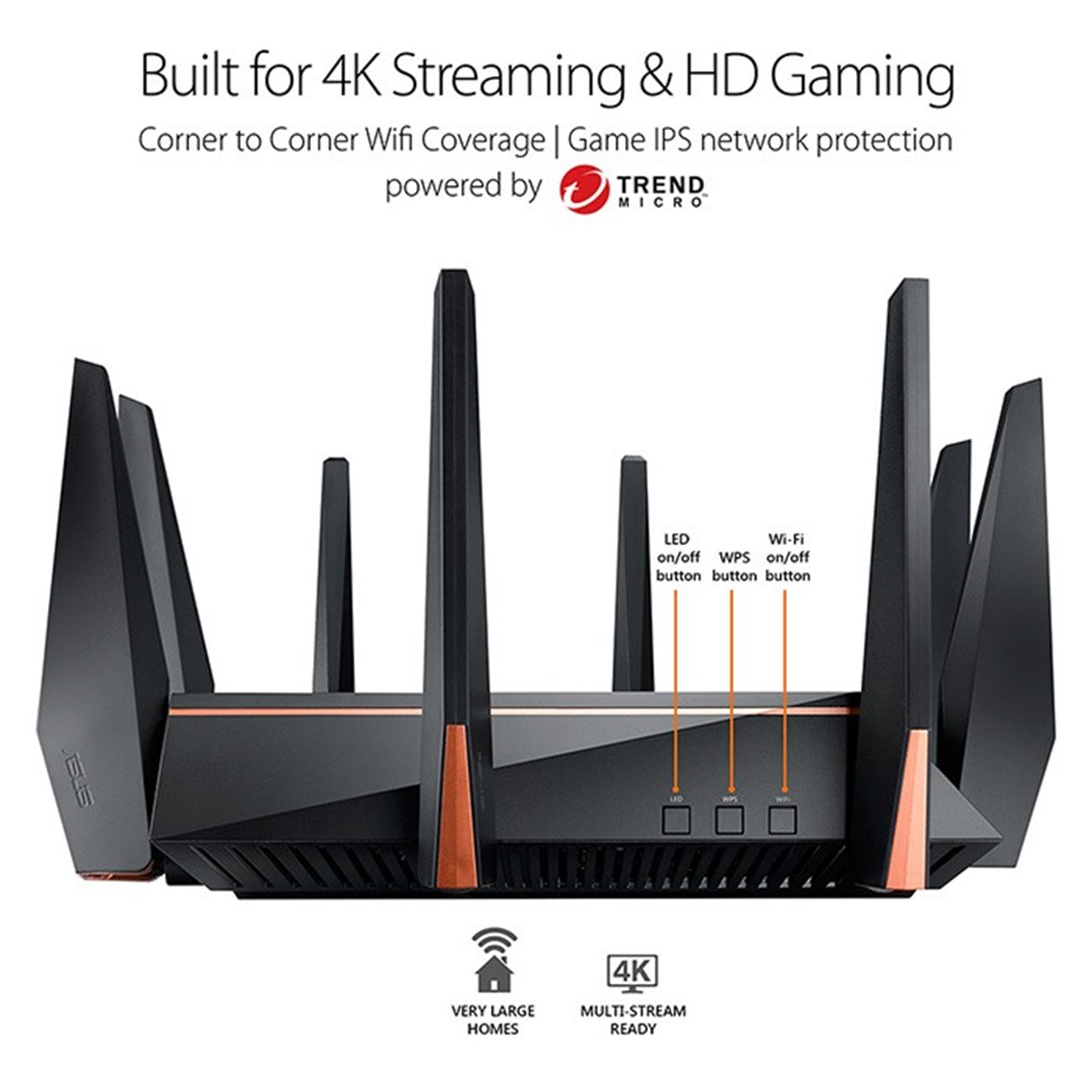

Button

WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button

LED Indicator

Power x 1 Wi-Fi x 2 WAN x 1 LAN x 1 WPS x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current

Package content

GT-AC5300 Extreme Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card

Product Weight (g)

1880 g

AiMesh

AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes

Router APP

ASUS Router APP : Yes

Game

Game Boost/acceleration : Yes
Game Radar : Yes
WTFast : Yes
Geforce Now : No
UU boost (CN only) : No
ROG_First : Yes
OpenNAT (Game Profile) : Yes
Gaming port : No

Alexa

Support Alexa skill : Yes

IFTTT

Support IFTTT : Yes

AiProtection

AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes

Parental Control

Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Maximum Parental Control profile : 16
Maximum Parental Control content filter rule : 16

Traffic Control

Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Traffic analysis period : Daily, Weekly, Monthly
Website history : Yes

Wireless

IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 2.4GHz x3, 5GHz-1 x3, 5GHz-2 x3
Guest Network Encryption : Open system, WPA/WPA2-Personal
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Wi-Fi Radar : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes

WAN

Explicit beamforming : Yes
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : No
3G/4G LTE dongle : Yes
Android tethering : Yes
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
Maximum port triggering rule : 32
DMZ : Yes
DDNS : Yes
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

Let's Encrypt : Yes
DHCP Server : Yes
IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64

VPN

VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : Yes

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes

Administration

Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 32
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
