Asus RT-AX52 AX1800 Dual Band WiFi 6 Extendable Router | Parental Control Scheduling | AiMesh

Availability : In Stock Pre order Out of stock
Add to Wishlist

Share on:




ASUS RT-AX52 (AX1800) Dual Band WiFi 6 Extendable Router, Instant Guard, Parental Control Scheduling, Built-in VPN, AiMesh Compatible


✅New-Gen WiFi Standard – Supporting 802.11ax WiFi standard for better efficiency and throughput.

✅Ultra-fast WiFi Speed – RT-AX52 supports 1024-QAM for dramatically faster wireless connections. With a total networking ✅speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.

✅Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicating with multiple devices simultaneously

✅Easy Extendable Network – Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.


✅Network Standard:

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)



✅WiFi Data Rate

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

WiFi 4 (802.11n) : up to 300 Mbps

WiFi 5 (802.11ac) : up to 867 Mbps

WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps


External antenna x 4

✅Transmit / Receive

2.4GHz 2x2

5GHz 2x2


1.3GHz dual-core processor


128 MB Flash

256 MB RAM

✅Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80 MHz bandwidth

✅Operating Mode

Access Point, AiMesh Node, Repeater, Router

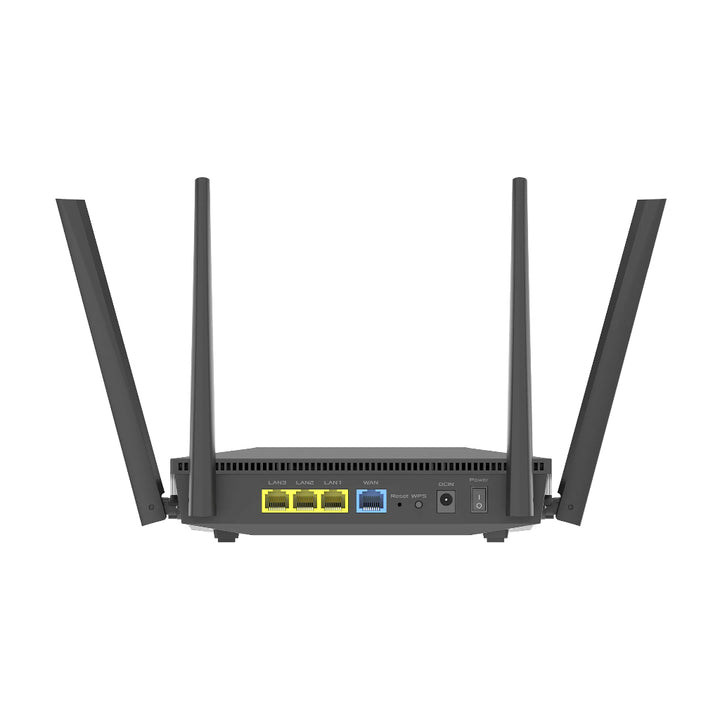

✅I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3


WPS Button, Reset Button, Power Switch

✅LED Indicator

Power x 1

WAN x 1

LAN x 3

2.4G x 1

5G x 1

WPS x 1

✅Power Supply

AC Input : 110V~240V(50~60Hz)

DC Output : 12 V with max. 1 A current

✅Product Weight (g)


✅Product Dimensions

192 x 126.3 x 47.5 mm (WxDxH)


• Primary AiMesh Router

• AiMesh Node

✅Parental Control

"Allow you to block access to unwanted websites and apps."

Customized Internet Schedule

✅Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."


Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise





Instant Guard

VPN Client L2TP

VPN Client Open VPN


VPN Server IPSec

VPN Server Open VPN


✅Traffic Control

• Bandwidth Limiter

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor


Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN

Port triggering




DHCP Server

IGMP Snooping


Manually Assign IP Address

Wake on LAN (WOL)



WiFi MAC Address Filter

Wireless Scheduler

Airtime Fairness


Universal Beamforming

Explicit Beamforming


Configuration Backup and Restore

Diagnosis tools

Feedback System

System Log


#Asus #RT-AX52# AX1800 #Dual #Band #WiFi #6 #Extendable #Router#Parental #Control #Scheduling #AiMesh #similar #RT-AX55 #RT-AX56U #RT-AX1800U #RT-AX53U

#Penjadualan #kawalan #ibu #bapa

#华硕 #RT-AX52 #AX1800 #双频 #WiFi6 #可扩展路由器#家长控制调度#AiMesh#类似#RT-AX55 #RT-AX56U #RT-AX1800U #RT-AX53U

#ASUS# RT-AX52 #AX1800 #Dual #Band #WiFi #6 #Extendable #Router #Instant #Guard #Parental #Control #Scheduling #Built-in #VPN #AiMesh #Compatible
