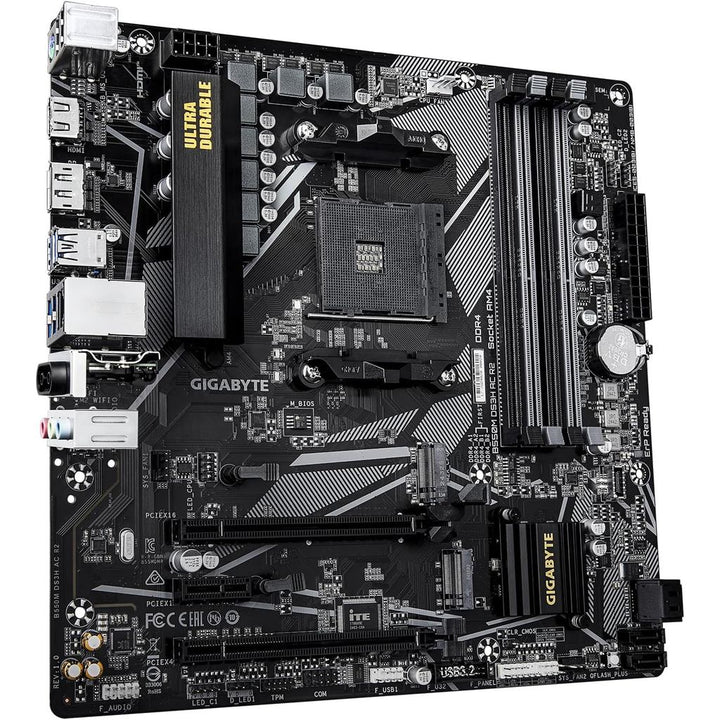

Technical Specs :-
๐๐๐ :
AMD Socket AM4, support for:
AMD Ryzenโข 5000 G-Series Processors/
AMD Ryzenโข 5000 Series Processors/
AMD Ryzenโข 4000 G-Series Processors/
AMD Ryzenโข 3000 G-Series Processors/
AMD Ryzenโข 3000 Series Processors
ย
๐๐๐๐๐๐๐ :
AMD B550
ย
๐๐๐๐๐๐ :
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
ย
๐๐๐๐๐ ๐๐๐๐๐๐ :
Integrated Graphics Processor with AMD Radeonโข Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB
ย
๐๐๐๐๐๐๐๐๐ ๐๐๐๐ :
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzenโข 5000/3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzenโข 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
ย
๐๐๐๐๐ :
Realtekยฎ ALC1220 CODEC
High Definition Audio
2/4/5.1/7.1-channel
ย
๐๐๐ :
Realtekยฎ GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
ย
Wireless Communication module
Realtekยฎ Wi-Fi RTL8821CE
- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.0
- Support for 11ac wireless standard
ย
๐๐๐๐๐๐๐ :
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzenโข 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
AMD Ryzenโข 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
ย

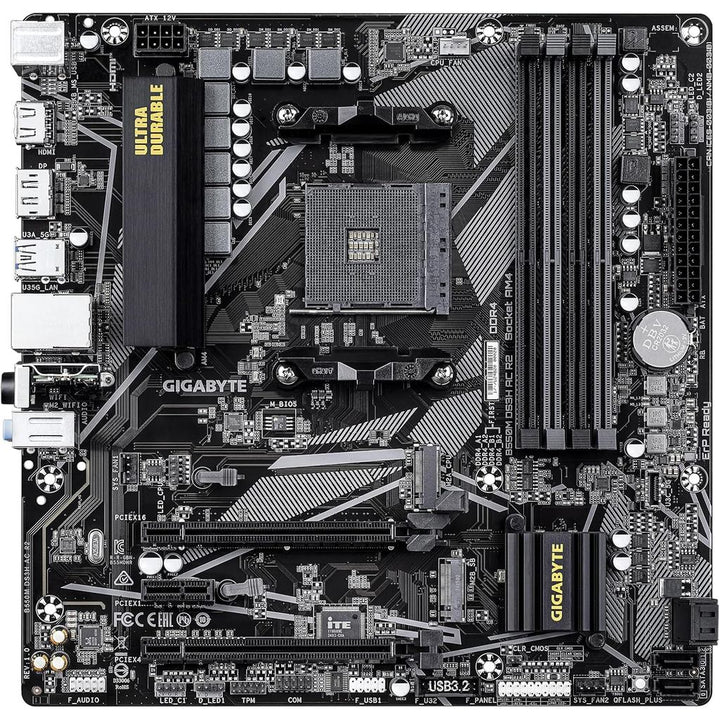

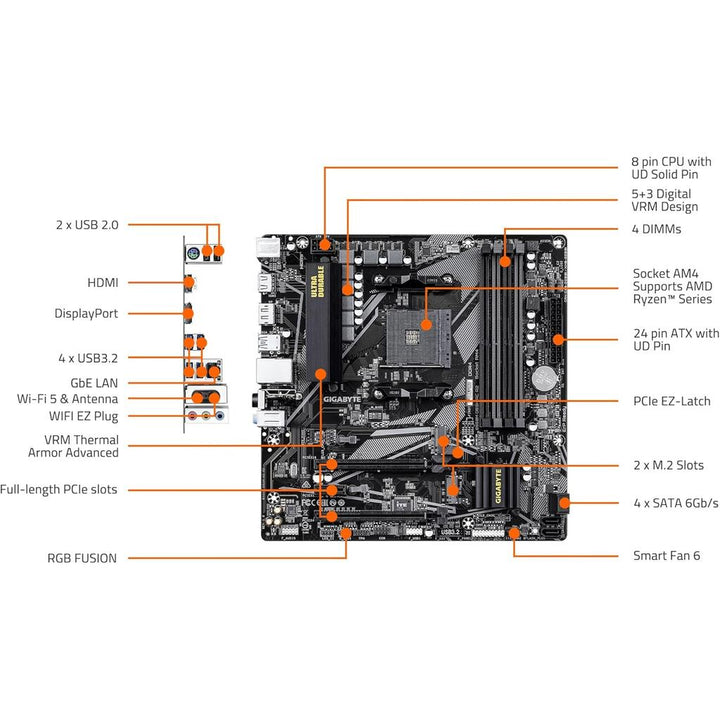

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-Cยฎ header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
ย

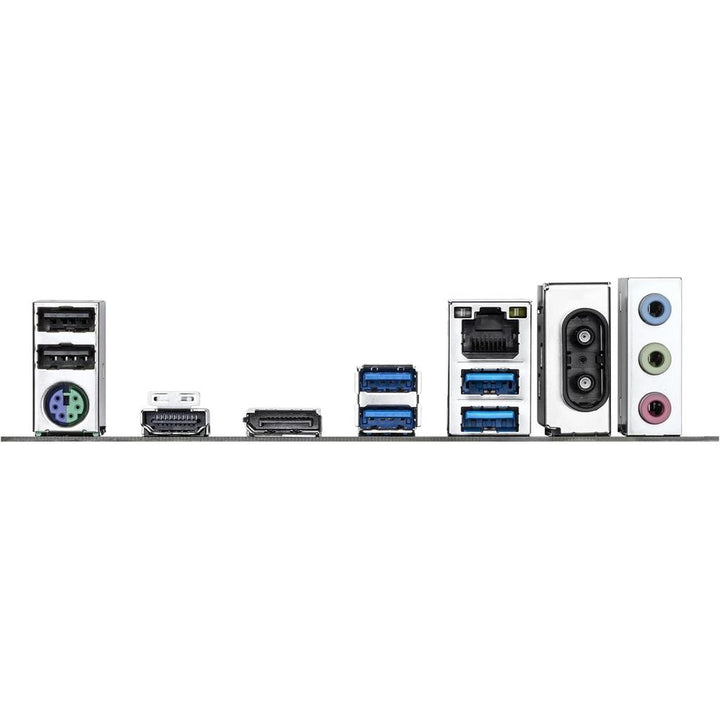

๐๐๐๐ ๐/๐ :
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks
ย
Bundled Software
Nortonยฎ Internet Security (OEM version)
LAN bandwidth management software
ย
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
ย
๐ ๐๐๐ ๐ ๐๐๐๐๐ :
Micro ATX Form Factor; 24.4cm x 24.4cm
