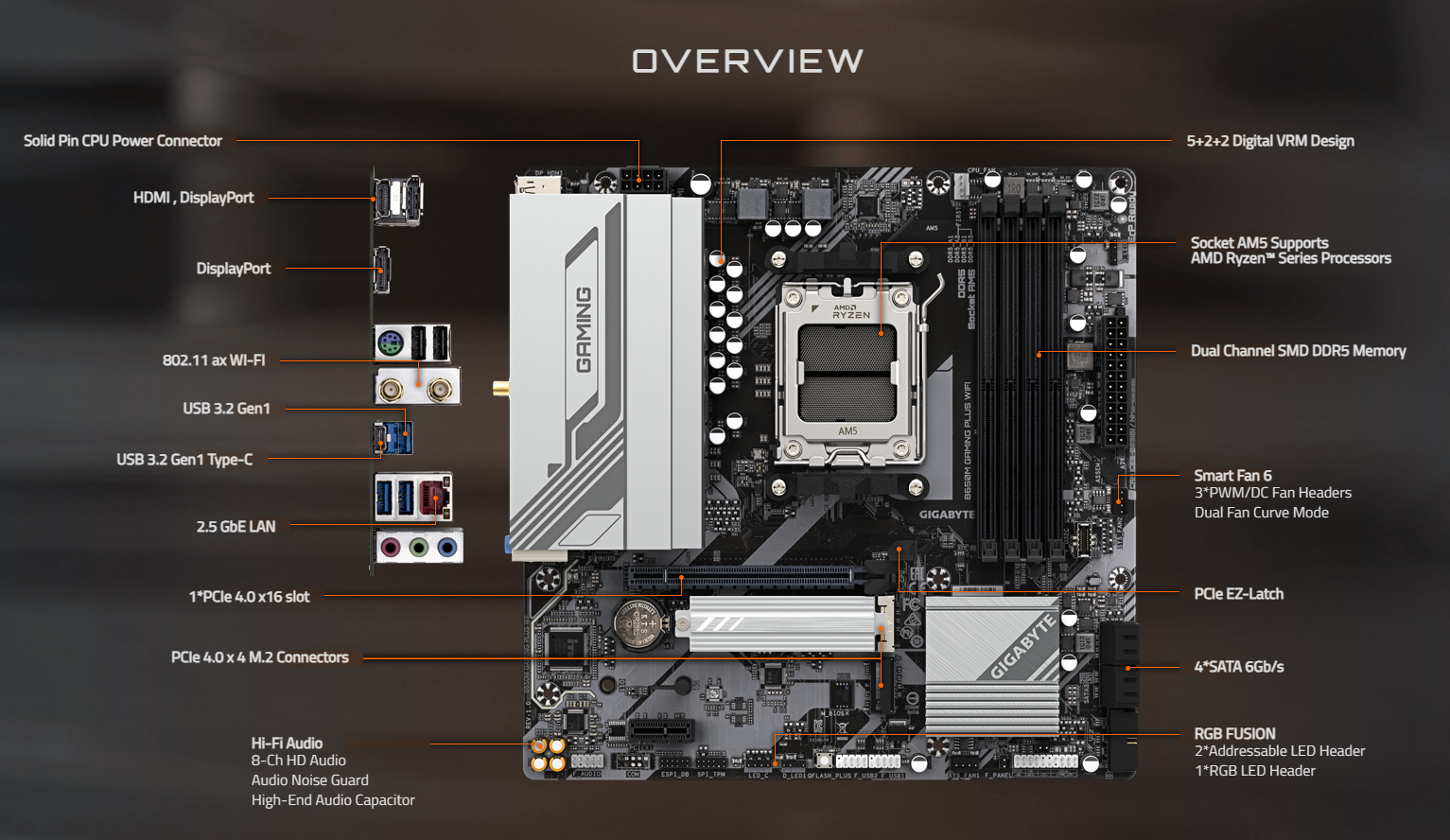

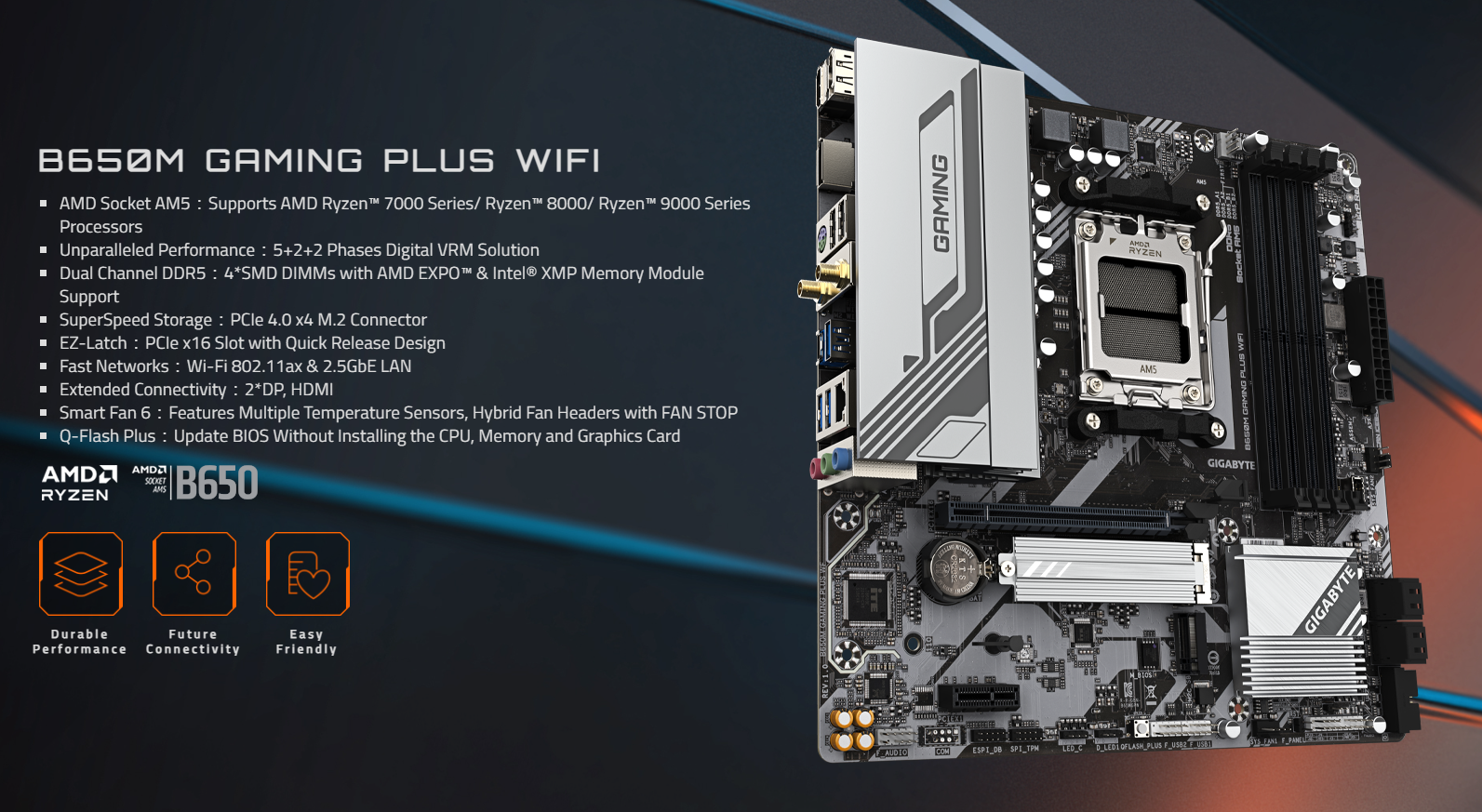

Product Highlights
• Supports AMD Ryzen™ 9000, 8000 and 7000 Series processors
• AMD B650 chipset with AM5 socket for modern Ryzen builds
• 4 x DDR5 DIMM slots supporting up to 256GB memory
• Supports DDR5 memory speed up to 8000MT/s (O.C.)
• Built-in Wi-Fi 6, Bluetooth® 5.3 and Realtek® 2.5GbE LAN
• 2 x PCIe 4.0 M.2 slots and 4 x SATA 6Gb/s ports for storage expansion
• Micro ATX form factor with Q-Flash Plus and Smart Fan 6 support
Key Specifications

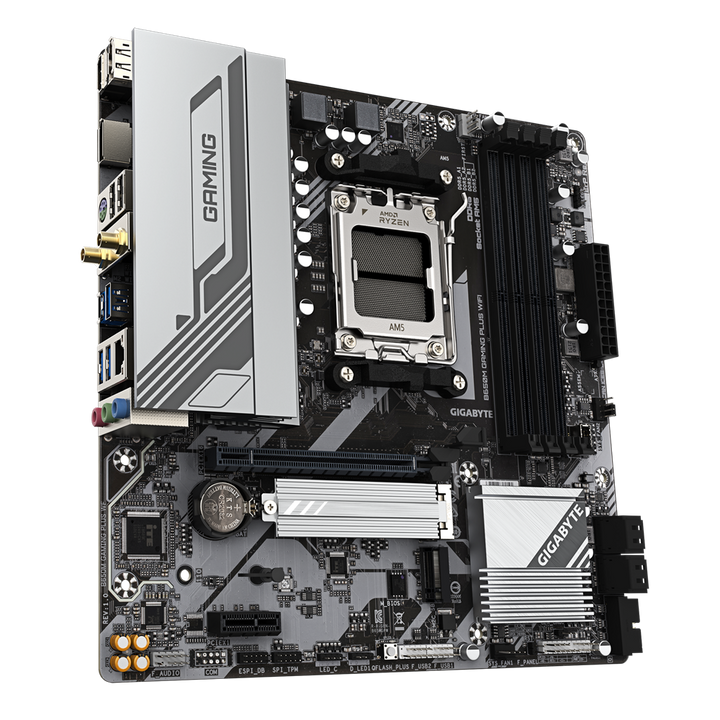

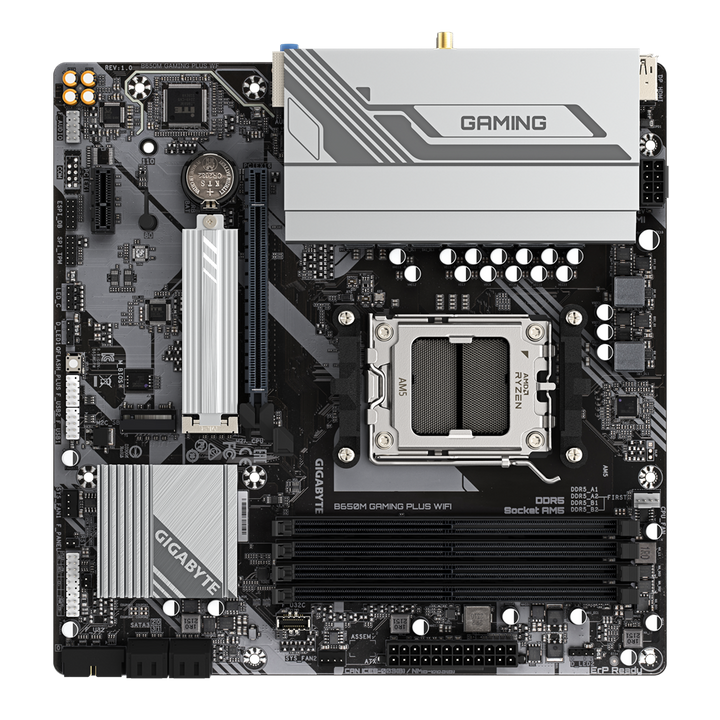

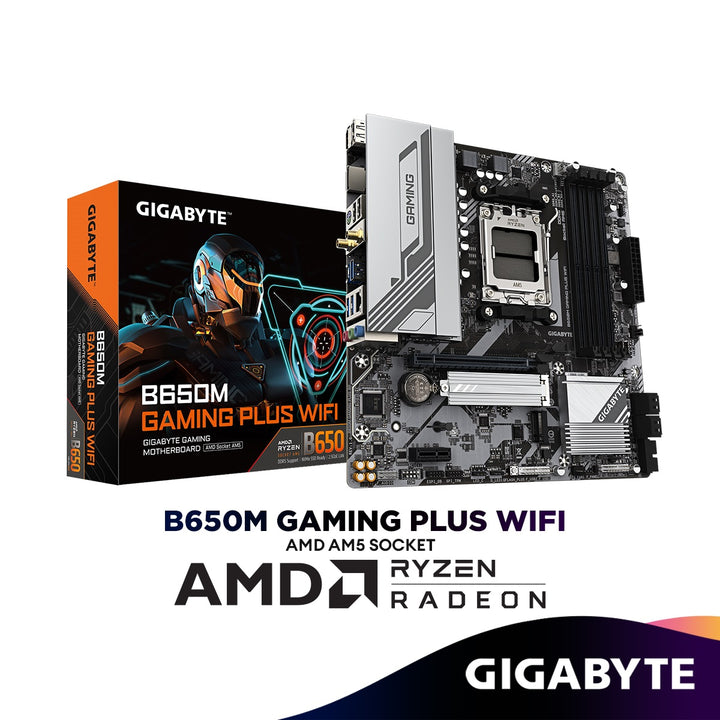

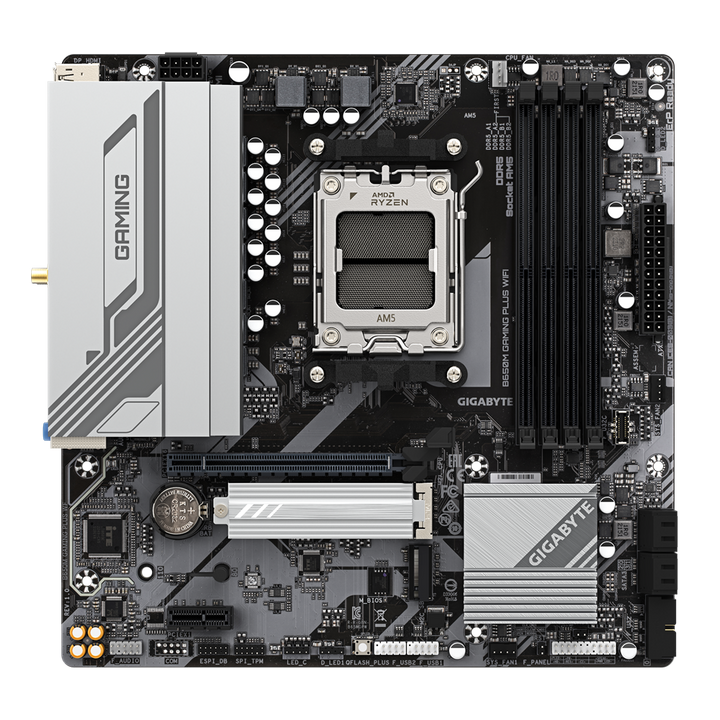

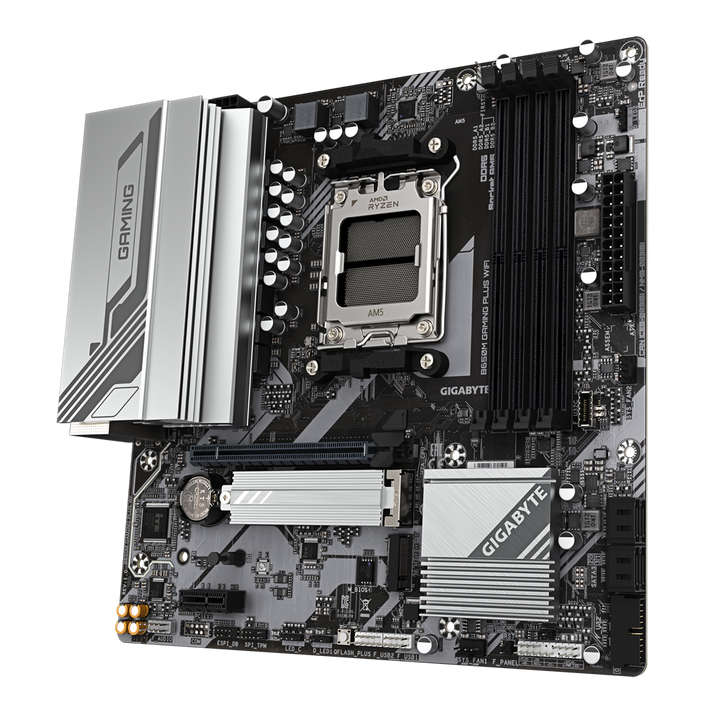

Model: B650M GAMING PLUS WIFI
Product Type: AMD Motherboard
Form Factor: Micro ATX / mATX
Chipset: AMD B650
Socket: AMD Socket AM5
CPU Support:
• AMD Ryzen™ 9000 Series Processors
• AMD Ryzen™ 8000 Series Processors
• AMD Ryzen™ 7000 Series Processors
Memory: 4 x DDR5 DIMM
Maximum Memory: Up to 256GB
Memory Speed: Up to DDR5 8000MT/s (O.C.)
Memory Support: Dual Channel, AMD EXPO™, Intel® XMP, Non-ECC Un-buffered DDR5
Graphics Output:
• 2 x DisplayPort 1.4
• 1 x HDMI 2.1 port
Expansion Slots:
• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot
Storage:
• 1 x M.2 slot, Type 2580, supports PCIe 4.0 x4 / x2 SSD
• 1 x M.2 slot, Type 22110 / 2280, supports PCIe 4.0 x4 / x2 SSD
• 4 x SATA 6Gb/s connectors
• Supports RAID 0, RAID 1 and RAID 10 for NVMe SSD and SATA storage
Wireless Connectivity: Wi-Fi 6, Bluetooth® 5.3
LAN: Realtek® 2.5GbE LAN
Audio: Realtek® Audio CODEC, 2 / 4 / 5.1 / 7.1-channel High Definition Audio

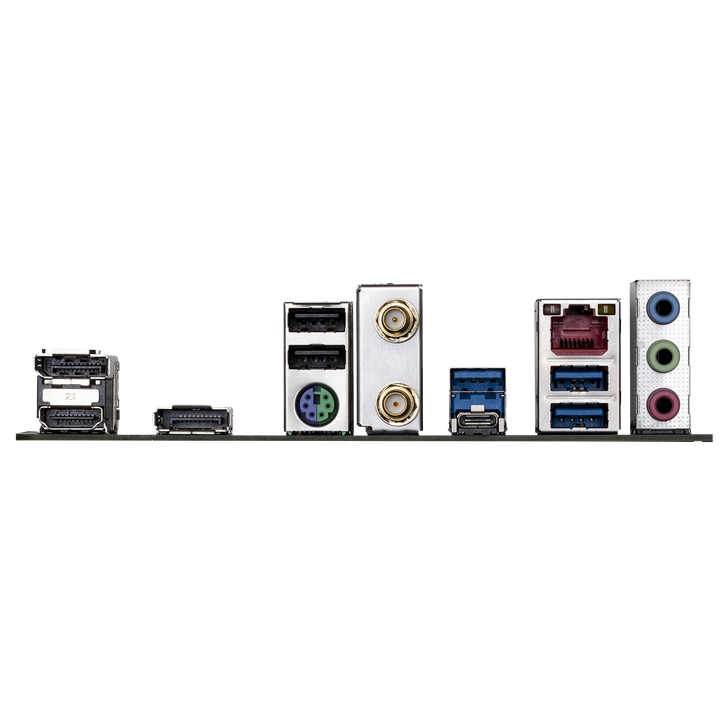

Back Panel Connectors:
• 1 x PS/2 keyboard / mouse port
• 1 x USB Type-C® port, USB 3.2 Gen 1
• 3 x USB 3.2 Gen 1 ports
• 2 x USB 2.0 / 1.1 ports
• 1 x HDMI port
• 2 x DisplayPorts
• 2 x Antenna connectors
• 1 x RJ-45 port
• 3 x Audio jacks
Internal I/O Connectors:
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x System fan headers
• 2 x Addressable LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x Front panel header
• 1 x Front panel audio header
• 1 x USB Type-C® header, USB 3.2 Gen 1
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0 / 1.1 headers
• 1 x Trusted Platform Module header
• 1 x Q-Flash Plus button
• 1 x Reset jumper
• 1 x Clear CMOS jumper
Special Features:
• 5+2+2 Phases Digital VRM Solution
• PCIe 4.0 M.2 Support
• PCIe EZ-Latch
• Q-Flash Plus
• Smart Fan 6
• RGB Fusion Support
• GIGABYTE Control Center
Operating System: Windows® 11 64-bit, Windows® 10 64-bi
Dimensions & Weight
Dimensions: 24.4 x 24.4 x 2.0 cm
Weight: 1.50 kg
Warranty: 3 Years Warranty
