Product Highlights
• Supports Intel® Core™ Ultra Processors on LGA1851 socket
• Intel® B860 Express chipset for modern Intel gaming builds
• 2 x DDR5 DIMM slots supporting up to 128GB memory
• Supports DDR5 memory speed up to 9066MT/s (O.C.)
• Built-in Wi-Fi 6, Bluetooth® 5.3 and Realtek® 2.5GbE LAN
• 2 x M.2 slots including PCIe 5.0 support and 4 x SATA 6Gb/s ports
• Micro ATX form factor suitable for compact gaming PC builds
Key Specifications

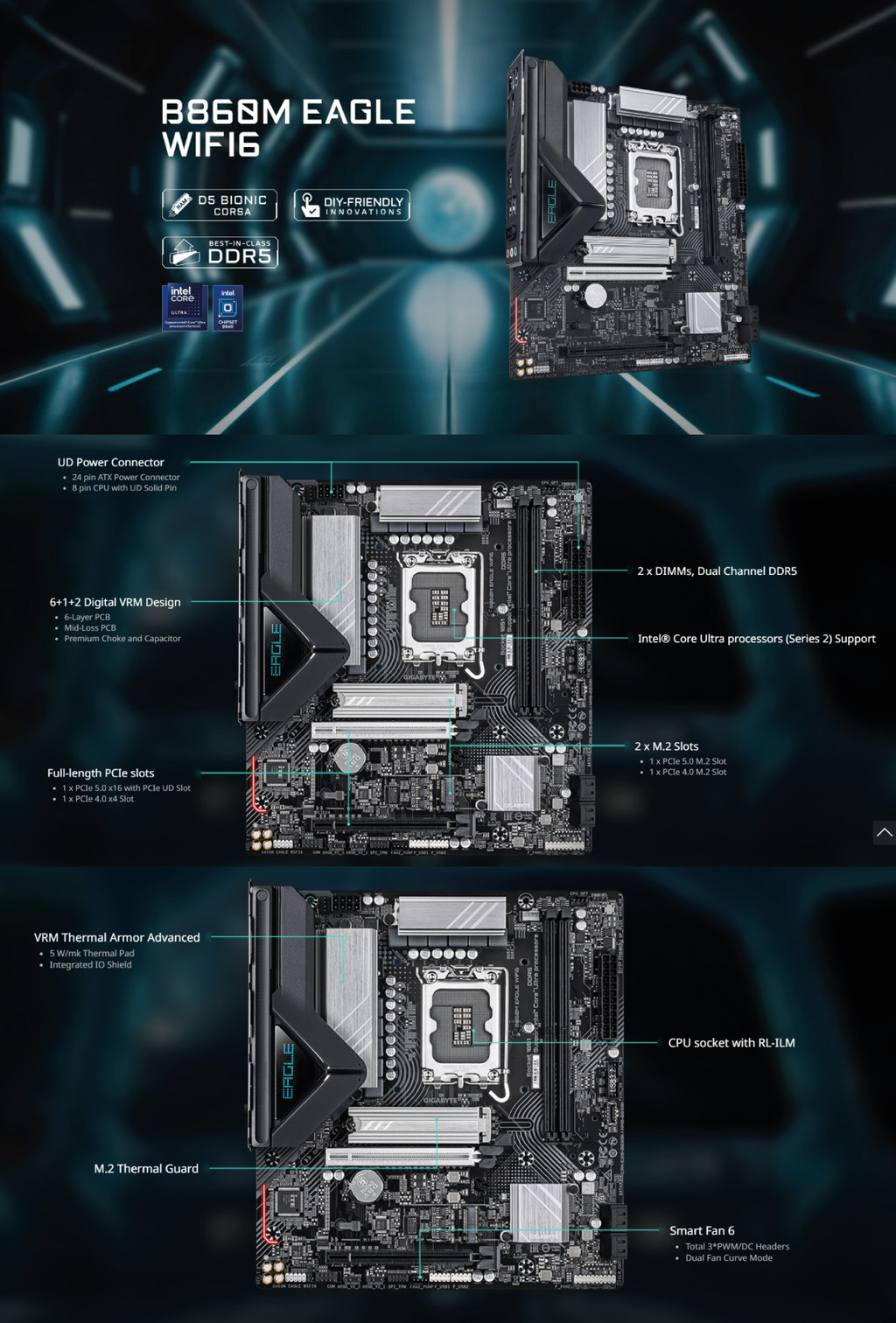

Model: B860M EAGLE WIFI6
Product Type: Intel Gaming Motherboard
Form Factor: Micro ATX / mATX
Chipset: Intel B860 Express
Socket: Intel LGA1851
CPU Support:
• Intel® Core™ Ultra Processors
Memory: 2 x DDR5 DIMM
Maximum Memory: Up to 128GB
Memory Speed: Up to DDR5 9066MT/s (O.C.)
Memory Support: Dual Channel, Intel® XMP, ECC / Non-ECC Un-buffered DDR5
Graphics Output:
• 1 x HDMI 2.1 port, supports up to 4096 x 2160 @ 60Hz
• 1 x DisplayPort 2.1, supports up to 3840 x 2160 @ 144Hz
Expansion Slots:
• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot, running at x4 mode
Storage:
• 1 x M.2 slot, supports PCIe 5.0 x4 / x2 SSD
• 1 x M.2 slot, supports PCIe 4.0 x4 / x2 SSD
• 4 x SATA 6Gb/s connectors
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage
Wireless Connectivity: Wi-Fi 6, Bluetooth® 5.3
LAN: Realtek® 2.5GbE LAN
Audio: Realtek® Audio CODEC, 2 / 4 / 5.1 / 7.1-channel High Definition Audio
Back Panel Connectors:
• 1 x PS/2 keyboard / mouse port
• 1 x HDMI port
• 1 x DisplayPort
• 3 x USB 3.2 Gen 1 ports
• 3 x USB 2.0 / 1.1 ports
• 2 x Antenna connectors
• 1 x RJ-45 port
• 3 x Audio jacks
Internal I/O Connectors:
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan / water cooling pump header
• 1 x System fan header
• 1 x System fan / water cooling pump header
• 3 x Addressable RGB Gen2 LED strip headers
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x Front panel header
• 1 x Front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C® header with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0 / 1.1 headers
• 1 x Trusted Platform Module header
• 1 x Serial port header
• 1 x Q-Flash Plus button
• 1 x Reset jumper
• 1 x Clear CMOS jumper
Special Features:

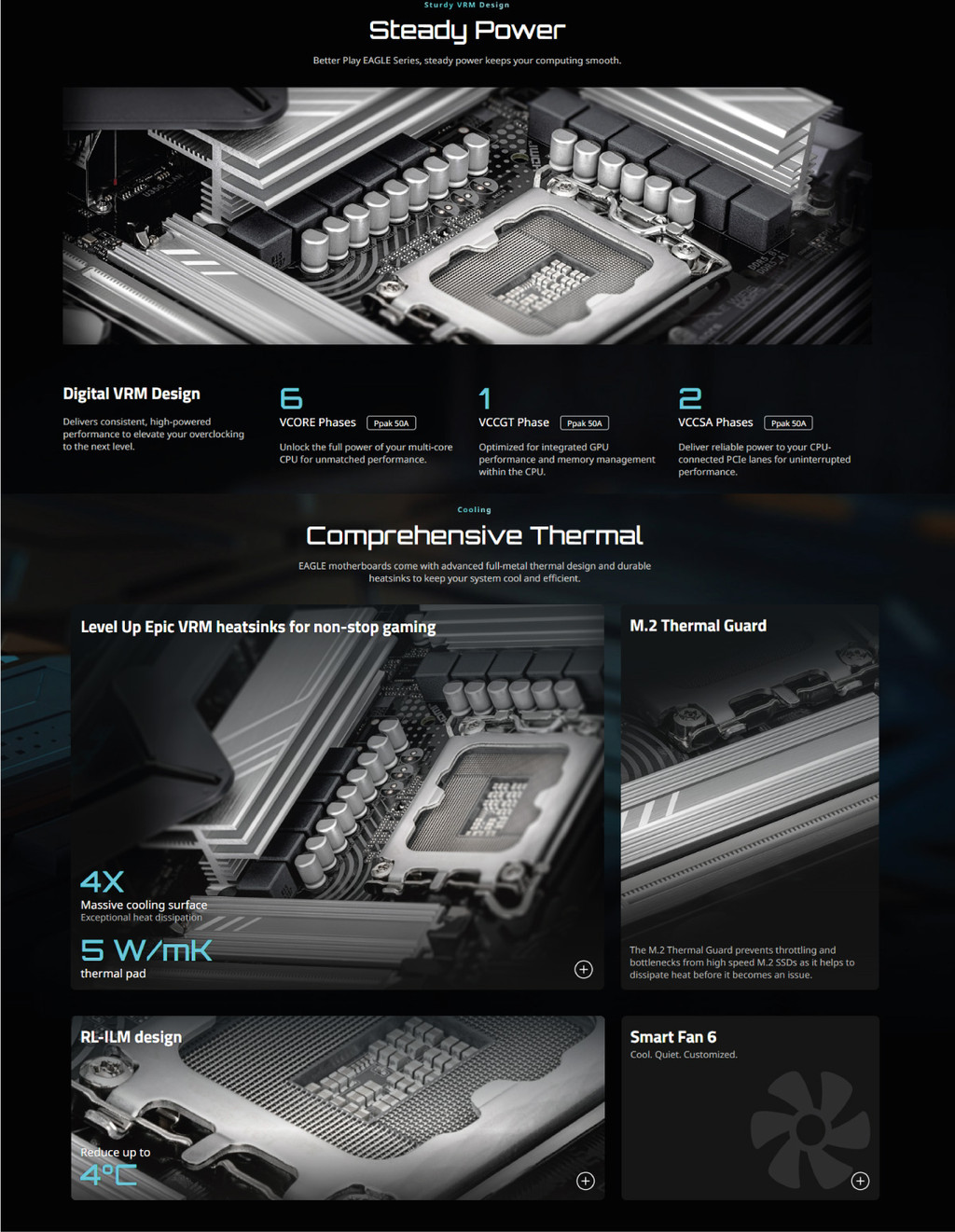

• 6+1+2 Digital VRM Design
• PCIe 5.0 Ready
• M.2 Thermal Guard
• Wi-Fi EZ-Plug
• Q-Flash Plus
• Smart Fan 6
• GIGABYTE Control Center
• RGB Fusion Support
Operating System: Windows® 11 64-bit, Windows® 10 64-bit
Dimensions & Weight
Dimensions: 24.4 x 22.5 x 2.0 cm
Weight: 1.60 kg
Warranty: 3 Years Warranty
