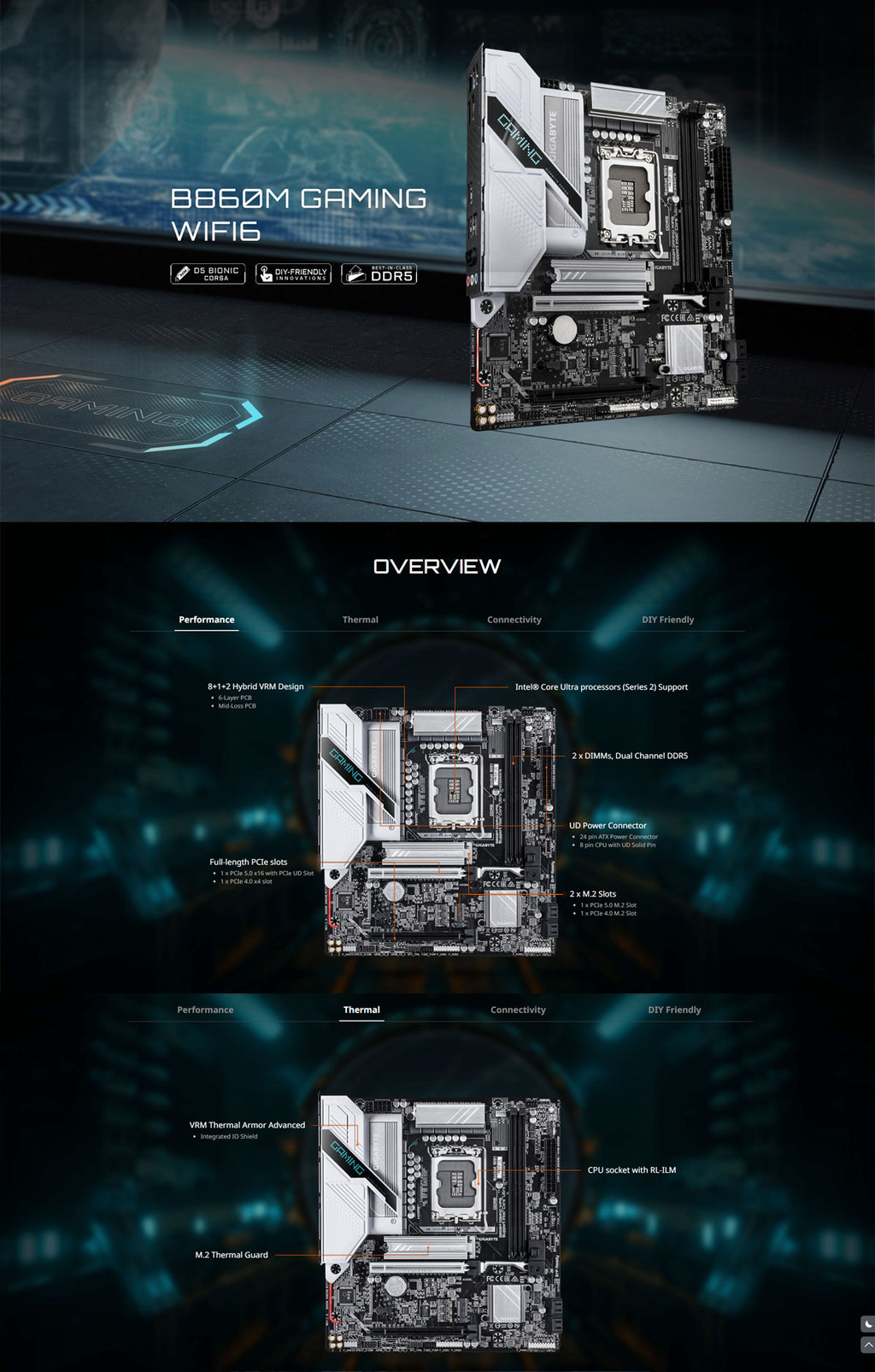

Product Highlights
• Intel B860 chipset motherboard supporting Intel Core Ultra processors (LGA1851)
• DDR5 memory support up to 9066 MT/s (OC) for next-gen performance
• PCIe 5.0 x16 slot for latest GPU support
• PCIe 5.0 M.2 slot for ultra-fast NVMe SSD
• WiFi 6 + 2.5GbE LAN for fast and stable networking

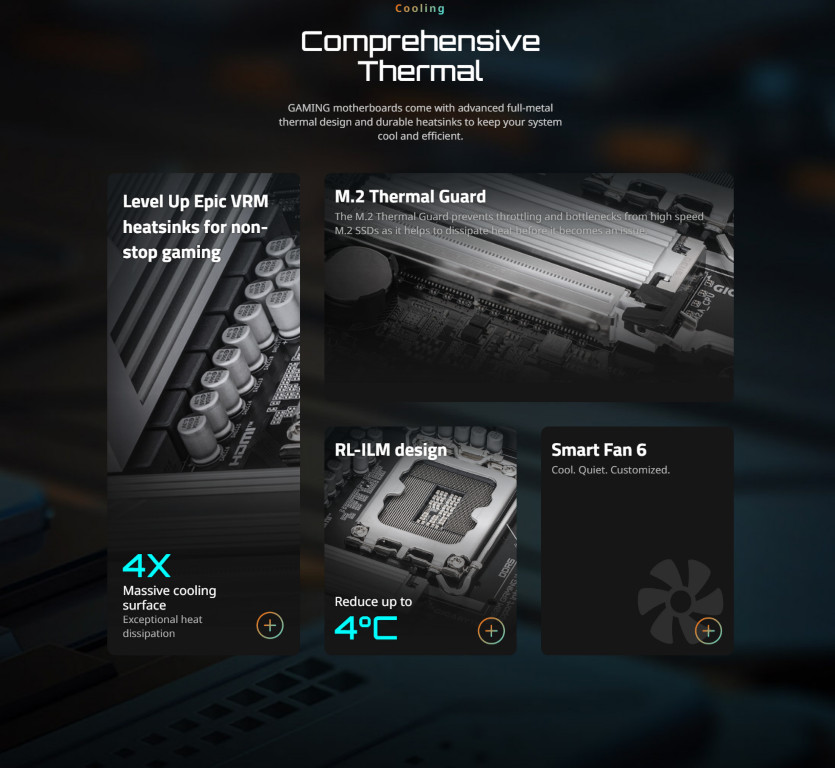

• Smart Fan and hardware monitoring for optimized cooling control
• Q-Flash Plus for easy BIOS update without CPU installation
• RGB Gen2 headers for customizable lighting setup
Key Specifications
Product Type: mATX Motherboard
Model: B860M GAMING WIFI6
Chipset: Intel B860
Socket: LGA1851
CPU Support: Intel Core Ultra Processors
Memory:
2 × DDR5 DIMM Slots
Max Memory: Up to 128GB
Memory Speed: Up to 9066 MT/s (OC)
Expansion Slots:
1 × PCIe 5.0 x16
1 × PCIe 4.0 x16 (x4 mode)
Storage:
1 × M.2 PCIe 5.0 x4
1 × M.2 PCIe 4.0 x4
4 × SATA 6Gb/s (RAID 0/1/5/10)
Audio:
Realtek Audio Codec
7.1-Channel High Definition Audio
S/PDIF Out support
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless:
Realtek® Wi-Fi 6 RTL8851BE
Bluetooth 5.3
Support for 11ax 80MHz wireless standard
USB:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

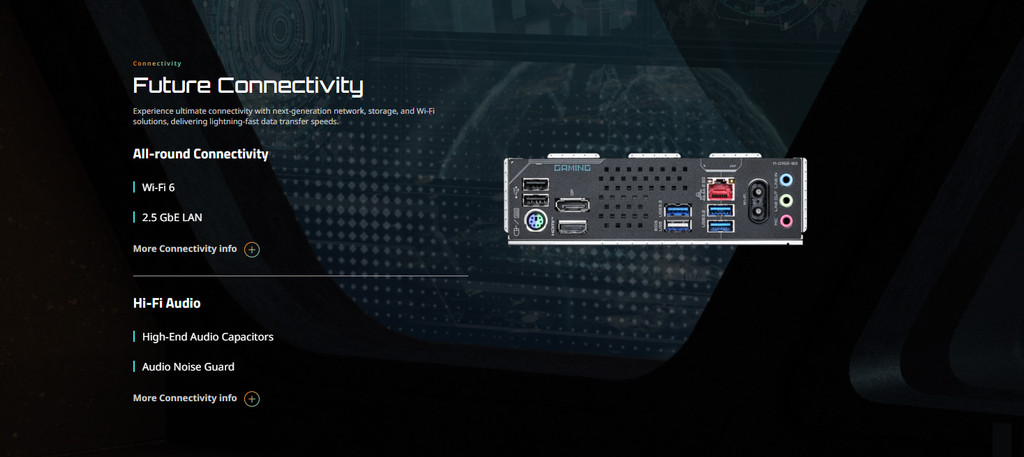

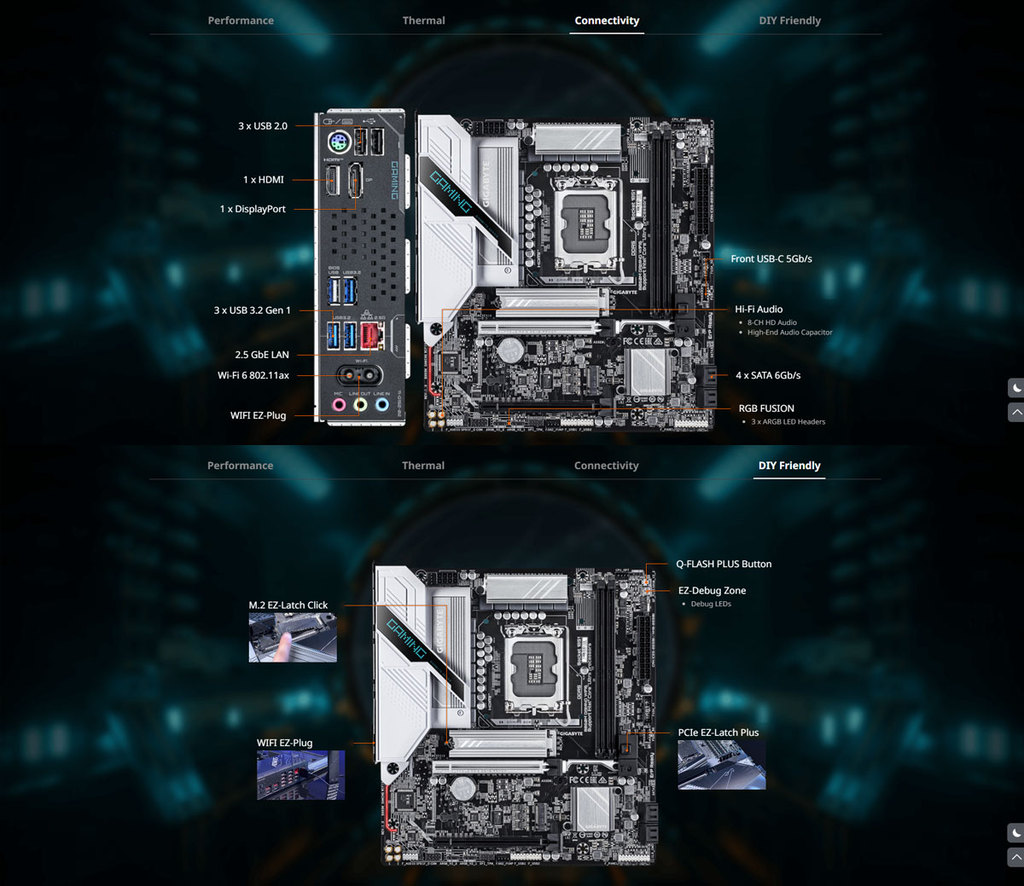

Back Panel Connectors:
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
I/O Controller: iTE® I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System: Support for Windows 11 64-bit. Windows 10 64-bit
Dimensions & Weight
Form Factor: Micro-ATX
Dimensions: 24.4cm x 22.5cm
Warranty: 3 Years Warranty
