Technical Specs :-
๐๐๐ :
Supports AMD Ryzenโข 9000/ 8000/ 7000 Series Desktop Processors
ย
๐๐๐๐๐๐๐ :
AMD X870E
ย
๐๐๐๐๐๐ :
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPOโข) and Extreme Memory Profile (XMP) memory modules
ย
๐๐๐๐๐ ๐๐๐๐๐๐ :
Integrated Graphics Processor with AMD Radeonโข Graphics support+ASMedia USB4ยฎ Controller:
- 2 x USB4ยฎ USB Type-Cยฎ ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
ย
Integrated Graphics Processor with AMD Radeonโข Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support native HDMI 2.1 TMDS compatible ports.
ย
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version
ย
๐๐๐๐๐๐๐๐๐ ๐๐๐๐ :
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzenโข 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
ย
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzenโข 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzenโข 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
ย
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
ย
๐๐๐๐๐ :
Realtekยฎ ALC1220 CODEC
High Definition Audio
2/4/5.1/7.1-channel
ย
๐๐๐ :
Realtekยฎ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
ย
๐๐๐๐๐๐๐๐ ๐๐๐๐๐๐๐๐๐๐๐๐ :
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
ย
Realtekยฎ Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
ย
๐๐๐๐๐๐๐ :
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzenโข 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzenโข 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzenโข 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
ย
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzenโข 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzenโข 8000 Series-Phoenix 1/Phoenix 2 processor is used.
ย
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzenโข 9000 Series Processors.
ย
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
ย

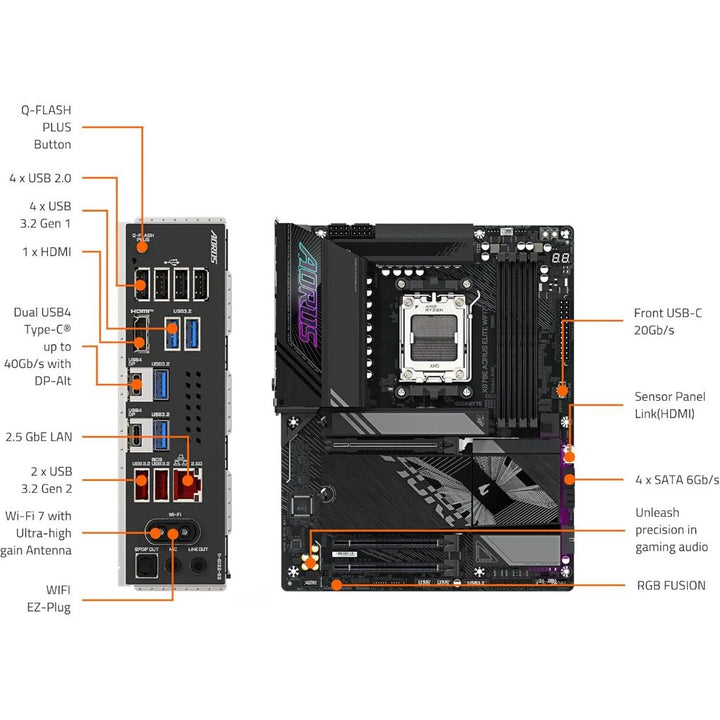

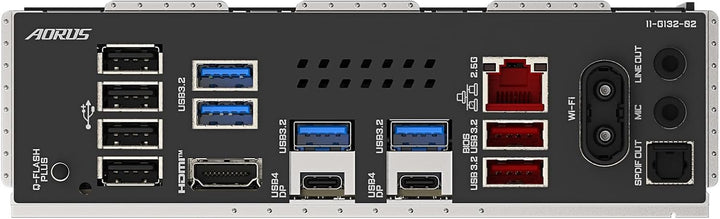

๐๐๐๐ ๐/๐ :
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x HDMI port (Note)
2 x USB4ยฎ USB Type-Cยฎ ports (DisplayPort (Note))
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
ย
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-Cยฎ header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
ย
Bundled Software
Nortonยฎ Internet Security (OEM version)
LAN bandwidth management software
ย
๐ ๐๐๐ ๐ ๐๐๐๐๐ :
FULL ATX (ATX), 30.5cm x 24.4cm
