Specifications
✅AX3000

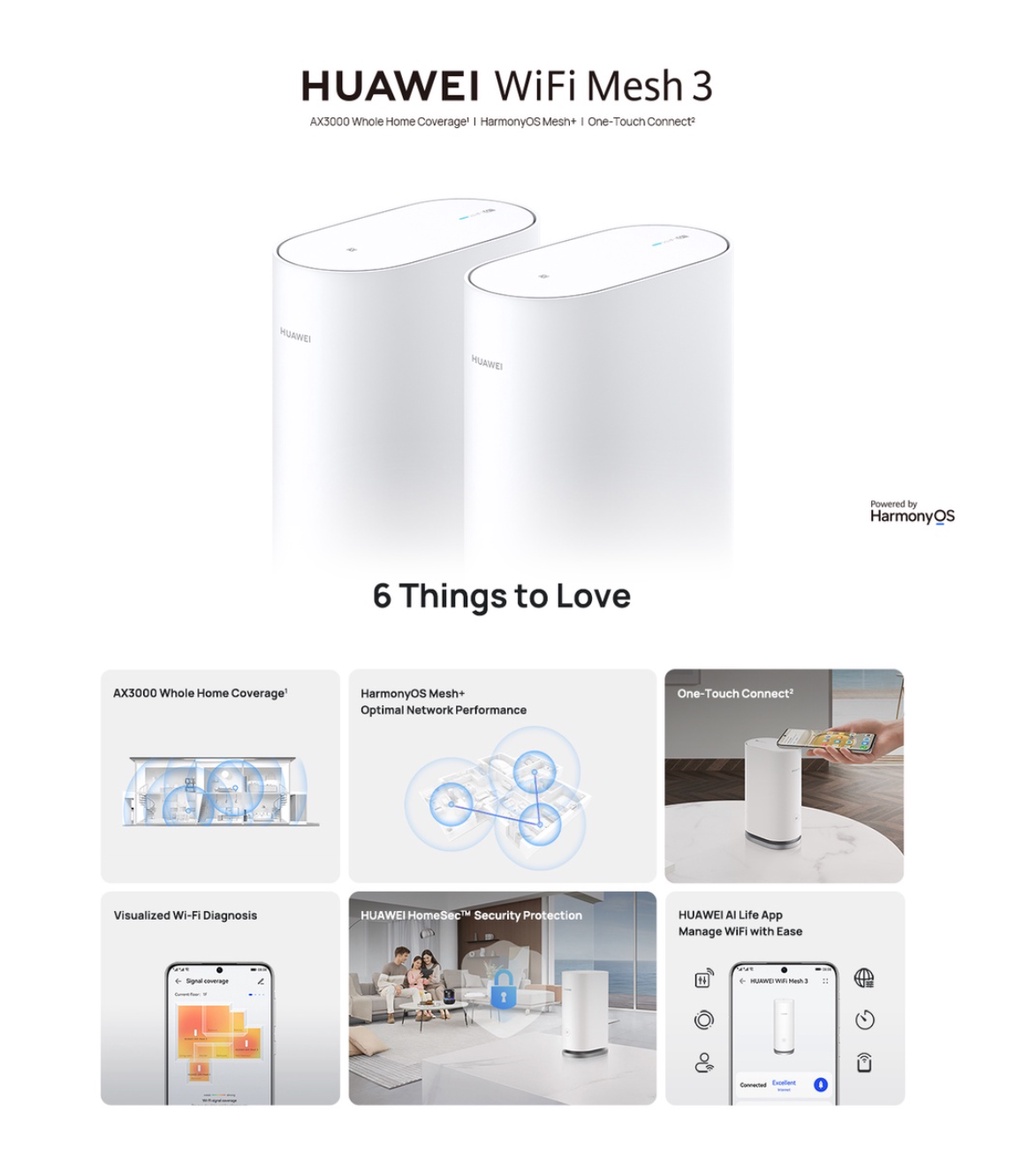

-Whole Home Coverage: Meet HUAWEI WiFi Mesh 3.
-It's a powerful whole-home mesh system that fills every room and connects all of your devices.
-Set up by simply plugging in, then enjoy a strong and stable connection throughout your home.
-Wi-Fi 6 Plus, Speed Accelerated to 3,000 Mbps: HUAWEI Wi-Fi 6 Plus boosts overall maximum speeds to 3,000 Mbps1
-HUAWEI WiFi Mesh 3 keeps all your Wi-Fi devices connected, supporting up to 250+ connections3. You can watch HD movies, tune into live streams, and play online games all at the same time, with less buffering.
-Seamless Roaming, Constant
-White
-Height: 174 mm
-Width: 70 mm
-Depth: 107 mm
-Weight : About 413 g (without packaging)
-Internal antennas
-Supports HUAWEI HomeSecâ„¢Â
-Interface: Power port, Network port, Reset button (pinhole), and H button
Transmission Standard
-IEEE 802.11b/g/n/ax
-2 x 2 MIMO 2.4 GHz
-IEEE 802.11a/n/ac/ax
-2 x 2 MIMO 5 GHz
Wireless Transmission Rate
-2.4 GHz: 574 Mbps (theoretical)Â
-5 GHz: 2402 Mbps (theoretical)Â
-Total theoretical negotiated rate: 2976 Mbps
Wireless Frequency Band
-2.4 GHz & 5 GHz (supports prioritize 5 GHz)
Memory
-256 MB RAM + 128 MB ROM
*Due to limitations in CPU processing power, memory used by the operating system and pre-installed applications, the actual space available to users may be less than the stated memory capacity. Actual memory space may change due to application updates, user operations, and other related factors.
Network Port
WAN/LAN Auto-adaptive Port
-The drop network cable can be inserted into any one of the three 10/100/1000 Mbps auto-negotiation Ethernet ports to access the Internet.
Button
-HUAWEI H (or Hi) Button (compatible with WPS): Connect to HarmonyOS Connect devices or WPS wireless devices with a press of H button
-Reset Button: Independent Reset pinhole
-LED Indicator: One "H" indicator (red/blue)
Power Supply
-Power Supply: 12V DC, 1A
-Power Consumption: < 12 W
-Input Voltage: 100 – 240VÂ
-Input Voltage Frequency: 50 – 60 Hz
Software Functions
802.11kvr protocol, HarmonyOS Mesh+, PPPoE/DHCP/static IP address WAN connection methods, Wi-Fi timer, Guest Wi-Fi, Device speed limiting, Wi-Fi access control, Parental control, VPN pass through, DMZ/virtual server
What's In The Box
HUAWEI WiFi Mesh 3: 1Â (standard configuration)
Power Adapter: 1Â (standard configuration)
Quick Start Guide: 1Â (standard configuration)
Warranty Card:1 (standard configuration)
Ethernet Cable: 1 (standard configuration)
