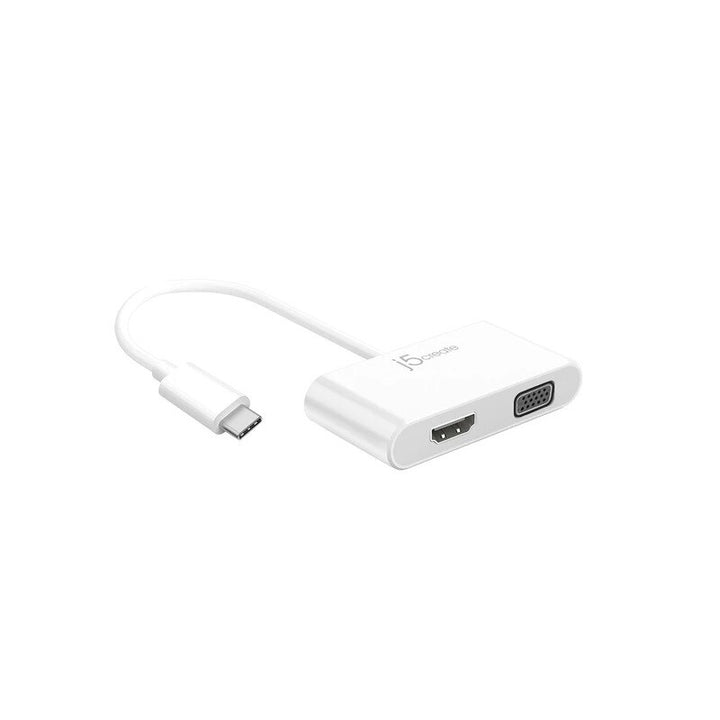

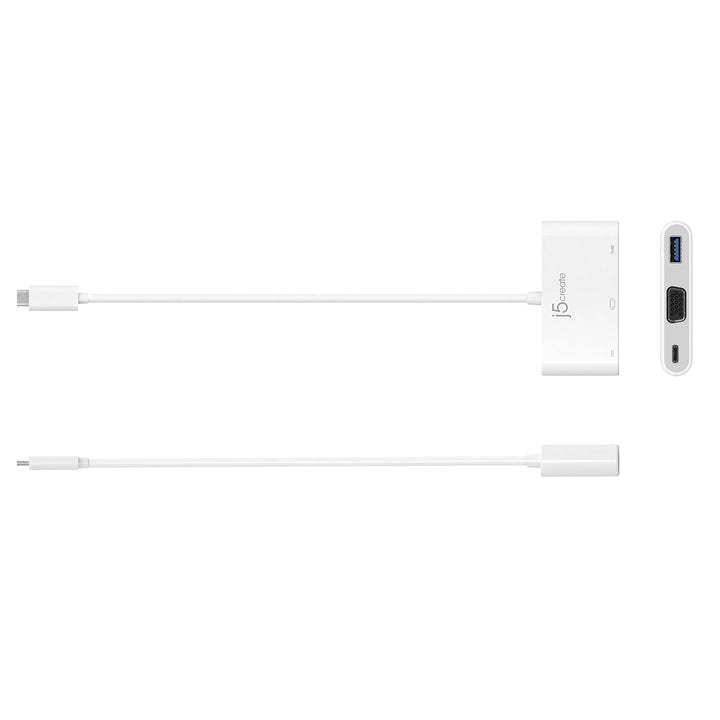

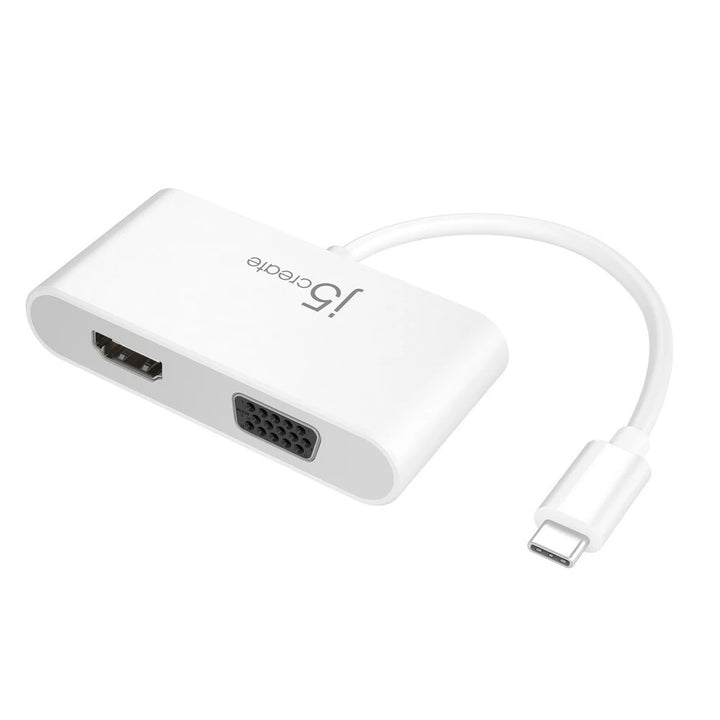

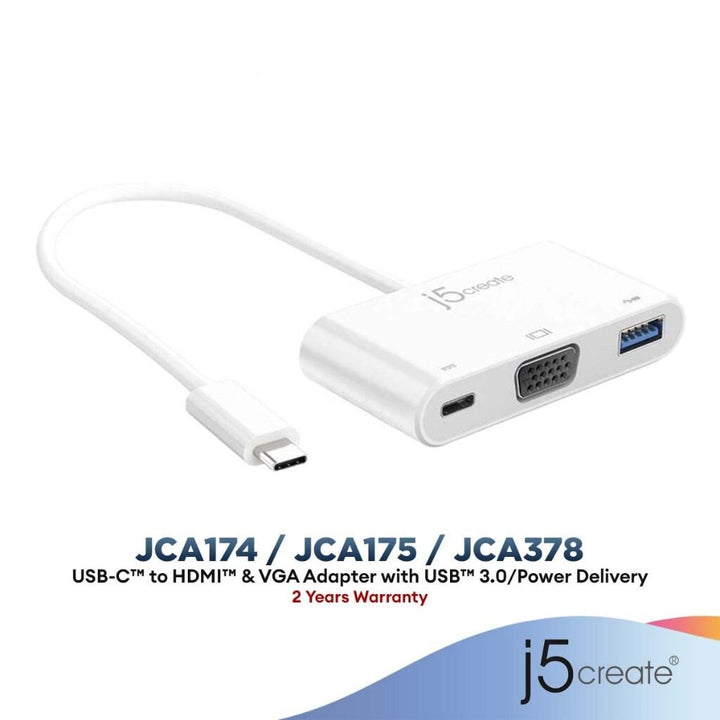

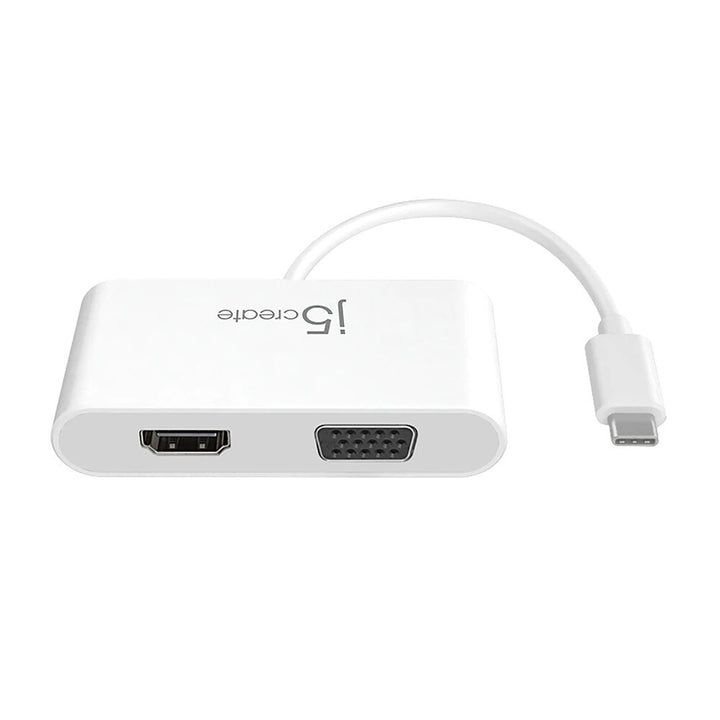

J5create USB-C Type-C to HDMI / VGA Multi Display Converter with USB 3.0 JCA175 similar j5create JCA378 | j5create JCA174 USB-C to VGA & HDMI Adapter

RM109.00
Availability : In Stock Pre order Out of stock

Model: JCA174

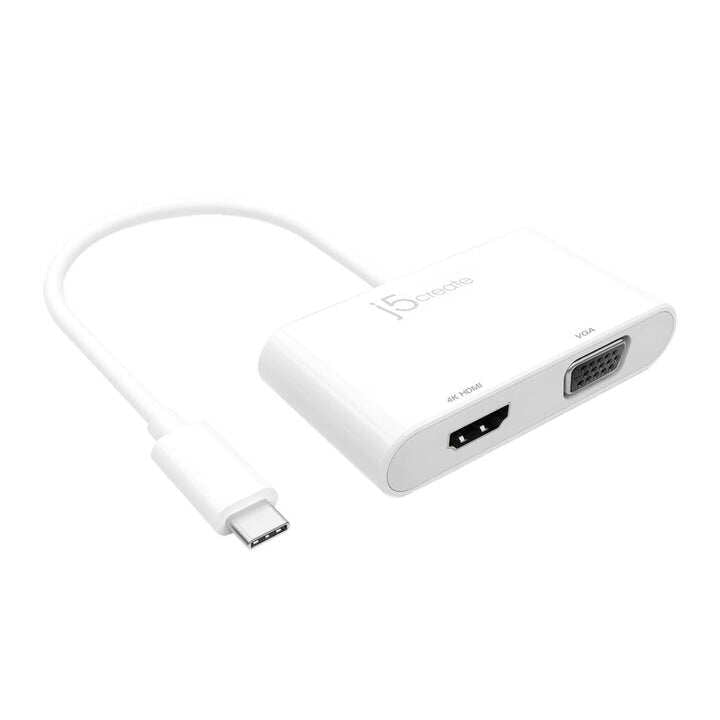

JCA174

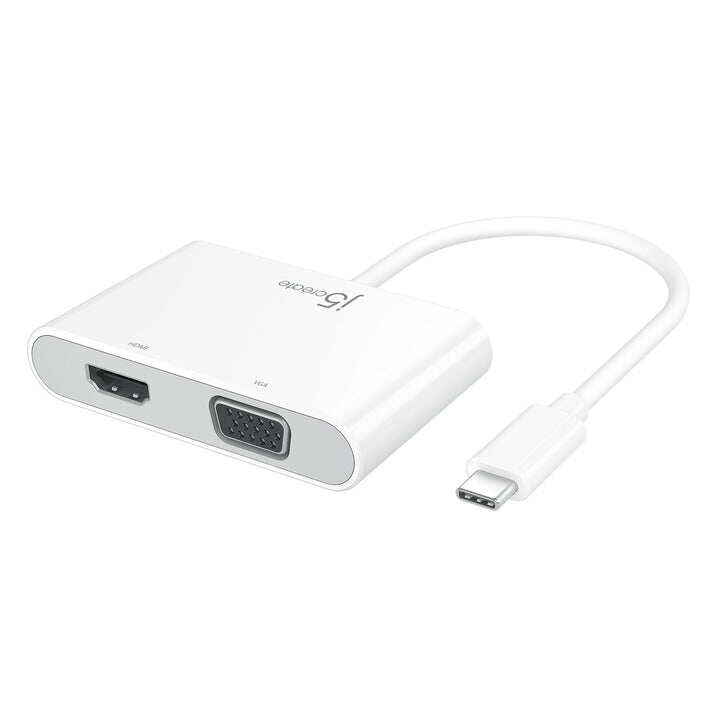

JCA175 with USB 3.0

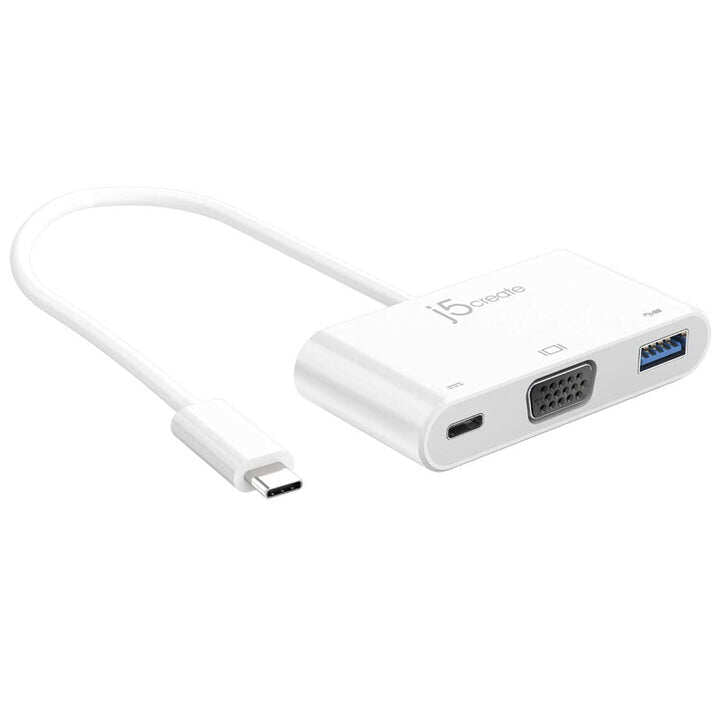

JCA378 with USB 3.0
Add to Wishlist

Share on:

Overview

Interface

Interface:

✅USB-C™ male connector

Video Interface:

✅HDMI™ female connector

✅VGA female connector



Functions

Display:

✅HDMI™ display resolution: 3840 X 2160 @ 60 Hz

✅VGA display resolution:1920 X 1200 @ 60 Hz



Physical Specifications

Housing Material:

✅Plastic

Dimensions

✅Main body: 75.4 (H) x 37.8 (W) x 15.2 (D) mm

✅Cable Length: 5.90 in./15 cm

Weight

✅Approximately 38.5g



System Requirements

✅Available DisplayPort™ Alt Mode over USB-C™ port



📦Package Contents📦

✅USB-C™ to Dual VGA & HDMI™ Multi-Display Adapter

✅Quick Installation Guide



Features

• Supports HDMI™ resolutions up to 4K at 3840 x 2160 @ 30 Hz; VGA resolutions up to 1920 x 1200 or 1080P @ 60 Hz. Supports Mirror and Extended modes.

• When you connect both VGA and HDMI™, it only supports Mirror Mode with 1920 x 1080 @ 60 Hz

• USB™ 3.0 power delivery supports 100W upstream charging

• USB™ 3.0 supports up to 5 Gbps data transfer

• No software/drivers required



Interface

Interface:

✅USB-C™ male connector

Video Interface:

✅HDMI™ female connector

✅VGA female connector

USB™ Type-A 3.0:

✅USB™ Type-A 3.1, 5G female connector

USB-C™ Port:

✅USB-C™ upstream port female connector



Functions

Display:

✅HDMI™ display resolution: 3840 x 2160 @ 30 Hz

✅VGA display resolution:1920 x 1200 @ 60 Hz

USB™ Type-A 3.0:

✅USB™ 3.1 Gen 1, 5 Gbps

USB-C™

✅Power delivery 3.0 x 1: supports 100W



Physical Specifications

Housing Material:

✅Plastic

Dimensions

✅Main Body: 76(H) x 45(W) x 16(D) mm

✅Cable Length: 5.90 in./15 cm

Weight

✅Approximately 42g



System Requirements

✅Available DisplayPort™ Alt Mode over USB-C™



📦Package Contents📦

✅USB-C™ to HDMI™ & VGA 4-in-1 with USB™ 3.0/Power Delivery Adapter

✅Quick Installation Guide



• 2 USB™ 3.0 SuperSpeed ports

• Transfer rates up to 5 Gbps enables bulky file backup

• Backwards compatible with USB™ 2.0 and USB™ 1.0 devices

• Hot-swapping connection/disconnection without powering down

• DisplayPort™ Alt Mode for VGA

• Supports display max resolution: 1920 x 1200 @ 60 Hz

• Supports 1080p Video Playback

• Supports Display Modes: Primary, Extended, Mirror

• Display Rotation: 0°, 90°, 180°, 270°



Interface

Host Interface:

✅USB Type-C™ Male

Video Interface

✅VGA Female connector

USB™ Port

✅USB™ 3.0 Female connector



Power

Power Mode:

✅Bus-Powered or Self-Powered



Function

Display:

✅Display resolution: 1920 x 1200 @ 60 Hz



Physical Specifications

Housing Material:

✅Plastic

Dimensions

✅Main Body: 75.4(H) x 37.8(W) x 15.2(D) mm

✅Cable Length: 9.8 in./25 cm

Weight

✅Approximately 43g



System Requirements

✅Available USB Type-C™ port (USB™ 3.0 is recommended)

✅Available DisplayPort™ Alternate Mode over USB Type-C™ connector. DisplayPort™ v1.2 required on graphics card or video source to support 1920 X 1200 @ 60 Hz resolution.

✅Available USB™ power delivery over USB Type-C™ to support upstream charging

macOS® X 10.8 or later



📦Package Contents📦

✅JCA378 USB Type-C™ to VGA & USB™ 3.0 with Power Delivery

✅Quick Installation Guide
