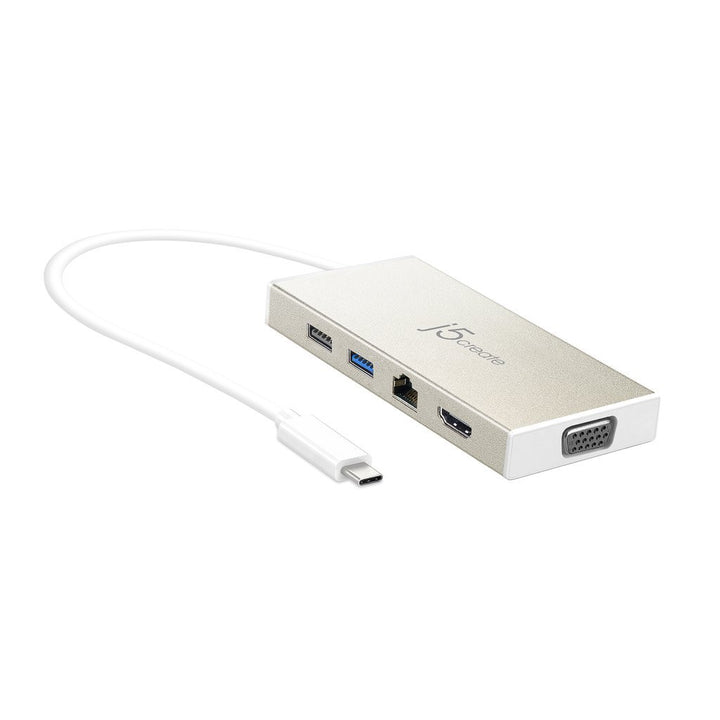

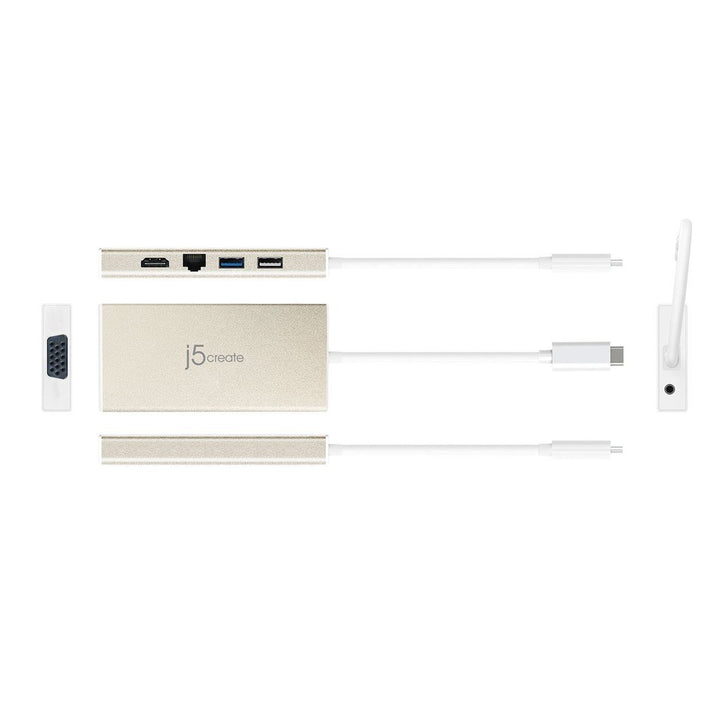

J5Create USB3.1 Type-C Mini Dock (VGA/HDMI/RJ-45/USB3.1 Hub/PD2.0) JCD376 Adapter

In stock
847626001963
Dock
J5Create
RM395.00
RM395.00
customers are viewing this product

PRODUCT FEATURES

  • Dual HDMI/VGA individual display output
  • Supports 1080P @ 60Hz resolutions up to 2048 x 1152
  • Supports HDMI 4K @ 30 Hz
  • USB 3.1 Type-C port x 2
  • Quickly add Gigabit Ethernet port

Specification:

Interface

Host Interface

USB 3.0 Type-C male Type-C Connector

Video Interface

• HDMI Female Connector x 1
• VGA-DB 15 pin Female Connector x 1

Type-C Port

USB Type-C female connector
Ethernet Port RJ-45 female connector(gigabit Ethernet)

Type-C Port

USB Type-C female connector
USB Port • USB 3.1 type-A female connector x 1
• USB 2.0 type-A female connector x 1

Power

Power Mode

Bus-powered or self-powered

Function

HDMI

Display resolution:
4K @ 30 Hz

VGA

Display resolution:
1920 x 1200 @ 60 Hz

Type-C

Upstream & downstream: charging, power delivery 2.0 and data transfer

USB

• USB 3.1 Gen1 5 Gbps
• USB 2.0 480 Mbps

Ethernet

Transfer rate: 1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab,IEEE 802.3x

Modes:
  • Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame
  • Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
  • Supports Jumbo Frame - Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload

    Physical Specifications

    Dimensions

    Main body:
    2.1 (W) x 4.5 (H) x 0.6 (D) inch
    5.33 (W) x 11.5 (H) x 1.52 (D) cm
    Cable length: 8.3 inch (21 cm)

    Weight

    Approximately 0.2 lbs (0.095 kg ) (including cable)



    SYSTEM REQUIREMENTS

    • Available USB type-C port (USB 3.1 is recommended)
    • Available DisplayPort alt mode over USB type-C port
    • Available USB power delivery 2.0 over USB type-C to support upstream charging
    • HDMI: DisplayPort v1.2 required on graphics card or video source to support 4K @ 30 Hz resolution
    • VGA: DisplayPort v1.1a required on graphics card to support 1920 x 1200 @ 60 Hz



    Note:

    • If you are using a high-powered USB device please attach the type-C power adapter to the JCD376 power delivery port to ensure maximum performance
    • To ensure files copy completely, do not remove the type-C power adapter while copying files



    Package Contents

    • JCD376 USB 3.1 type-C fully functional mini dock
    • Quick installation guide
