Product Highlights
• Supports Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold, and Celeron® processors
• DDR5 memory support up to 256GB and 6800+MHz OC
• Built-in Intel® Wi-Fi 6E and Bluetooth® 5.3
• Realtek® 2.5Gbps LAN for fast wired networking
• Dual M.2 slots and 4 × SATA 6G ports for storage expansion
• Dual HDMI™ and Dual DisplayPort outputs for multi-display setup
Key Specifications
Product Type: Intel Motherboard

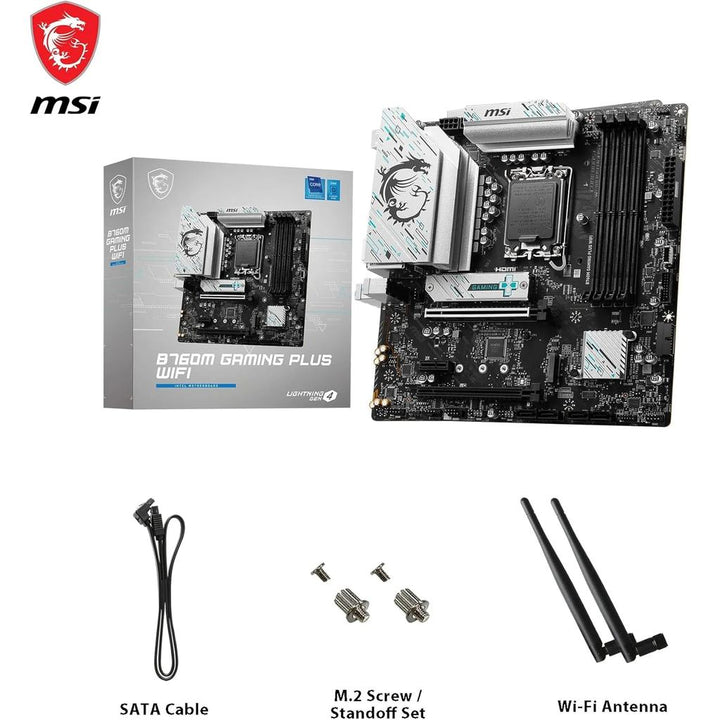

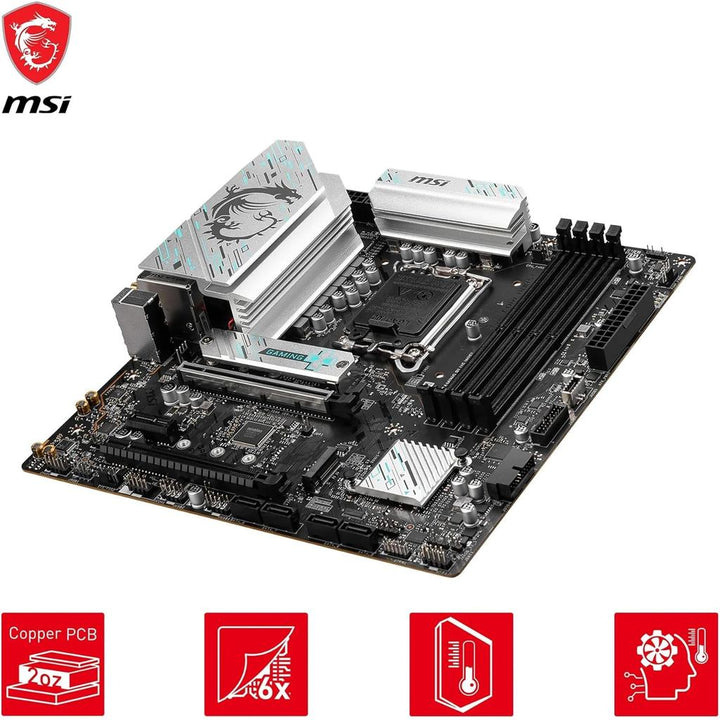

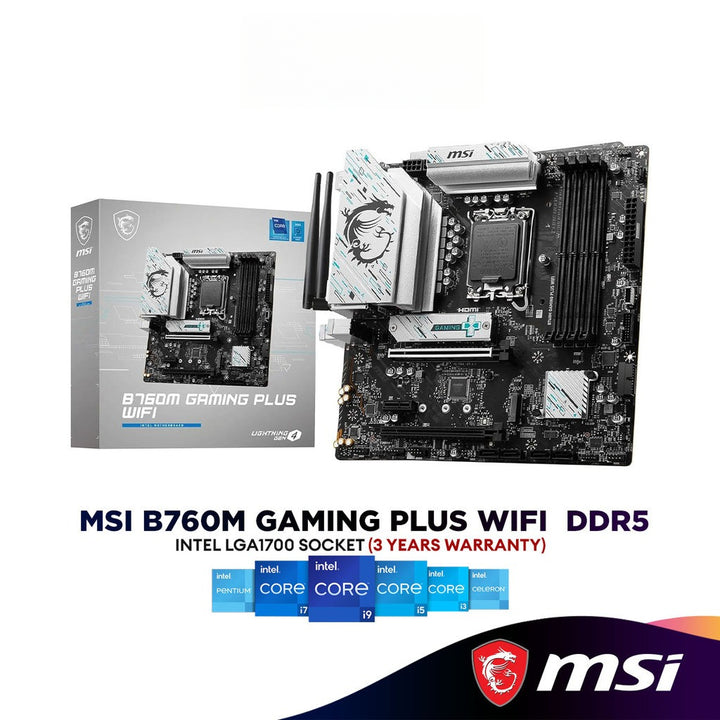

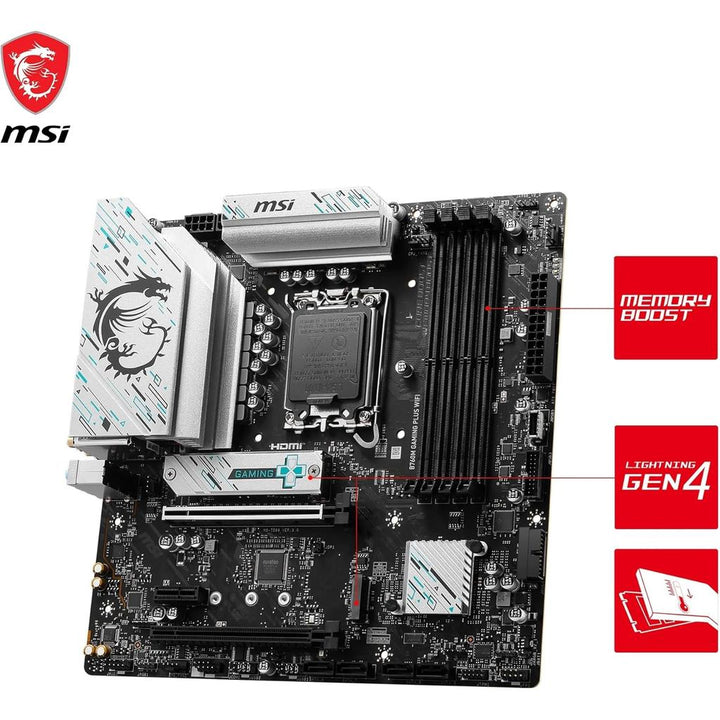

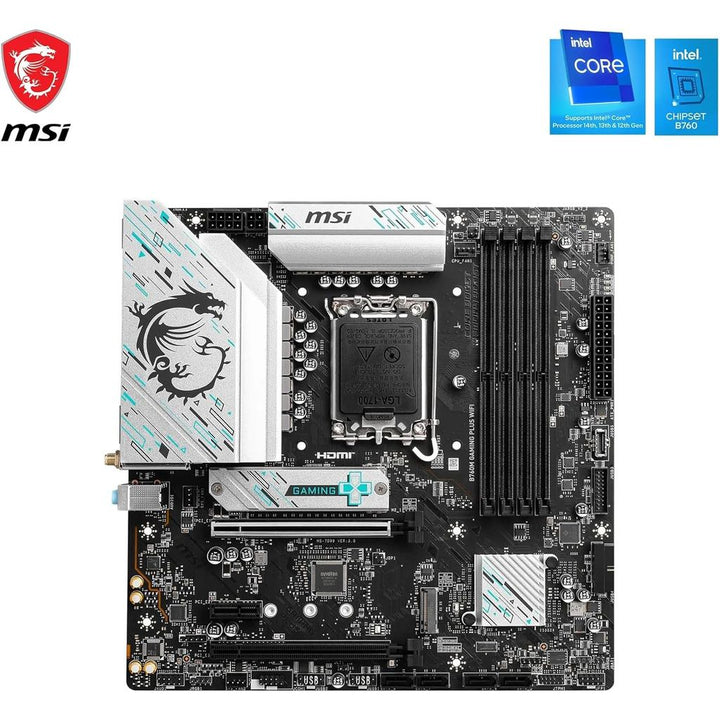

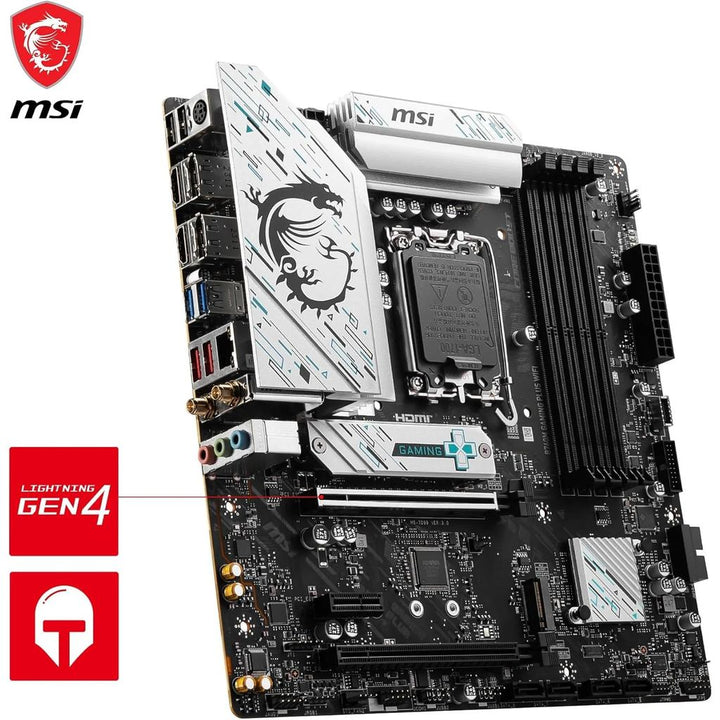

Model: MSI B760M GAMING PLUS WIFI
Chipset: Intel® B760
CPU Socket: Intel LGA1700
CPU Support
• Supports Intel® Core™ 14th Gen Processors
• Supports Intel® Core™ 13th Gen Processors
• Supports Intel® Core™ 12th Gen Processors
• Supports Intel® Pentium® Gold Processors
• Supports Intel® Celeron® Processors
Memory
• 4 × DDR5 DIMM Slots
• Maximum Memory Capacity: 256GB

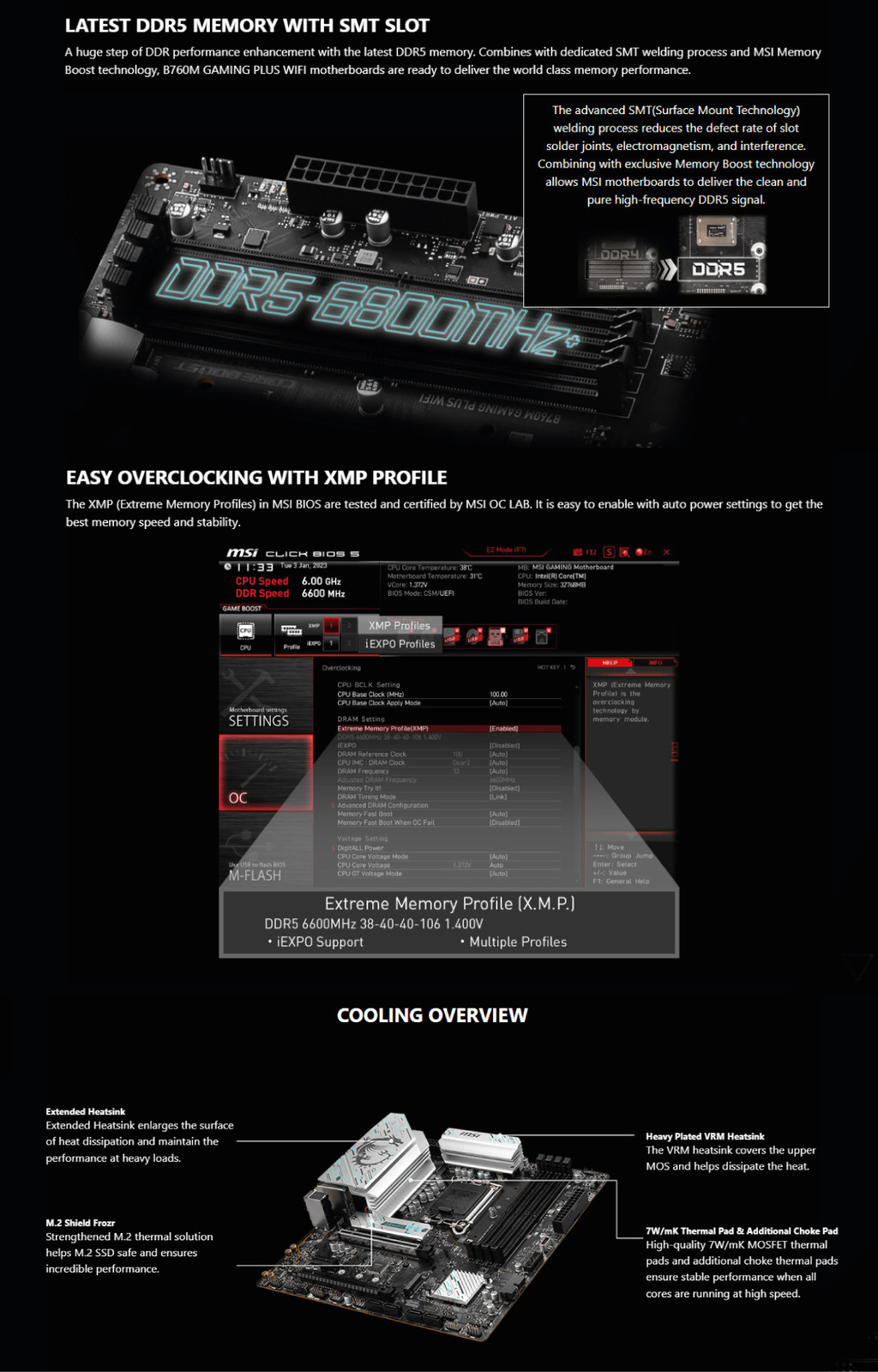

• Memory Support Up To 6800+MHz (OC)
• Supports Dual-Channel Mode
• Supports Non-ECC, Unbuffered Memory
• Supports Intel® Extreme Memory Profile
Video Output
• 2 × HDMI™ 2.1, Max 4K 60Hz
• 2 × DisplayPort 1.4, Max 4K 60Hz
Expansion Slots
• 2 × PCIe x16 Slots
• 1 × PCIe x1 Slot
• PCI_E1: PCIe 4.0 x16 from CPU
• PCI_E2: PCIe 3.0 x1 from Chipset
• PCI_E3: PCIe 4.0 x4 from Chipset
Storage
• 2 × M.2 Slots
• M.2_1: PCIe 4.0 x4, supports 2280 / 2260 / 2242 devices
• M.2_2: PCIe 4.0 x4 / SATA mode, supports 2280 / 2260 / 2242 devices
• 4 × SATA 6G Ports
• Note: SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot
Audio
• Realtek® ALC897 Codec
• 7.1 CH HD Audio
LAN
• Realtek® 2.5Gbps LAN
Wireless Connectivity
• Intel® Wi-Fi 6E
• Bluetooth® 5.3
• Supports 2.4GHz / 5GHz / 6GHz Bands
• Supports MU-MIMO TX/RX
• Supports 802.11 a / b / g / n / ac / ax
Internal I/O
• 1 × ATX Power Connector
• 2 × CPU Power Connectors
• 1 × CPU Fan Header
• 1 × Pump Fan Header
• 2 × System Fan Headers
• 2 × Front Panel Headers
• 1 × Chassis Intrusion Header
• 1 × Front Audio Header
• 1 × COM Port Header
• 2 × Addressable V2 RGB LED Connectors
• 1 × RGB LED Connector
• 1 × TPM Pin Header
• 4 × USB 2.0 Ports
• 4 × USB 5Gbps Type-A Ports
• 1 × USB 5Gbps Type-C Port

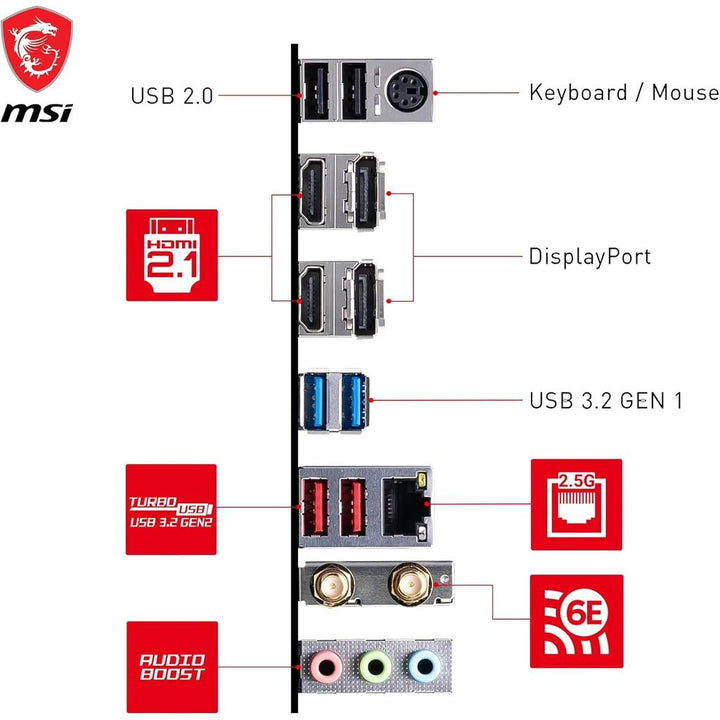

Rear I/O
• Keyboard / Mouse Port
• DisplayPort
• HDMI™
• USB 3.2 Gen 1 5Gbps Type-A
• USB 3.2 Gen 2 10Gbps Type-A
• USB 2.0
• 2.5G LAN
• Wi-Fi / Bluetooth
• Audio Connectors
USB
• 2 × USB 2.0 Rear
• 4 × USB 2.0 Front
• 2 × USB 5Gbps Type-A Rear
• 4 × USB 5Gbps Type-A Front
• 1 × USB 5Gbps Type-C Front
• 2 × USB 10Gbps Type-A Rear
LED Feature
• 4 × EZ Debug LED
Operating System Support
• Windows® 11 64-bit
• Windows® 10 64-bit
Dimensions & Weight
• Dimensions: 24.38 cm x 24.38 cm x 3.5 cm
• Weight: 1.0 kg – 1.2 kg
Warranty: 3 Years Warranty
