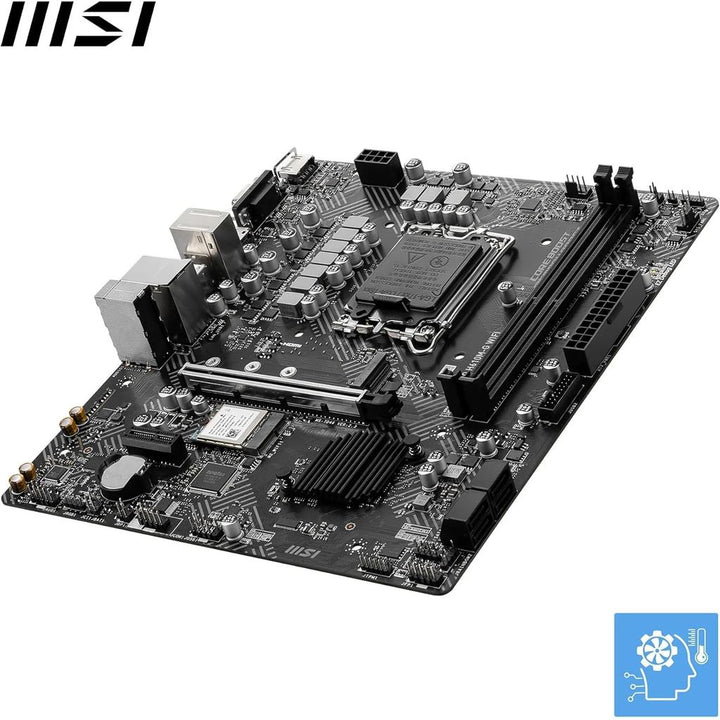

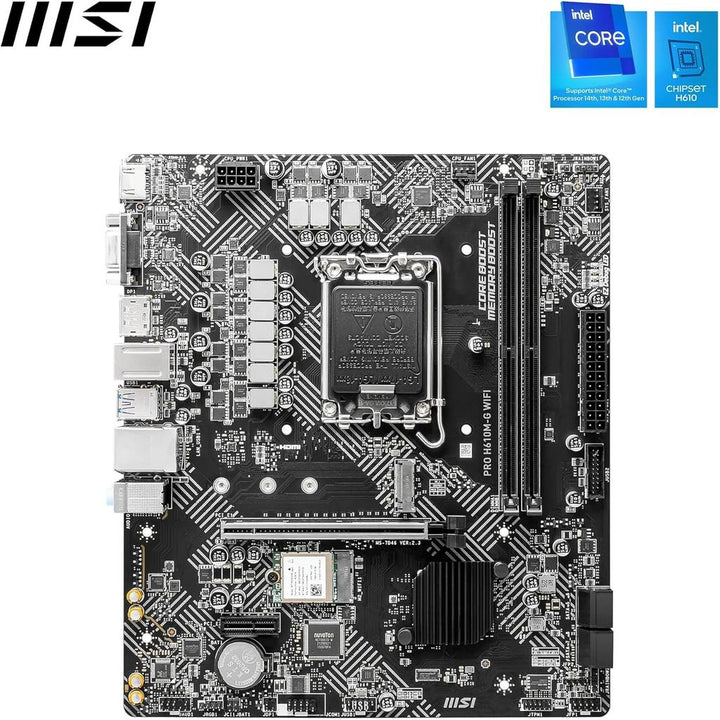

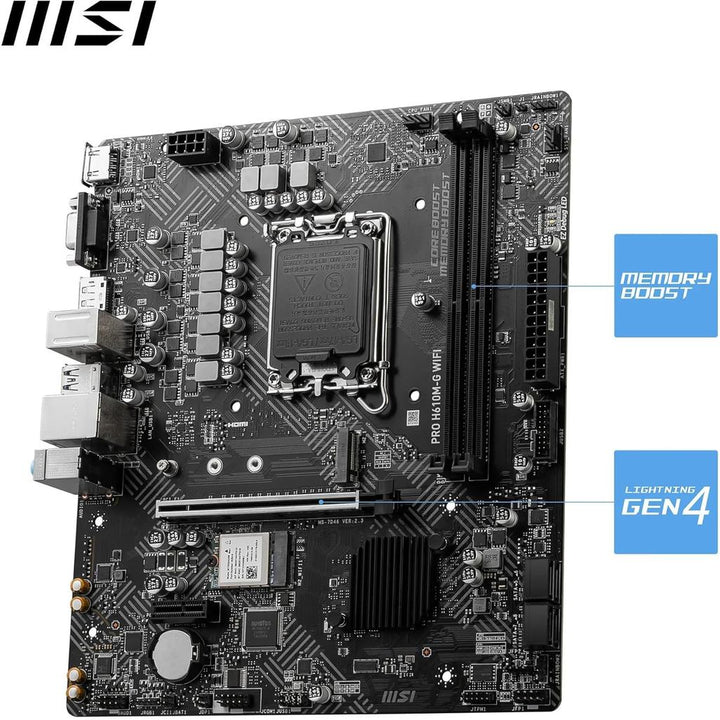

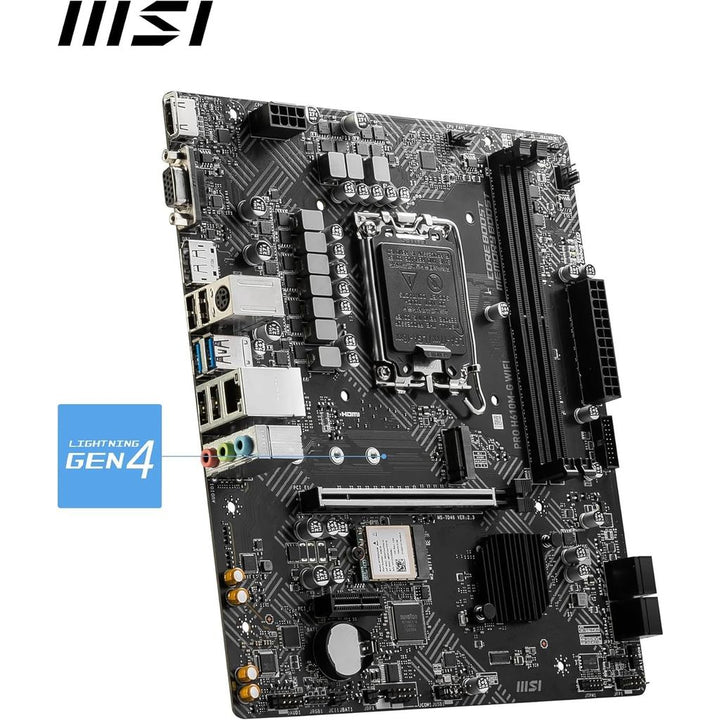

Technical Specs :-
CPU Support : 14th, 13th & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
Chipset : Intel H610
Memory : Dual Channel DDR5 Memory (2x DDR5 DIMM Slots) - 5600Mhz (OC)
Audio : Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
LAN : Intel® I219V 1Gbps LAN controller
VIDEO /O : 1x DisplayPort 1.4 (max 4K 60Hz), 1x HDMI™ 2.1 (max 4K 60Hz), 1x VGA (max 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz)
PCI-e Slot :-
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage :-
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
WIRELESS LAN & BLUETOOTHWi-Fi 6E:-
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
USB:-
4x USB 2.0 (Rear)
2x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
Rear I/O :-
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
LED FEATURE: 4x EZ Debug LED
FORM FACTOR : mATX (Micro ATX)
OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit
WARRANTY : 3 YEARS
