Product Highlights

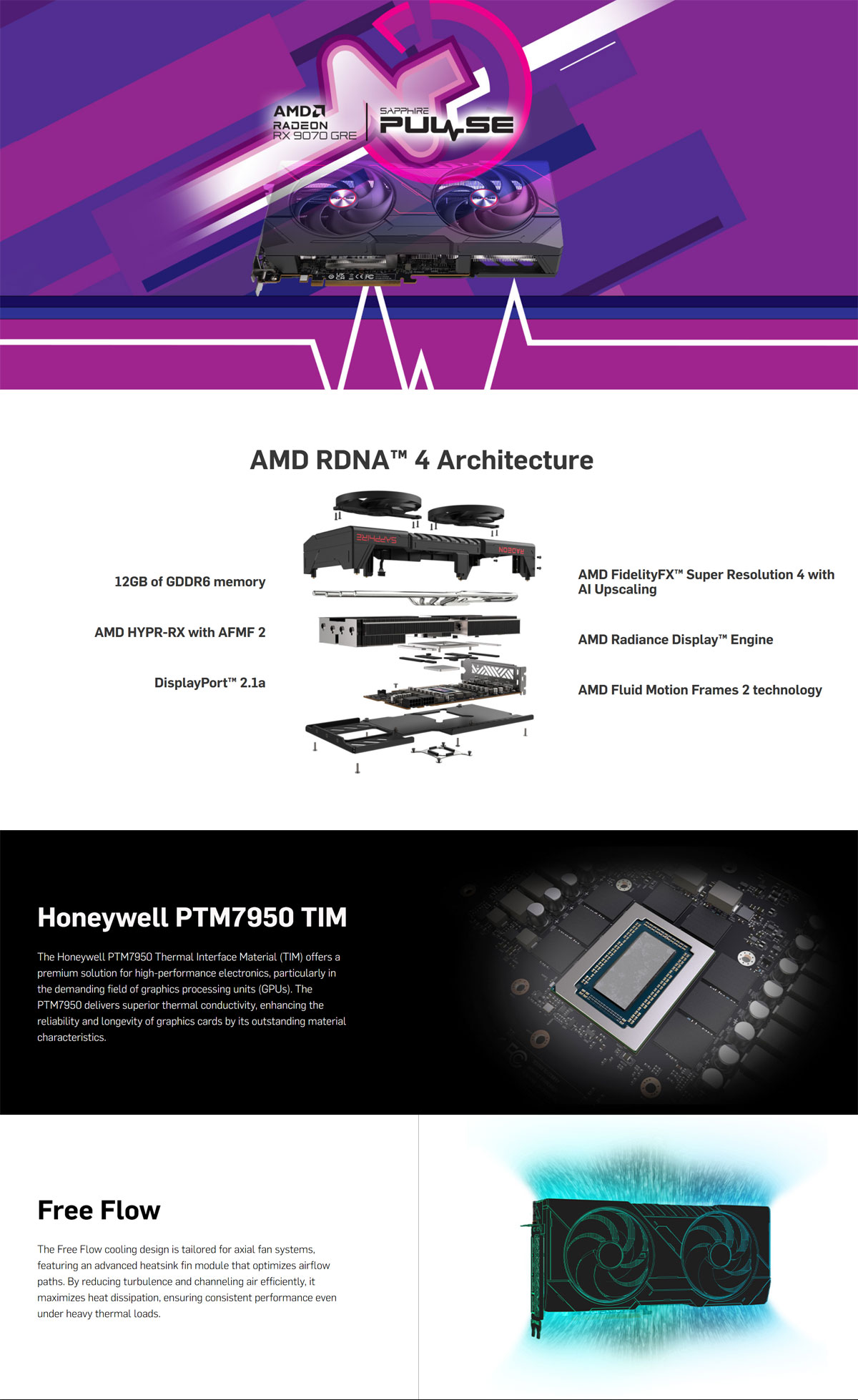

β’ AMD RDNA 4 Architecture with 12GB GDDR6 Memory
β’ AMD FidelityFX Super Resolution 4 with AI Upscaling
β’ Honeywell PTM7950 Thermal Interface Material for improved heat transfer

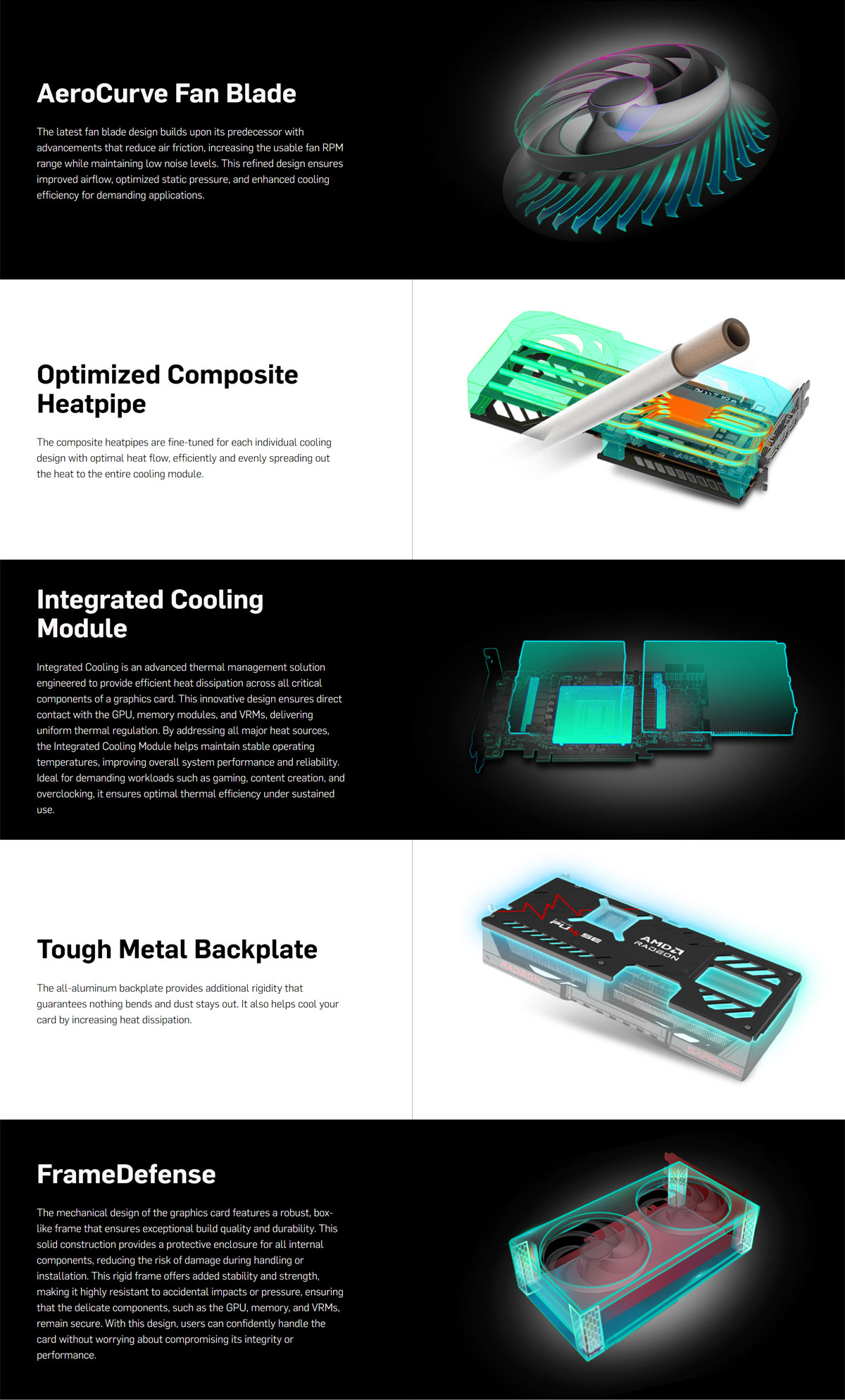

β’ Free Flow Cooling Design with AeroCurve Fan Blades for efficient airflow
β’ Optimized Composite Heatpipes for effective heat dissipation
β’ Integrated Cooling Module for GPU, Memory and VRM Cooling

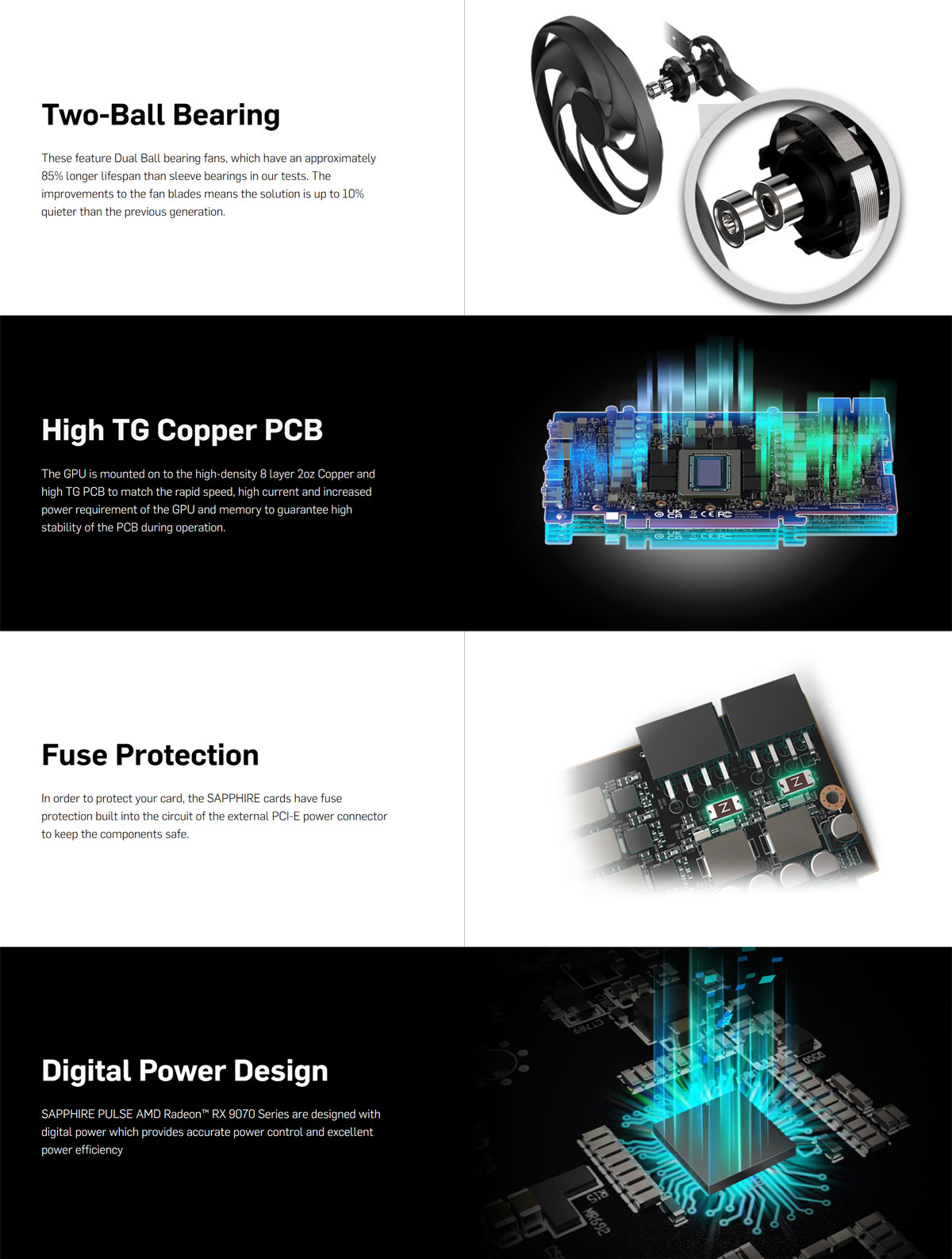

β’ Dual Ball Bearing Fans for quieter operation and longer lifespan
β’ Tough Metal Backplate with FrameDefense for enhanced durability
β’ High TG 8-Layer 2oz Copper PCB with Fuse Protection
β’ Digital Power Design for stable and efficient power delivery
β’ AMD HYPR-RX and Fluid Motion Frames 2
β’ AMD Radiance Display Engine with DisplayPort 2.1a Support
Key Specification:
Model: SAPPHIRE PULSE AMD Radeon RX 9070 GRE OC
GPU: AMD Radeon RX 9070 GRE
Architecture: AMD RDNA 4
Stream Processors: 3072
Compute Units: 48
Ray Accelerators: 48
AI Accelerators: 96
Boost Clock: Up to 2920MHz
Game Clock: Up to 2340MHz
Infinity Cache: 48MB
Memory Size: 12GB GDDR6
Memory Interface: 192-Bit
Memory Speed: 18Gbps Effective
Interface: PCIe 5.0 x16
Maximum Resolution: 7680 x 4320 (8K)
Maximum Displays: 4
Display Outputs:
Β Β β’ 2 x HDMI 2.1b
Β Β β’ 2 x DisplayPort 2.1a
BIOS Support: UEFI
Gaming Resolution: Optimized for 1440p
Cooling System:
Β Β β’ SAPPHIRE Dual-X Cooling
Β Β β’ AeroCurve Fan Blades
Β Β β’ Free Flow Airflow Design
Β Β β’ Honeywell PTM7950 Thermal Interface Material
Β Β β’ Optimized Composite Heatpipes
Β Β β’ Integrated Cooling Module
Β Β β’ Dual Ball Bearing Fans
Β Β β’ Intelligent Fan Control
Build Features:
Β Β β’ Metal Backplate with FrameDefense
Β Β β’ High TG Copper PCB
Β Β β’ 14-Phase Digital Power Design
Β Β β’ Fuse Protection
AMD Technologies:
Β Β β’ AMD FidelityFX Super Resolution 4 with AI Upscaling
Β Β β’ AMD HYPR-RX with Fluid Motion Frames 2
Β Β β’ AMD Radeon Anti-Lag 2
Β Β β’ AMD FreeSync
Β Β β’ AMD Radiance Display Engine
Β Β β’ DirectX 12 Ultimate
SAPPHIRE Software: TriXX / TriXX Boost
Form Factor: ATX (2.5-Slot)
Power Consumption: 240W (Typical Board Power)
Recommended Power Supply: 650W Minimum
Power Connectors: 2 x 8-Pin PCIe
System Memory Requirement: 8GB Minimum / 16GB Recommended
Operating System: Windows 10 / Windows 11 / Linux (64-Bit)
Dimensions (L x W x H): 280 x 120.25 x 51.5 mm
Warranty: 3 Years Warranty
