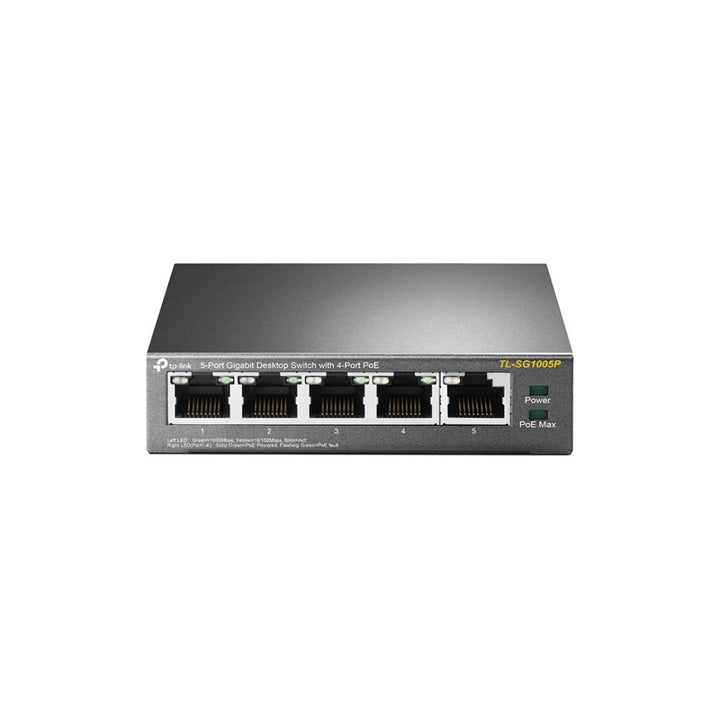

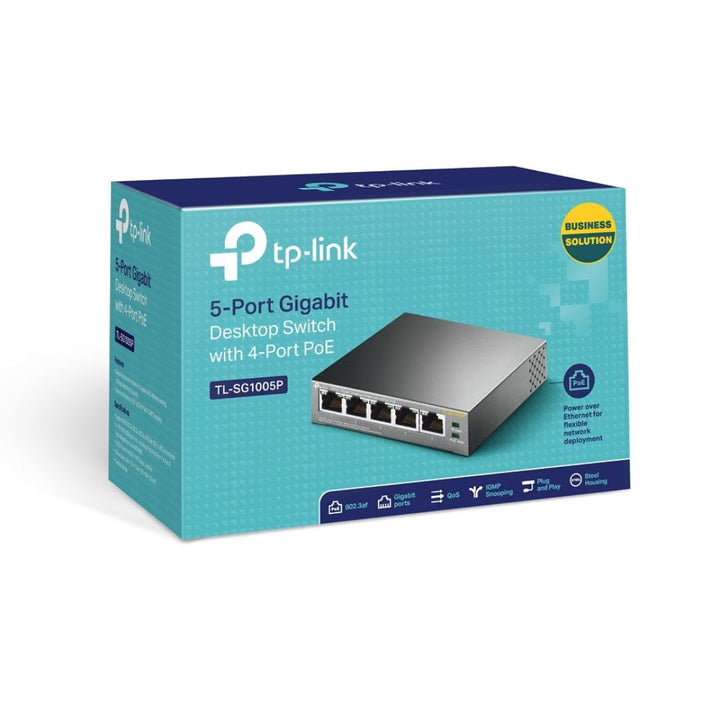

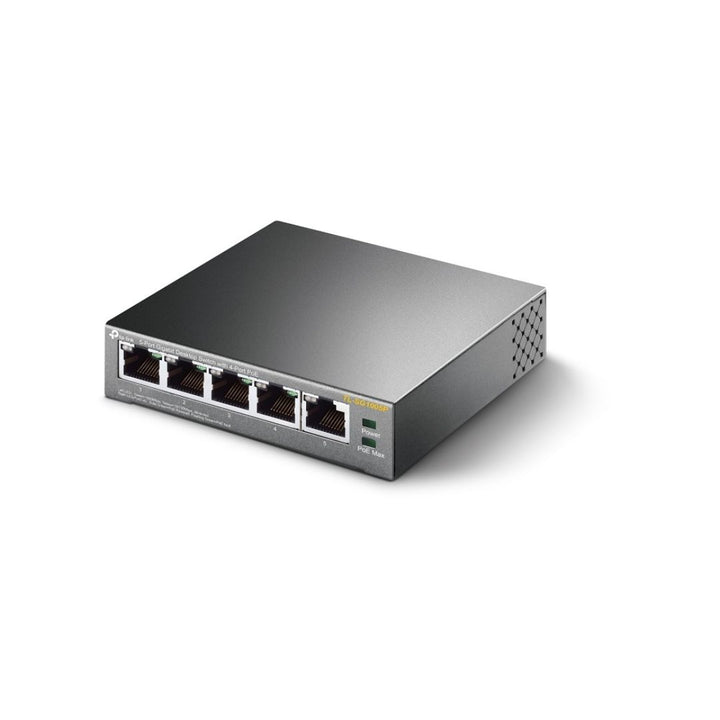

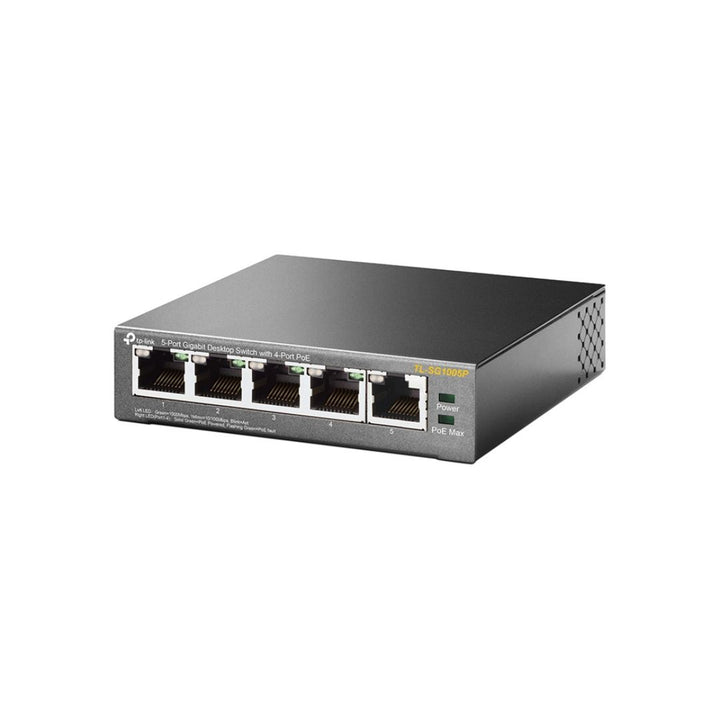

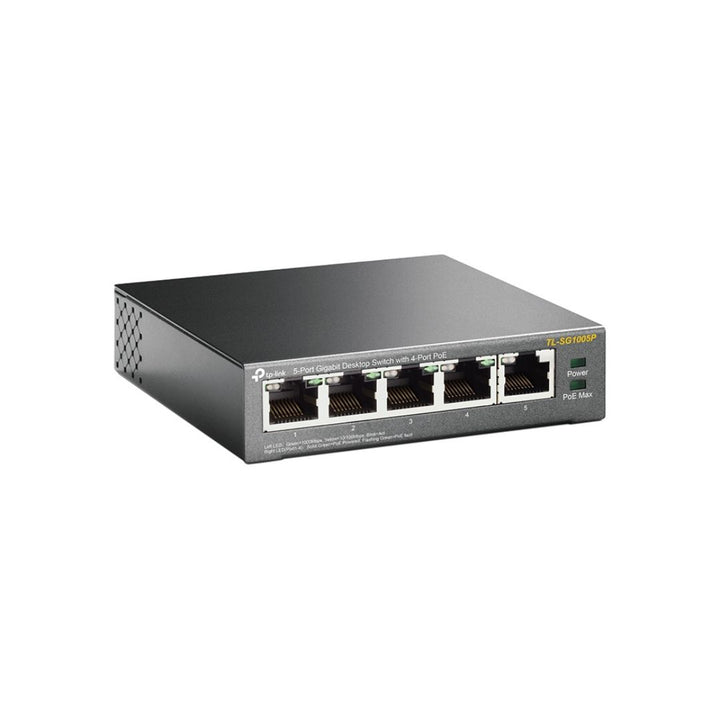

5-Port Gigabit Desktop Switch with 4-Port PoE
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
| HARDWARE FEATURES | |
|---|---|
| Interface | 5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Ports (RJ45) | Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 56W |
| Backbound Bandwidth | 10Gbps |
| Mac Address Table | 2K |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
| Max Power Consumption | 3.95W(220/50Hz. no PD connected) 64.44W(220/50Hz. with 56W PD connected) |
| Max Heat Dissipation | 13.48BTU/h(no PD connected) 219.87BTU/h(with 56W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transfer Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1005P, Power Adapter, Installation Guide |
| Consumption | 4.26 watts (max. no PD connected) 63.31 watts (max. with 56w PD connected) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
